Tractor · 2009Unverified

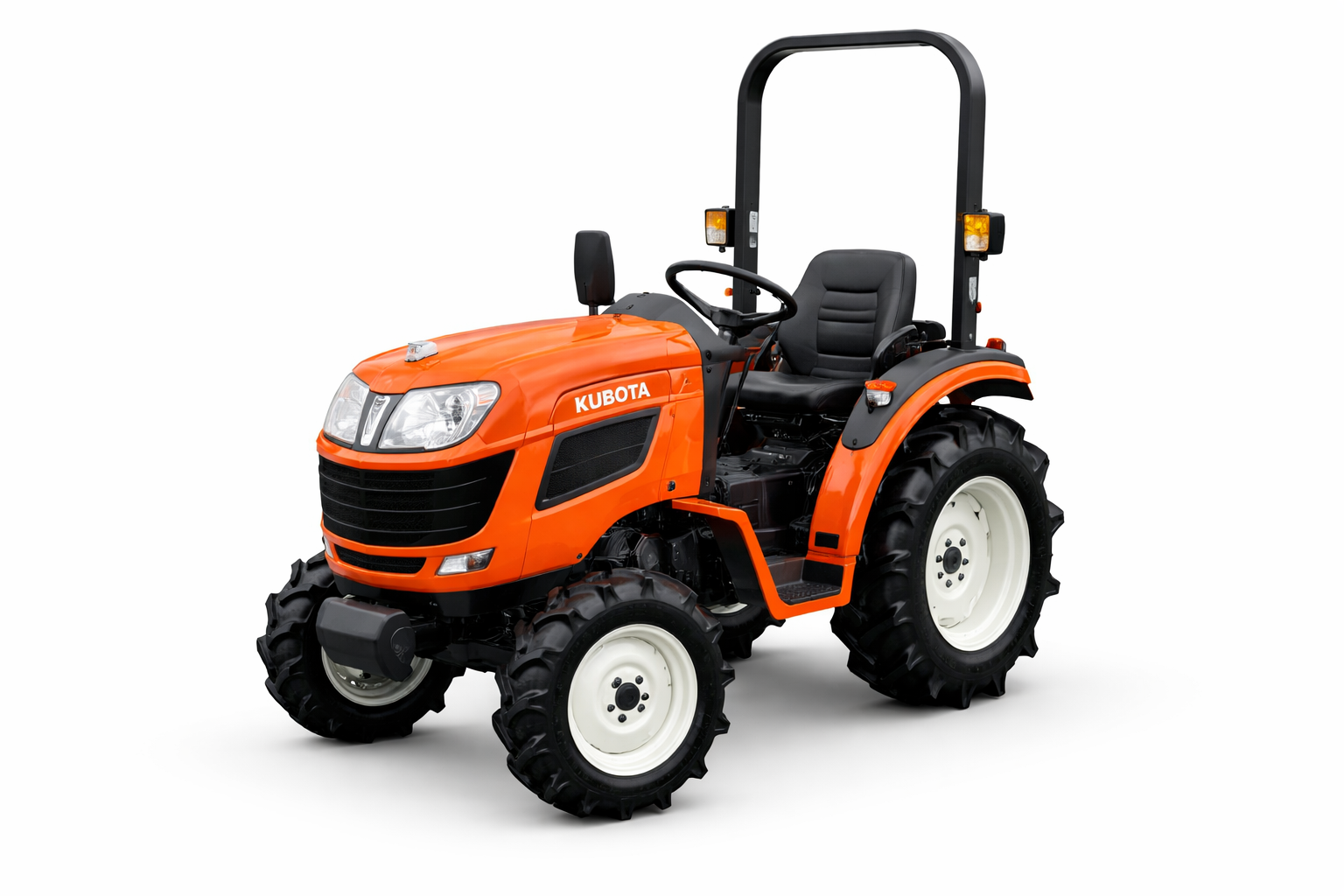

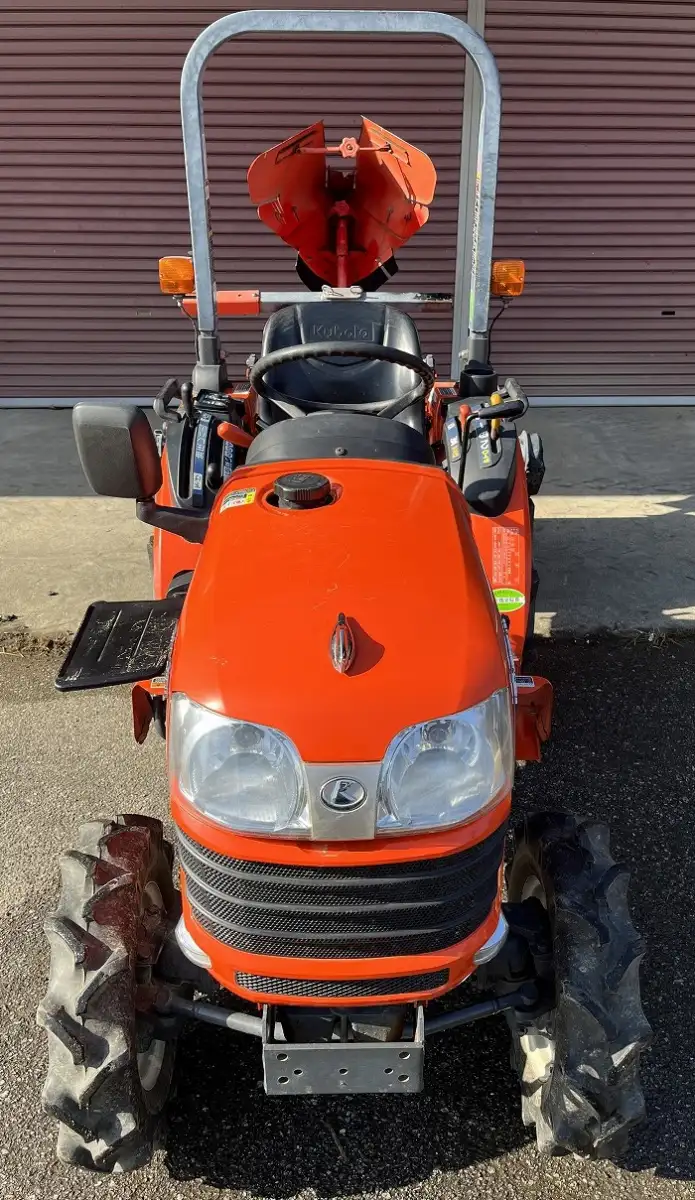

Kubota JB19X
Kubota JB19X — JB Bullstar Extra Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
575 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
JB19XwheeledReference
JB19X-PChalf-trackReference
Engine
Kubota 1.0L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine14.0 kWReference
Kubota D1005Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 74 mmReference
Power14.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO540 (1.375)Reference
Rear PTO Type551:2600Reference
Rear PTO Type967:2600Reference
Dimensions
Wheelbase127 cmReference
Weight575 kgReference
Front tire5.00-12Reference
Rear tire8-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8-18Reference
Length204 cmReference
Width97 cmReference
Height183 cmReference
Ground clearance28 cmReference
Front tread74 cmReference
Rear tread72/76 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
