Tractor · 2008Unverified

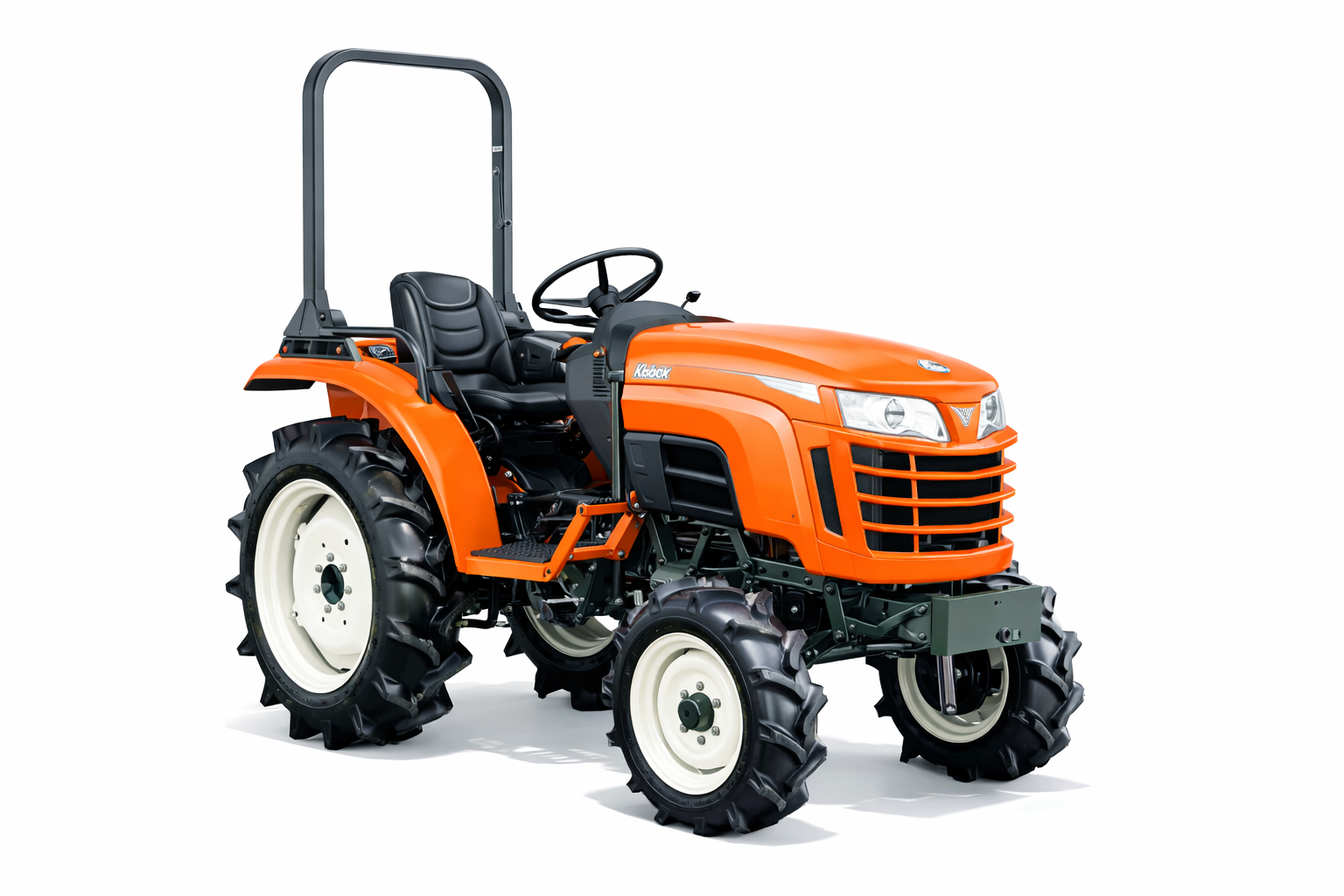

Kubota KB165

Name: Kubota KB165
Brand: Kubota

Kubota KB165 — KB Kingbull Series · 16 hp. Reference specifications; pending source verification.

The Kubota KB165 is a tractor model with a rated power of 16 hp, categorised as a lighter model within its class. It was manufactured between 2008 and 2009. The tractor features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. It has an operating weight of 1521 to 1576 pounds, making it suitable for operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

1521 to 1576 pounds

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

16 hp

Recorded weight

689 kg

Transmissions

9-speed

Production years

2008-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine12.1 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power12.1 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speedReference

36-speed power shiftReference

Gear Weight689 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

Wheelbase135 cmReference

Weight1521 to 1576 poundsReference

Front tire6-12Reference

Rear tire8.3-20Reference

Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference

Length231 cmReference

Width107 cmReference

Height (ROPS)186 cmReference

Glideshift Weight714 kgReference

Ground clearance33 cmReference

Front tread88 cmReference

Rear tread81/89 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
