Tractor · 2009Unverified

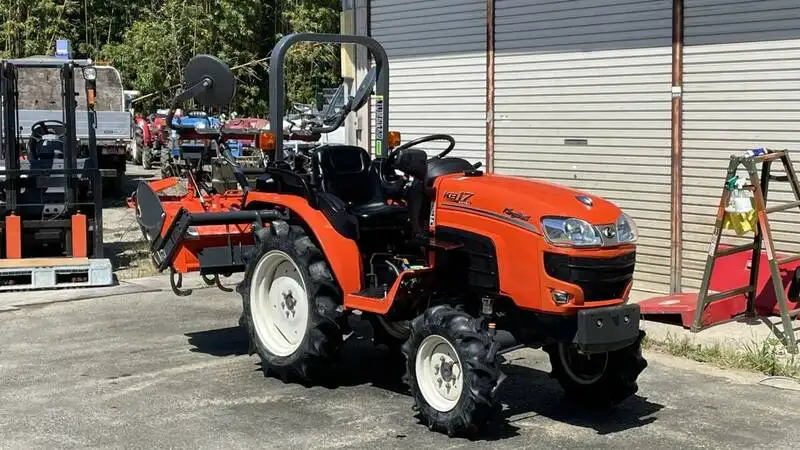

Kubota KB17X

Name: Kubota KB17X
Brand: Kubota

Kubota KB17X — KB Kingbull Extra Series · 17 hp. Reference specifications; pending source verification.

The Kubota KB17X is a tractor with a rated power of 17 hp, categorising it as a lighter model within its class. Manufactured from 2009 to 2014, the KB17X features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system with a powershift transmission. Its operating weight ranges from 1521 to 1576 pounds, making it suited to operational areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Max power

16.8 hp

Weight

1521 to 1576 pounds

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

17 hp

Recorded weight

689 kg

Transmissions

9-speed

Production years

2009-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Engine

Kubota 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine12.5 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power12.5 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke2.99x2.90 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speedReference

36-speed power shiftReference

Gear Weight689 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

Transmission TypePowershiftReference

forward and reverse options9 F and 9 R | Power Shift : 36 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

Wheelbase135 cmReference

Weight1521 to 1576 poundsReference

Front tire6-12Reference

Rear tire8.3-20Reference

Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference

Length231 cmReference

Width107 cmReference

Height (ROPS)186 cmReference

Glideshift Weight714 kgReference

Ground clearance33 cmReference

Front tread88 cmReference

Rear tread81/89 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity61.1 ciReference

Power

Max Power16.8 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,182@2,600 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category 0Reference

Dimensions & weight

Height Over ROPS186.9 cmReference

Overall Length231.9 cmReference

Overall Width107.4 cmReference

Overall weight714.9 kgReference

Wheels & tyres

Rear Wheel TypeAg: 8.3-20Reference

Rear wheel tread range89.9 cmReference

Front Wheel TypeAg: 6-12.Reference

Front Wheel tread range88.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
