Tractor · 2008Unverified

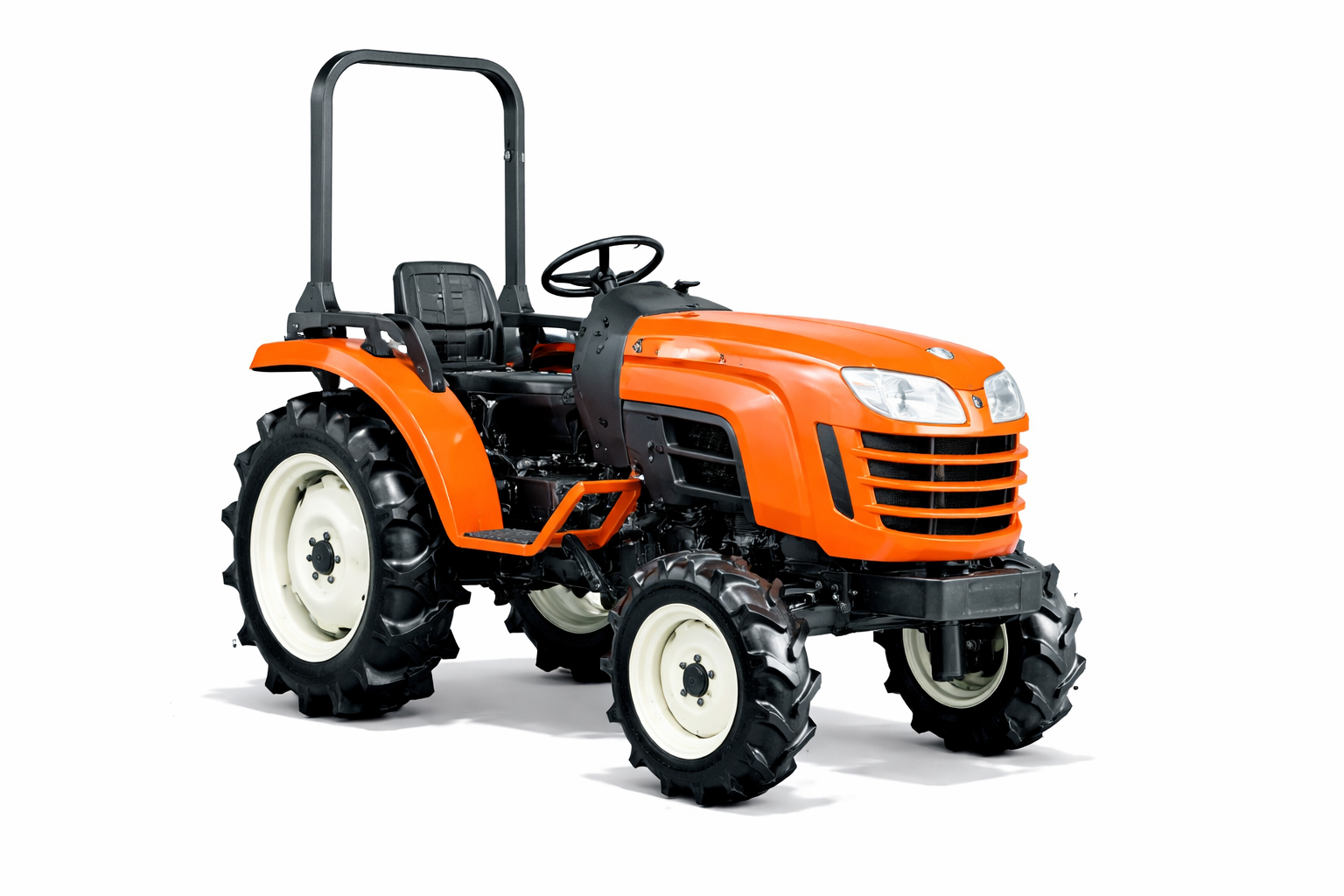

Kubota KB185

Name: Kubota KB185
Brand: Kubota

Kubota KB185 — KB Kingbull Series · 18 hp. Reference specifications; pending source verification.

The Kubota KB185 is a compact tractor rated at 18 hp, featuring a 3-cylinder diesel liquid-cooled engine. It was produced from 2008 to 2009 and is equipped with a powershift transmission and four-wheel drive. The tractor's listed weight ranges from 1532 to 1587 pounds, suitable for tasks on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1532 to 1587 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

18 hp

Recorded weight

694 kg

Transmissions

9-speed

Production years

2008-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Variants

KB185wheeledReference

KB185-PChalf-trackReference

Engine

Kubota 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine13.6 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power13.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speedReference

36-speed power shiftReference

Gear Weight694 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

Wheelbase135 cmReference

Weight1532 to 1587 poundsReference

Front tire6.00-12Reference

Rear tire8.3-22Reference

Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference

Length234 cmReference

Width104 cmReference

Height (ROPS)189 cmReference

Glideshift Weight719 kgReference

Ground clearance35 cmReference

Front tread85 cmReference

Rear tread81/89 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
