Tractor · 2009Unverified

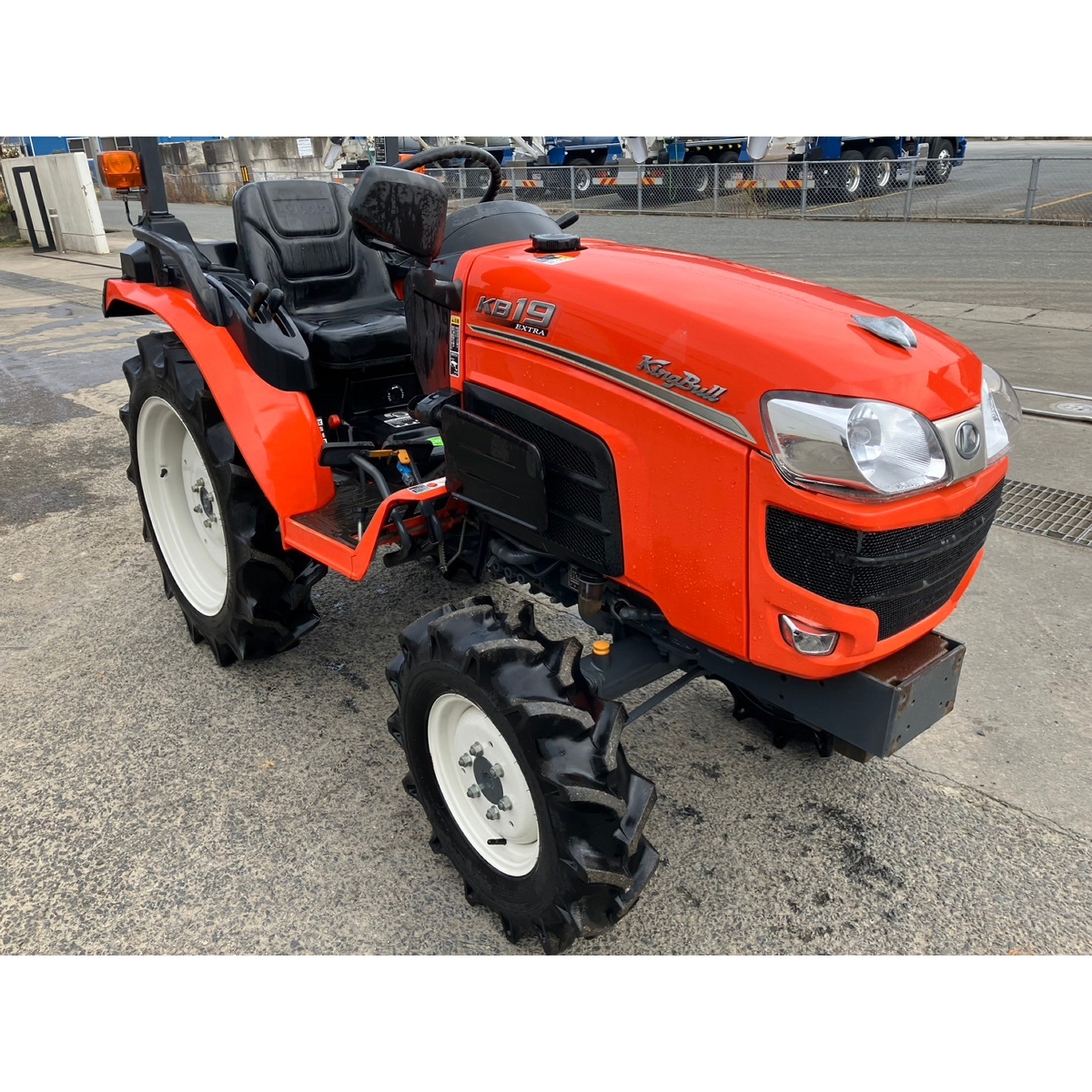

Kubota KB19X

Name: Kubota KB19X
Brand: Kubota

Kubota KB19X — KB Kingbull Extra Series · 19 hp. Reference specifications; pending source verification.

The Kubota KB19X is a tractor model with a rated power output of 19 hp, positioning it at the lower end of its class. Manufactured from 2009 to 2014, the KB19X is equipped with a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system featuring a powershift transmission. Its operating weight is listed as 1532 to 1587 pounds. It is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Max power

18.8 hp

Weight

1532 to 1587 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

19 hp

Recorded weight

694 kg

Transmissions

9-speed

Production years

2009-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Variants

KB19XwheeledReference

KB19X-PChalf-trackReference

Engine

Kubota 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine14.0 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power14.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke2.99x2.90 inchesReference

Cooling systemliquid-cooledReference

Transmission

9-speedReference

36-speed power shiftReference

Gear Weight694 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

Transmission TypePowershiftReference

forward and reverse options9 F and 9 R | Power Shift : 36 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

Wheelbase135 cmReference

Weight1532 to 1587 poundsReference

Front tire6.00-12Reference

Rear tire8.3-22Reference

Standard tires (ag)Front: 6.00-12. Rear: 8.3-22Reference

Length234 cmReference

Width104 cmReference

Height (ROPS)189 cmReference

Glideshift Weight719 kgReference

Ground clearance35 cmReference

Front tread85 cmReference

Rear tread81/89 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity61.1 ciReference

Power

Max Power18.8 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,182@2,600 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category 0Reference

Dimensions & weight

Height Over ROPS190 cmReference

Overall Length234.4 cmReference

Overall Width104.9 cmReference

Overall weight719.9 kgReference

Wheels & tyres

Rear Wheel TypeAg : 8.3-22Reference

Rear wheel tread range89.9 cmReference

Front Wheel TypeAg: 6.00-12Reference

Front Wheel tread range85.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
