Tractor · 2009Unverified

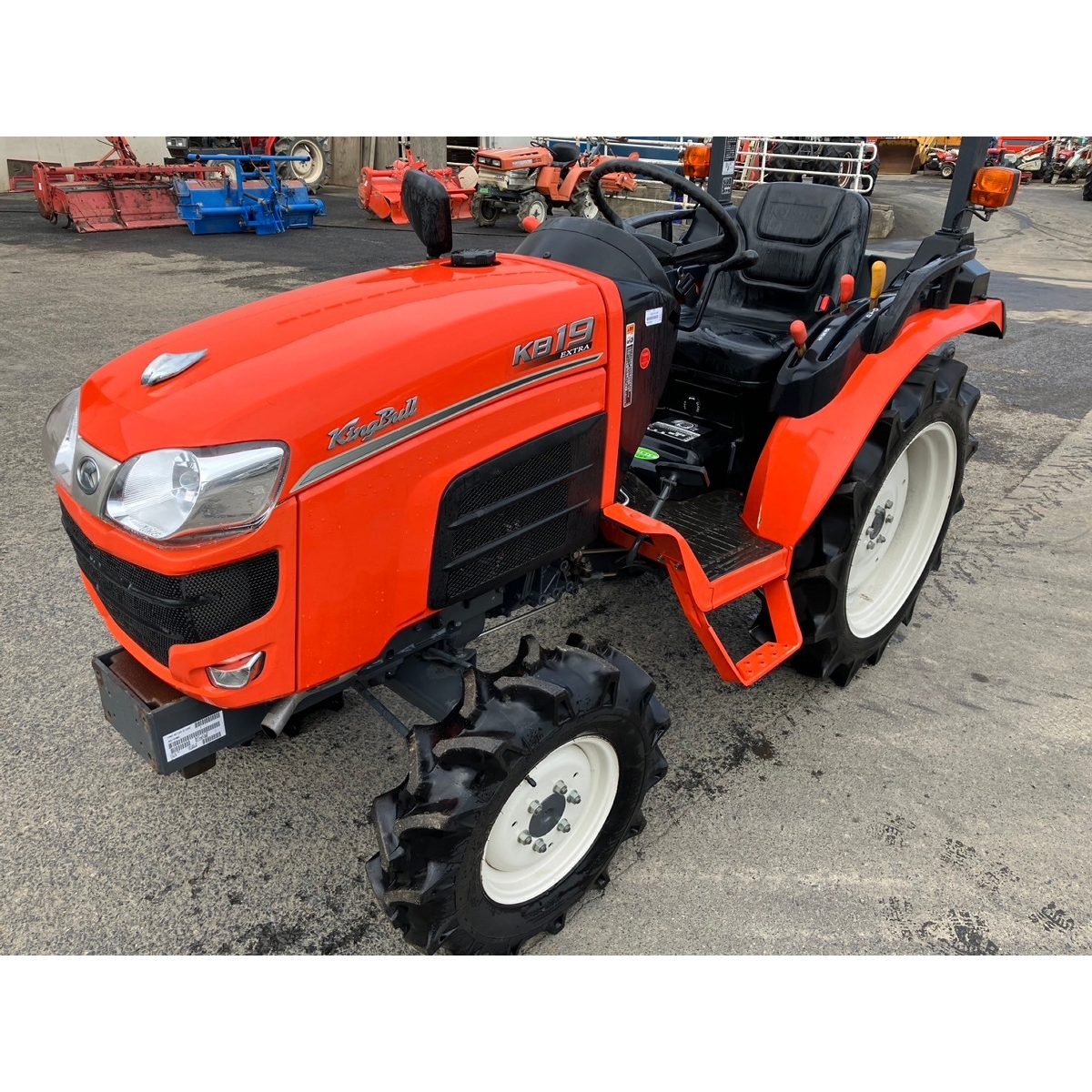

Kubota KB19X-PC

Name: Kubota KB19X-PC
Brand: Kubota

Kubota KB19X-PC — KB Kingbull Extra Series · 19 hp. Reference specifications; pending source verification.

The Kubota KB19X-PC is a tractor with a rated power of 19 hp, positioning it at the lighter end of its class. It was manufactured from 2009 to 2014. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and a powershift transmission. Its operating weight ranges from 1940 to 1962 pounds and is suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

1940 to 1962 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

19 hp

Recorded weight

879 kg

Transmissions

9-speed

Production years

2009-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS.Reference

Variants

KB19XwheeledReference

KB19X-PChalf-trackReference

Engine

Kubota 1.0L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine14.0 kWReference

Kubota D1005Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke76 x 74 mmReference

Power14.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speedReference

36-speed power shiftReference

Gear Weight879 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

Wheelbase135 cmReference

Weight1940 to 1962 poundsReference

Front tire7-16Reference

Rear tiretracksReference

Ag front7-16Reference

Ag rear330mm trackReference

Length236 cmReference

Width125 cmReference

Height (ROPS)197 cmReference

Glideshift Weight889 kgReference

Ground clearance37 cmReference

Front tread94 cmReference

Rear tread92 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
