Tractor · 2005Unverified

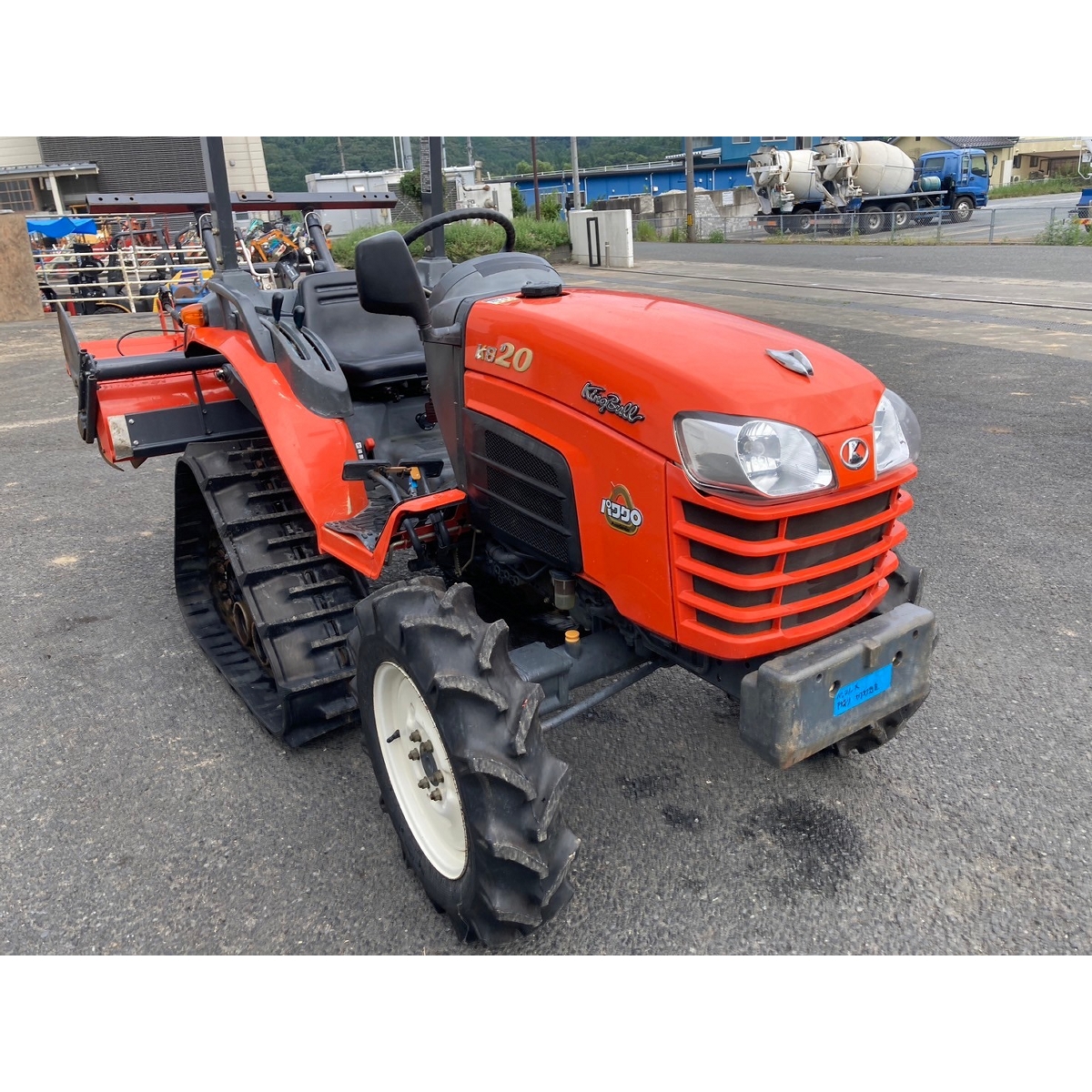

Kubota KB20

Name: Kubota KB20
Brand: Kubota

Kubota KB20 — KB Kingbull Series · 20 hp. Reference specifications; pending source verification.

The Kubota KB20 is a tractor with a rating of approximately 20 hp, positioning it at the lighter end of its class. It was produced from 2005 to 2007. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and features four-wheel drive with a powershift transmission. Its operating weight is listed as between 1554 and 1951 pounds, and it is suitable for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1554 to 1951 pounds

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

20 hp

Transmissions

9-speed

Production years

2005-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.1L 3-cyl dieselReference

ROPS Fuel tank26.9 LReference

Cab Fuel tank21.2 LReference

Engine14.7 kWReference

Kubota D1105Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power14.7 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speedReference

36-speed power shiftReference

ROPS gear704 kgReference

Cab gear860 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

ROPS Wheelbase135 cmReference

Cab Wheelbase136 cmReference

Weight1554 to 1951 poundsReference

Front tire6.00-12Reference

Rear tire9.5-20Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-20Reference

ROPS Length234 cmReference

Cab Length247 cmReference

ROPS Width107 cmReference

Cab Width119 cmReference

Height (ROPS)189 cmReference

Height (cab)196 cmReference

Ground clearance35 cmReference

Front tread84 cmReference

ROPS Rear tread87 cmReference

Cab Rear tread94 cmReference

ROPS Glideshift729 kgReference

Cab Glideshift884 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
