Tractor · 2008Unverified

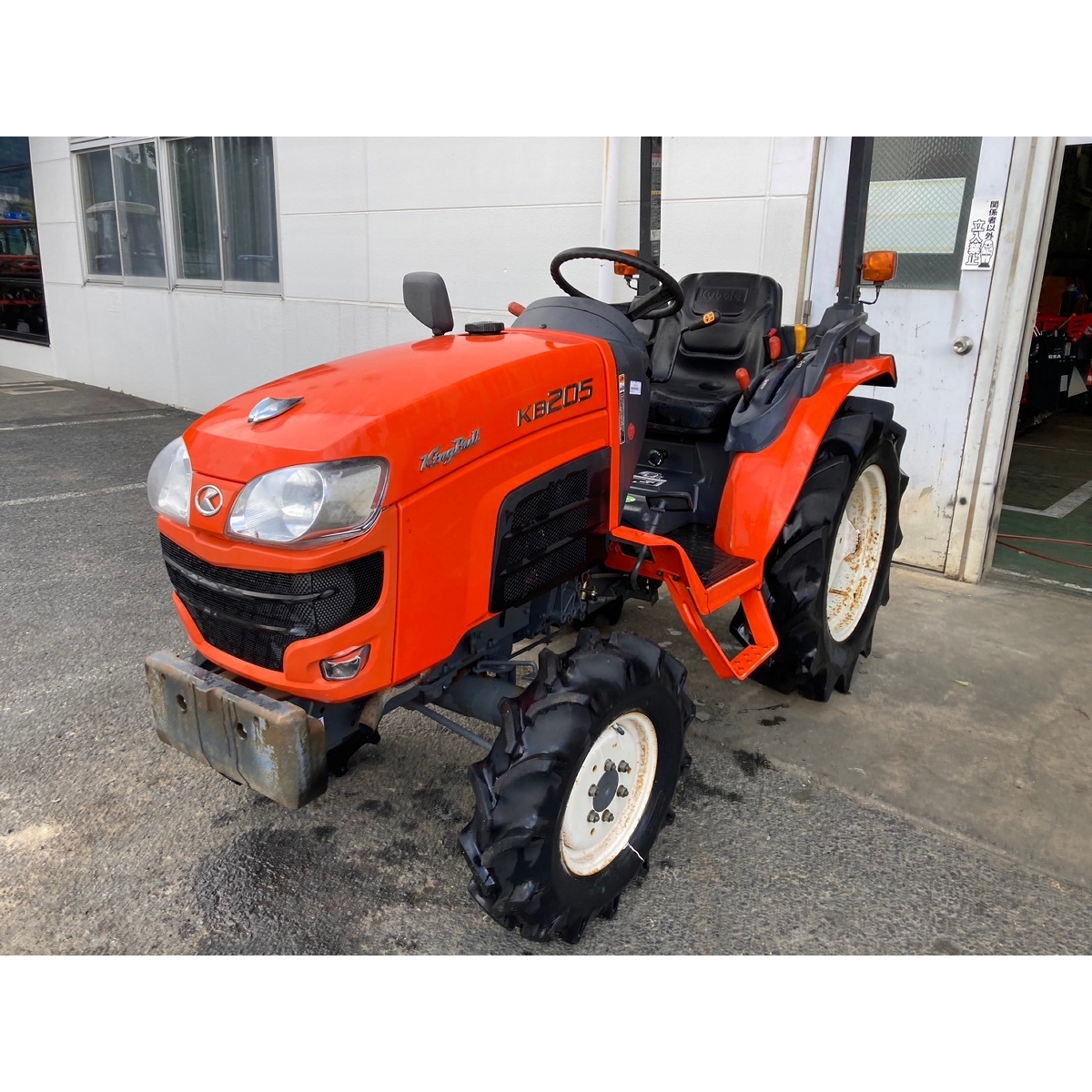

Kubota KB205-PC

Name: Kubota KB205-PC
Brand: Kubota

Kubota KB205-PC — KB Kingbull Series · 20 hp. Reference specifications; pending source verification.

The Kubota KB205-PC is a compact tractor with a rated output of 20 hp, positioned among smaller options in its class. It was produced from 2008 to 2009 and features a 3-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and powershift transmission. The model's listed weight ranges from 1885 to 2282 pounds, and it is suited to tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1885 to 2282 pounds

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

20 hp

Transmissions

9-speed

Production years

2008-2009

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Variants

KB205wheeledReference

KB205-PChalf-trackReference

Engine

Kubota 1.1L 3-cyl dieselReference

Fuel tank14.0 LReference

Engine15.1 kWReference

Kubota D1105Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power15.1 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speedReference

36-speed power shiftReference

ROPS gear855 kgReference

Cab gear1010 kgReference

Gears9 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in three ranges with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears36 forward and 24 reverseReference

Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear Type0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM530@2600Reference

Engine RPM799@2600Reference

Engine RPM1182@2600Reference

Engine RPM-662@2600Reference

Dimensions

ROPS Wheelbase135 cmReference

Cab Wheelbase136 cmReference

Weight1885 to 2282 poundsReference

Front tire6-14Reference

Rear tiretracksReference

Ag front6-14Reference

Ag rear330mm trackReference

Length236 cmReference

Width125 cmReference

Height (ROPS)197 cmReference

Height (cab)202 cmReference

Ground clearance37 cmReference

Front tread102 cmReference

Rear tread92 cmReference

ROPS Glideshift879 kgReference

Cab Glideshift1035 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
