Tractor · 2008Unverified

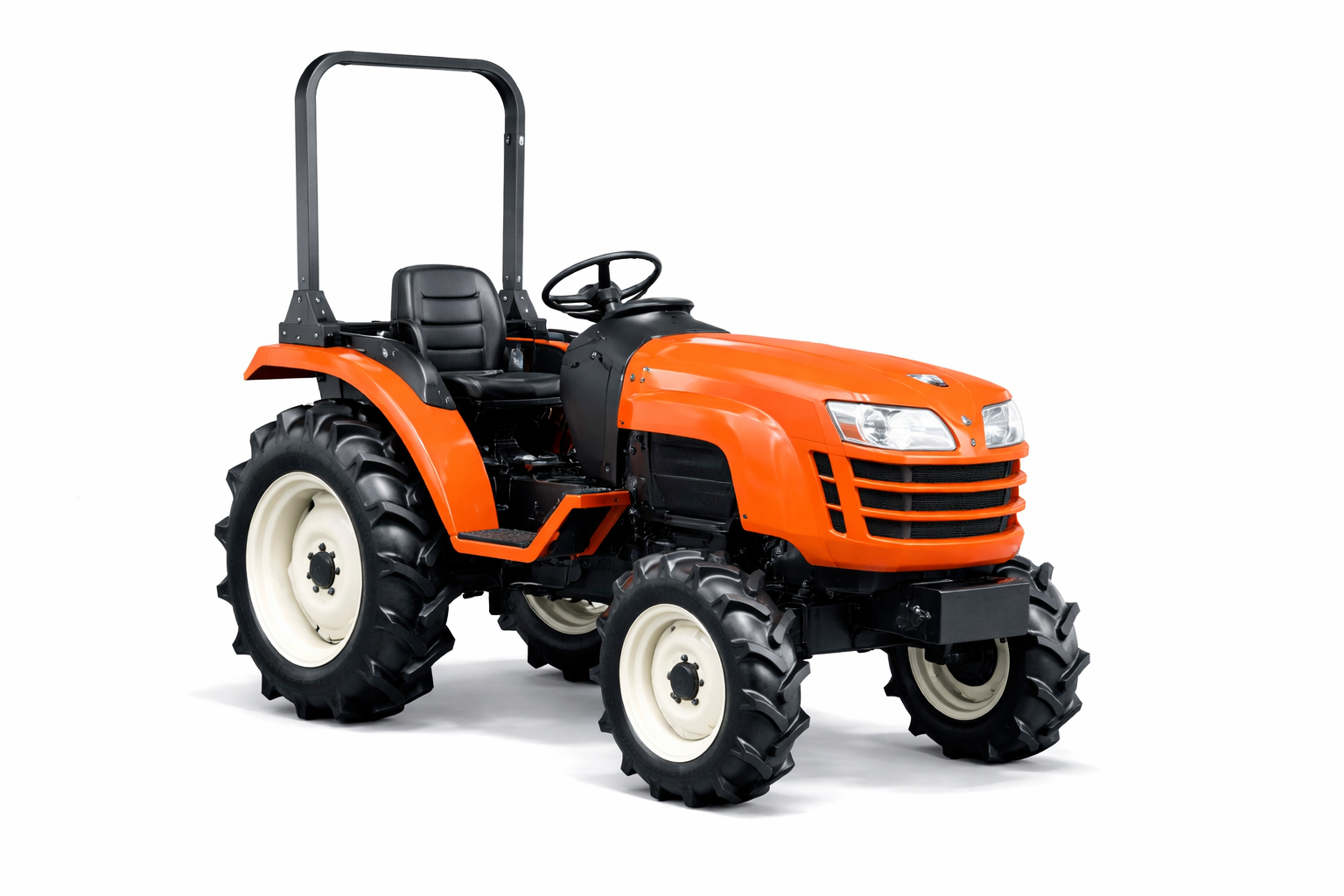

Kubota KB225
Kubota KB225 — KB Kingbull Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1576 to 1973 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KB225wheeledReference
KB225-PChalf-trackReference
Engine
Kubota 1.3L 3-cyl dieselReference
ROPS Fuel tank26.9 LReference
Cab Fuel tank21.2 LReference
Engine16.5 kWReference
Kubota D1305Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke79 x 89 mmReference
Power16.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
36-speed power shiftReference
ROPS gear714 kgReference
Cab gear870 kgReference
Gears9 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in three ranges with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears36 forward and 24 reverseReference
Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM530@2600Reference
Engine RPM799@2600Reference
Engine RPM1182@2600Reference
Engine RPM-662@2600Reference
Dimensions
ROPS Wheelbase135 cmReference
Cab Wheelbase136 cmReference
Weight1576 to 1973 poundsReference
Front tire6-14Reference
Rear tire9.5-22Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
ROPS Length236 cmReference
Cab Length250 cmReference
ROPS Width118 cmReference
Cab Width125 cmReference
Height (ROPS)195 cmReference
Height (cab)199 cmReference
Ground clearance37 cmReference
ROPS Front tread89 cmReference
Cab Front tread98 cmReference
ROPS Rear tread94 cmReference
Cab Rear tread103 cmReference
ROPS Glideshift740 kgReference
Cab Glideshift894 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
