Tractor · 2008Unverified

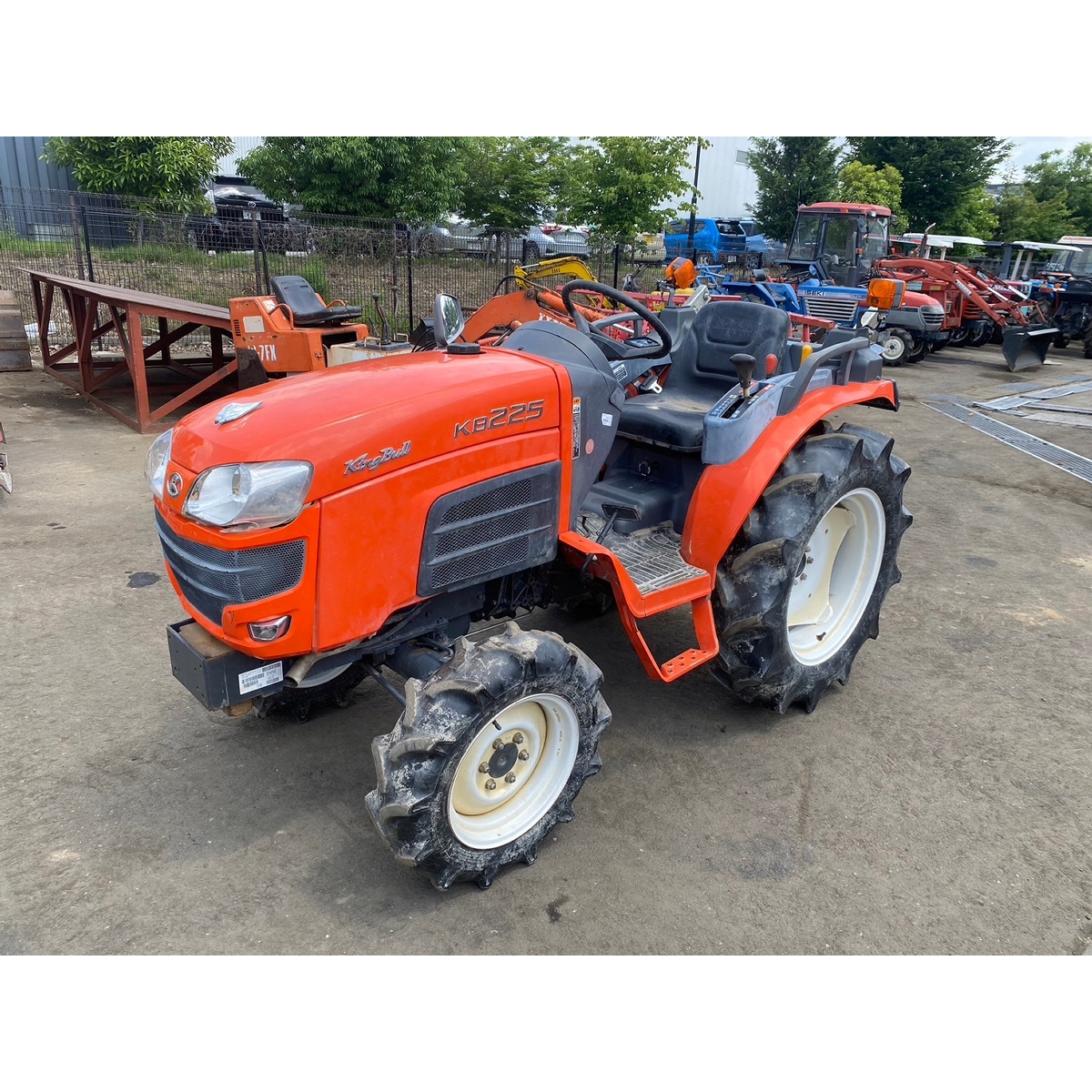

Kubota KB225-PC
Kubota KB225-PC — KB Kingbull Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1907 to 2304 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KB225wheeledReference
KB225-PChalf-trackReference
Engine
Kubota 1.3L 3-cyl dieselReference
Fuel tank14.0 LReference
Engine16.5 kWReference
Kubota D1305Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke79 x 89 mmReference
Power16.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
36-speed power shiftReference
ROPS gear865 kgReference
Cab gear1020 kgReference
Gears9 forward and reverseReference
Clutchdry discReference
Three gears (1-3) in three ranges with shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears36 forward and 24 reverseReference
Sequential hydraulically-shifted transmission. Twelve forward gears with three ranges. Tractor must be stopped, and clutch used, to shift ranges.Reference
PTO & Hydraulics
Rear Type0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM530@2600Reference
Engine RPM799@2600Reference
Engine RPM1182@2600Reference
Engine RPM-662@2600Reference
Dimensions
ROPS Wheelbase135 cmReference
Cab Wheelbase136 cmReference
Weight1907 to 2304 poundsReference
Front tire6-14Reference
Rear tiretracksReference
Ag front6-14Reference
Ag rear330mm trackReference
Length236 cmReference
Width125 cmReference
Height (ROPS)197 cmReference
Height (cab)202 cmReference
Ground clearance37 cmReference
Front tread102 cmReference
Rear tread92 cmReference
ROPS Glideshift889 kgReference
Cab Glideshift1045 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
