Tractor · 1999Unverified

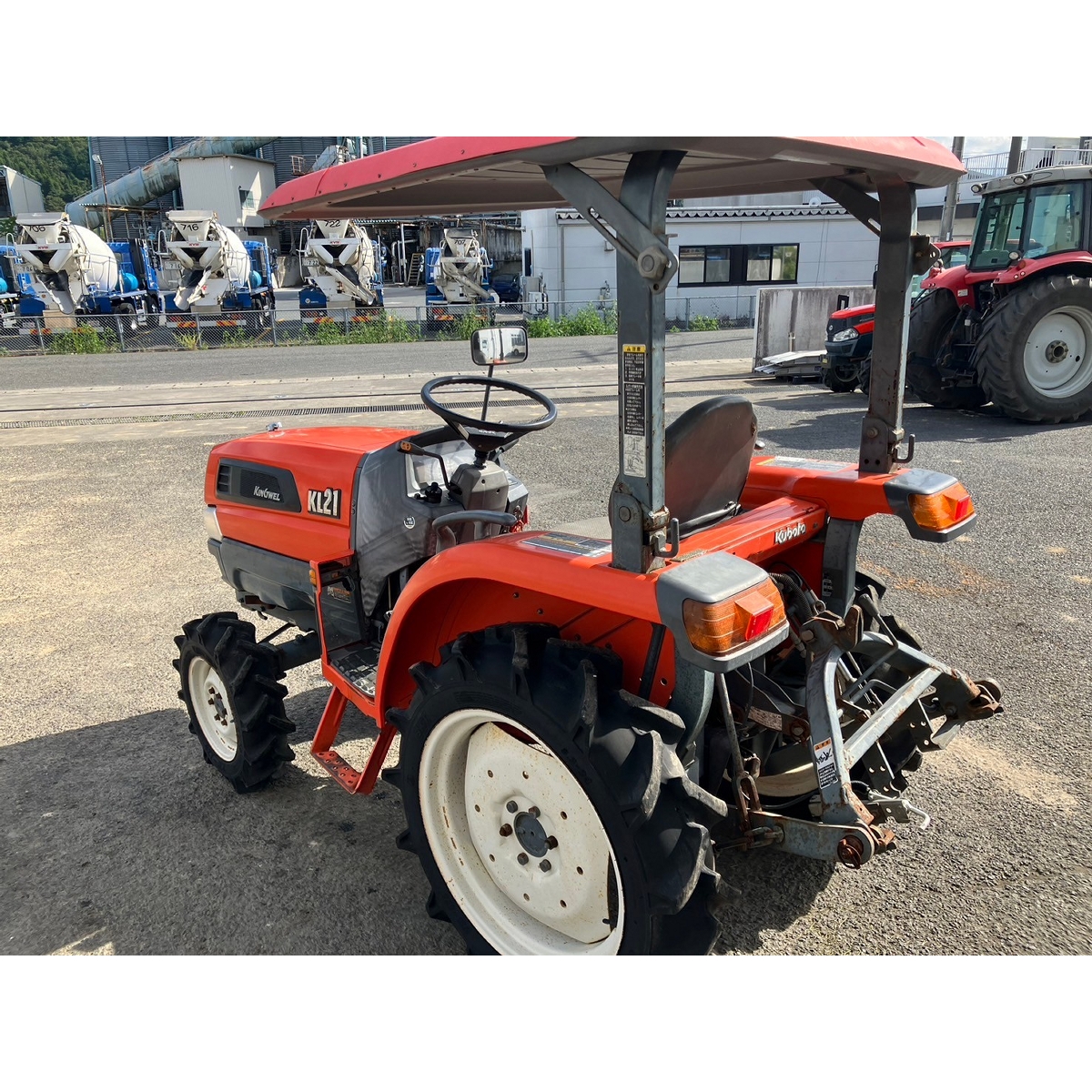

Kubota KL21
Kubota KL21 — KL Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
2840 to 2877 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.4L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine15.4 kWReference
Kubota D1403Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke79 x 91 mmReference
Power15.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference
Eight gears in two ranges (creeper and high) with shuttle shift.Reference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2600Reference
Engine RPM795@2600Reference
Engine RPM985@2600Reference
Engine RPM1313@2600Reference
Engine RPM-985@2600Reference
Dimensions
ROPS Wheelbase154 cmReference
Cab Wheelbase160 cmReference
Weight2840 to 2877 poundsReference
Front tire6-14Reference
Rear tire8.3-24Reference
Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference
ROPS Length296 cmReference
Cab Length301 cmReference
Width121 cmReference
Height (ROPS)195 cmReference
Height (cab)197 cmReference
ROPS Weight1288 kgReference
Cab Weight1305 kgReference
Ground clearance33 cmReference
Front tread94 cmReference
Rear tread101/113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
