Tractor · 2006Unverified

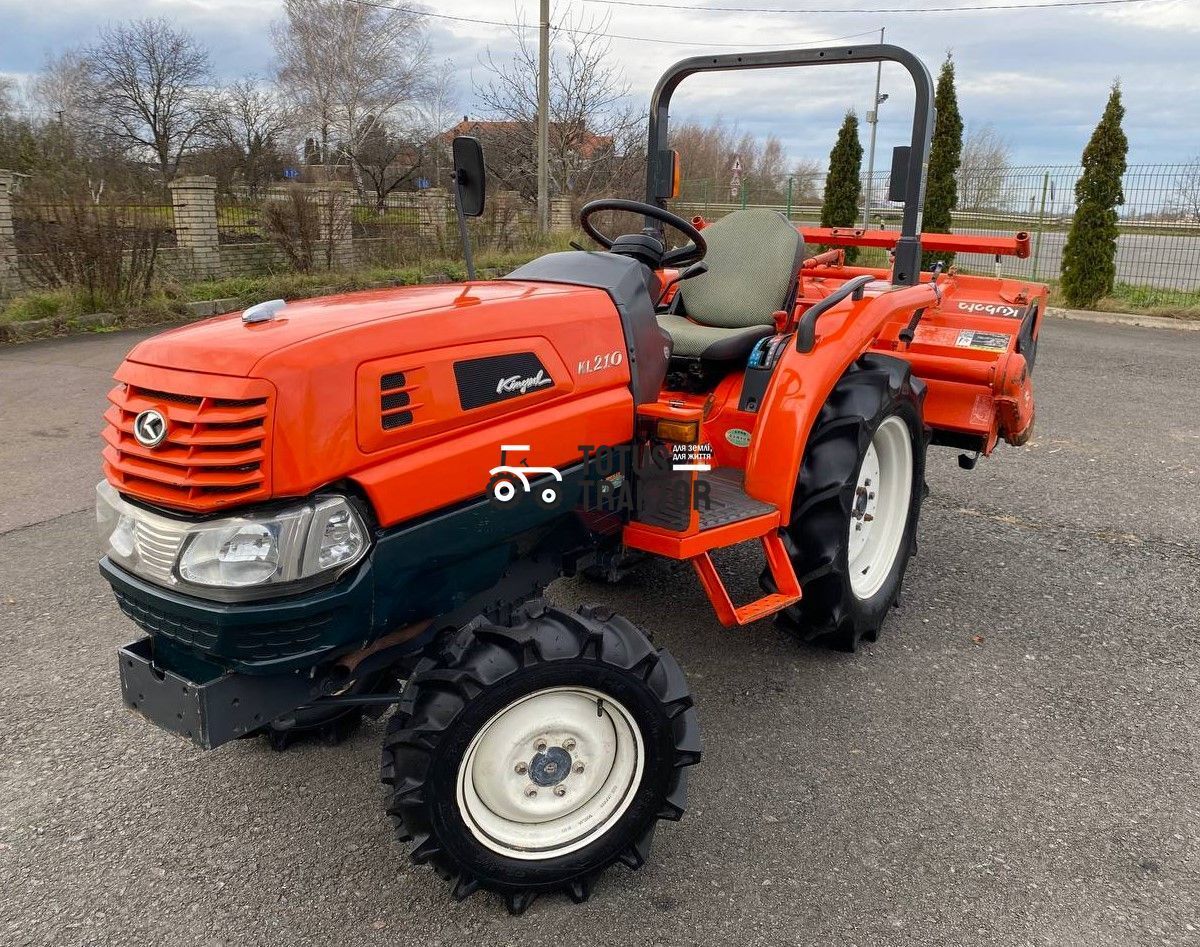

Kubota KL210

Name: Kubota KL210
Brand: Kubota

Kubota KL210 — KL Series · 21 hp. Reference specifications; pending source verification.

The Kubota KL210 is a compact tractor with a rated output of 21 hp. It was manufactured between 2006 and 2007. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, which is connected to a 16-speed gearbox and powers four-wheel drive. The listed weight of the Kubota KL210 is approximately 2480 to 2921 pounds, making it suitable for tasks involving around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

2480 to 2921 pounds

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

21 hp

Recorded weight

1124 kg

Transmissions

16-speed

Production years

2006-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Variants

KL210standardReference

KL210Hhigh-speedReference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine15.4 kWReference

Kubota D1403Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke79 x 91 mmReference

Power15.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

24-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference

Eight gears in two ranges (creeper and high) with shuttle shift.Reference

Gears24 forward and 16 reverseReference

Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM564@2600Reference

Engine RPM795@2600Reference

Engine RPM985@2600Reference

Engine RPM1313@2600Reference

Engine RPM-985@2600Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase160 cmReference

Weight2480 to 2921 poundsReference

Front tire6-14Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

ROPS Length296 cmReference

Cab Length301 cmReference

Width124 cmReference

Height (ROPS)195 cmReference

Height (cab)197 cmReference

ROPS Weight1124 kgReference

Cab Weight1324 kgReference

Ground clearance33 cmReference

Front tread94 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
