Tractor · 1999Unverified

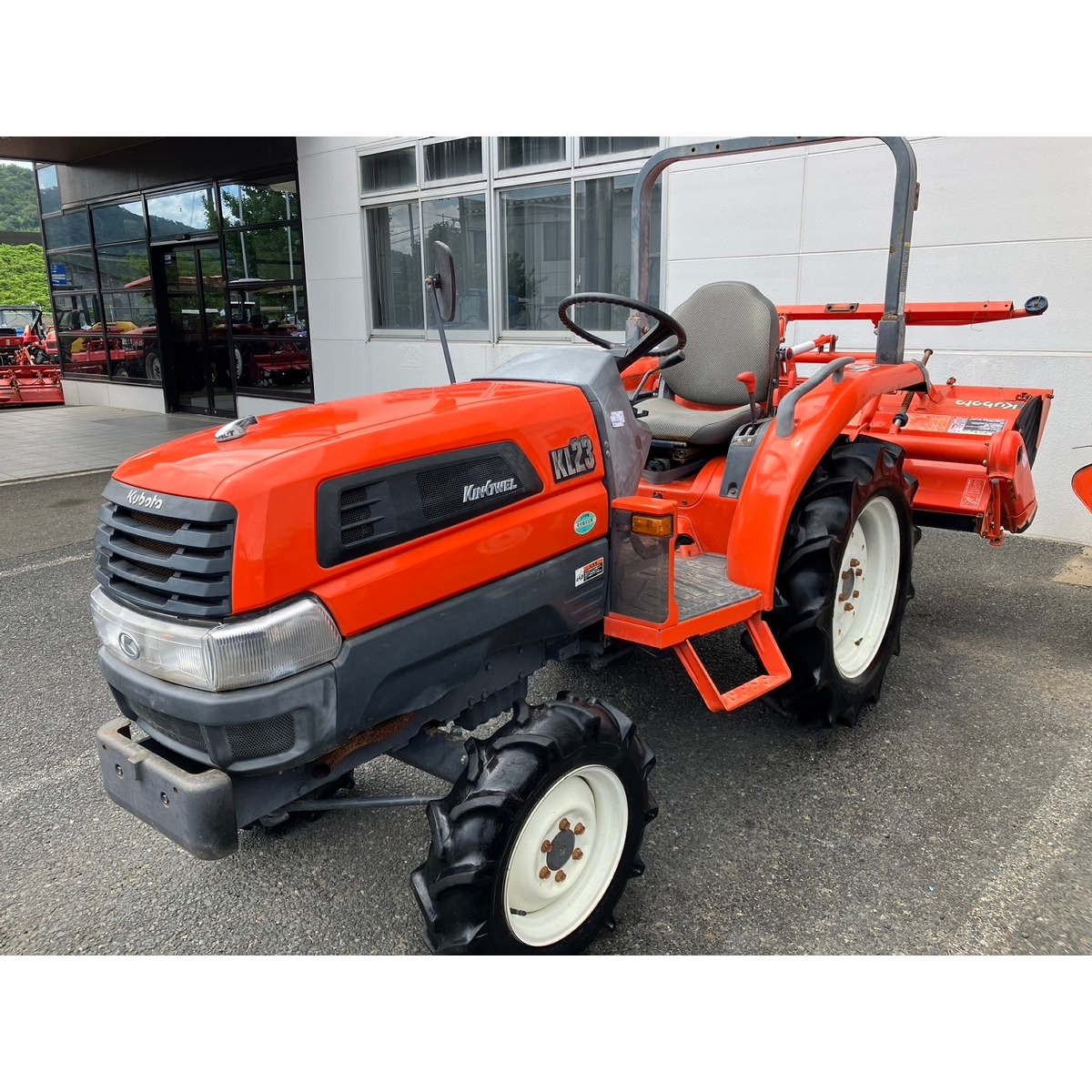

Kubota KL23

Name: Kubota KL23
Brand: Kubota

Kubota KL23 — KL Series · 23 hp. Reference specifications; pending source verification.

The Kubota KL23 is a tractor with an output of approximately 23 hp, which positions it at the lower end of its class in terms of power. It was produced from 1999 to 2005. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a 16-speed gearbox. The tractor's operating weight is listed as 2840 to 2877 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

2840 to 2877 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

23 hp

Recorded weight

1288 kg

Transmissions

16-speed

Production years

1999-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine16.9 kWReference

Kubota D1463Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke82 x 92 mmReference

Power16.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

24-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference

Eight gears in two ranges (creeper and high) with shuttle shift.Reference

Gears24 forward and 16 reverseReference

Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM542@2500Reference

Engine RPM764@2500Reference

Engine RPM947@2500Reference

Engine RPM1263@2500Reference

Engine RPM-947@2500Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase160 cmReference

Weight2840 to 2877 poundsReference

Front tire6-14Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

ROPS Length296 cmReference

Cab Length301 cmReference

Width124 cmReference

Height (ROPS)195 cmReference

Height (cab)197 cmReference

ROPS Weight1288 kgReference

Cab Weight1305 kgReference

Ground clearance33 cmReference

Front tread94 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
