Tractor · 2008Unverified

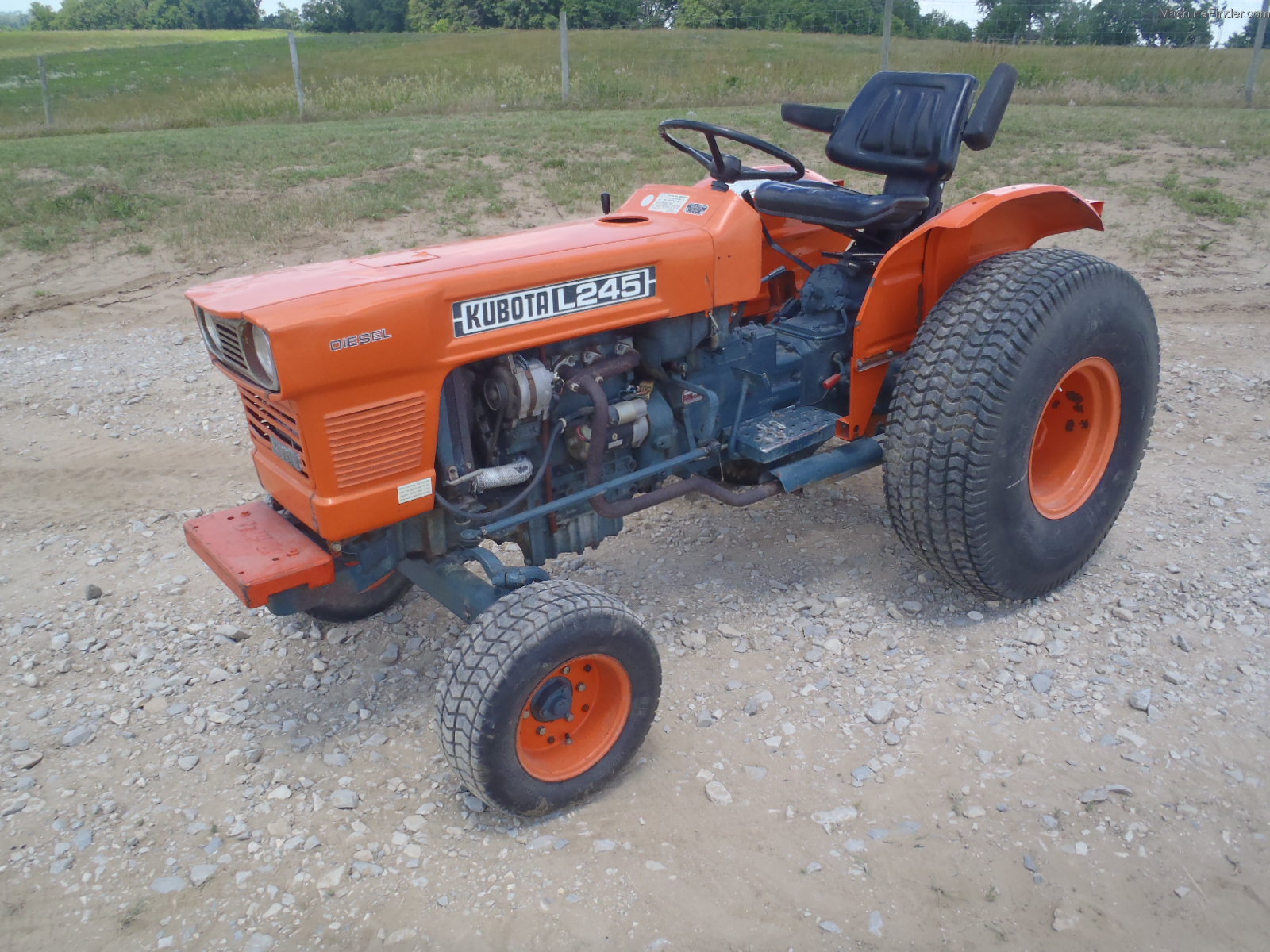

Kubota KL245
Kubota KL245 — KL Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2535 to 3009 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL245standardReference
KL245Hhigh-speedReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine17.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power17.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference
Eight gears in two ranges (creeper and high) with shuttle shift.Reference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@2700Reference
Engine RPM763@2700Reference
Engine RPM945@2700Reference
Engine RPM1260@2700Reference
Engine RPM-945@2700Reference
Dimensions
ROPS Wheelbase154 cmReference
Cab Wheelbase160 cmReference
Weight2535 to 3009 poundsReference
Front tire6-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
ROPS Length296 cmReference
Cab Length301 cmReference
Width124 cmReference
Height (ROPS)199 cmReference
Height (cab)204 cmReference
ROPS Weight1149 kgReference
Cab Weight1364 kgReference
Ground clearance35 cmReference
Front tread97 cmReference
Rear tread101/113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
