Tractor · 2008Unverified

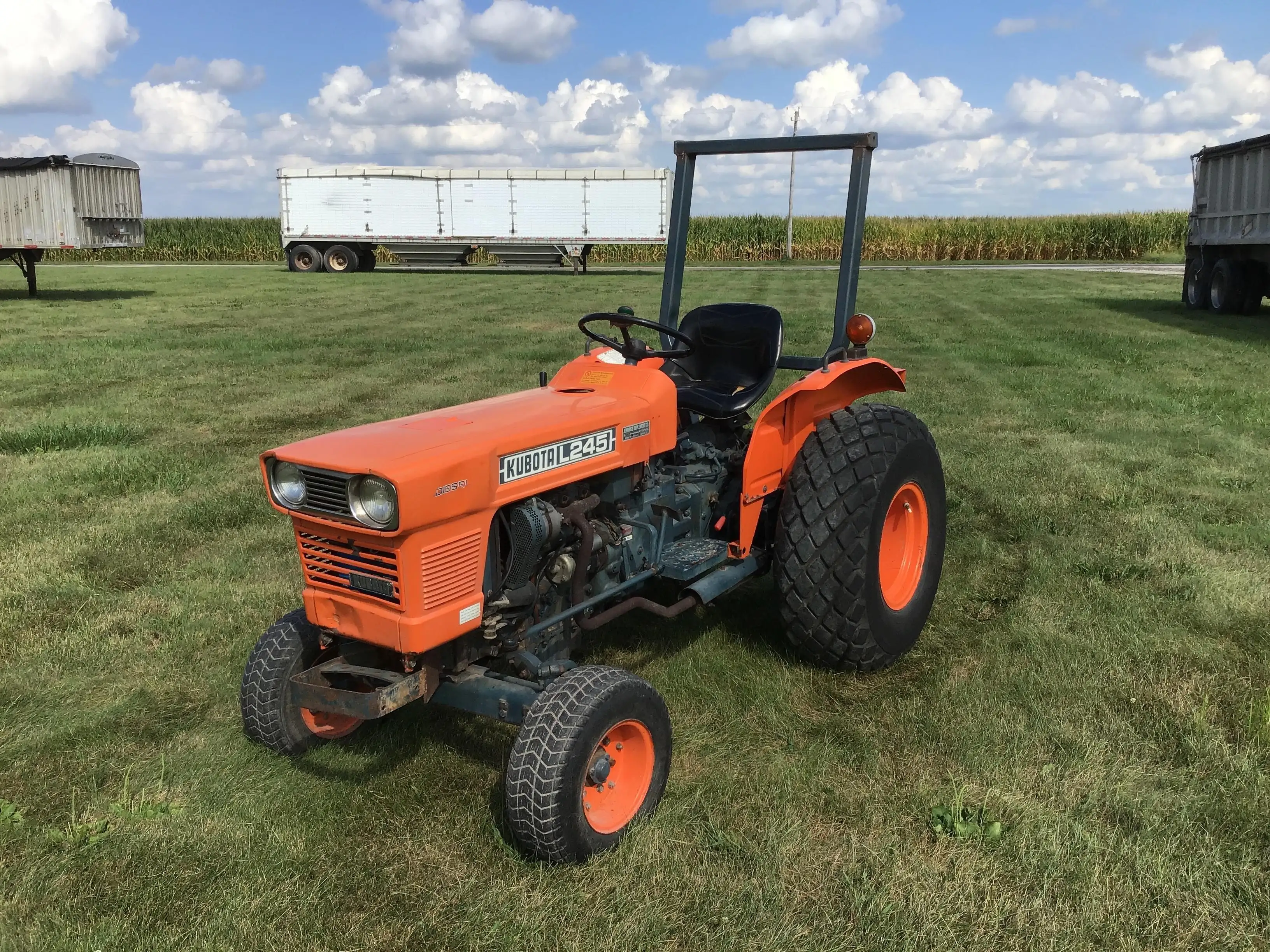

Kubota KL245 Hi-Speed
Kubota KL245 Hi-Speed — KL Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2535 to 3020 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL245standardReference
KL245Hhigh-speedReference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine17.6 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power17.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
30-speedReference
Gears20 forward and reverseReference
Eight gears (1-8) in two low and medium range, with four gears in high-speed range.Reference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@2700Reference
Engine RPM763@2700Reference
Engine RPM945@2700Reference
Engine RPM1260@2700Reference
Engine RPM-945@2700Reference
Dimensions
ROPS Wheelbase154 cmReference
Cab Wheelbase160 cmReference
Weight2535 to 3020 poundsReference
Front tire6-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
ROPS Length296 cmReference
Cab Length301 cmReference
Width124 cmReference
Height (ROPS)199 cmReference
Height (cab)204 cmReference
ROPS Weight1149 kgReference
Cab Weight1369 kgReference
Ground clearance35 cmReference
Front tread94 cmReference
Rear tread101/113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
