Tractor · 2012Unverified

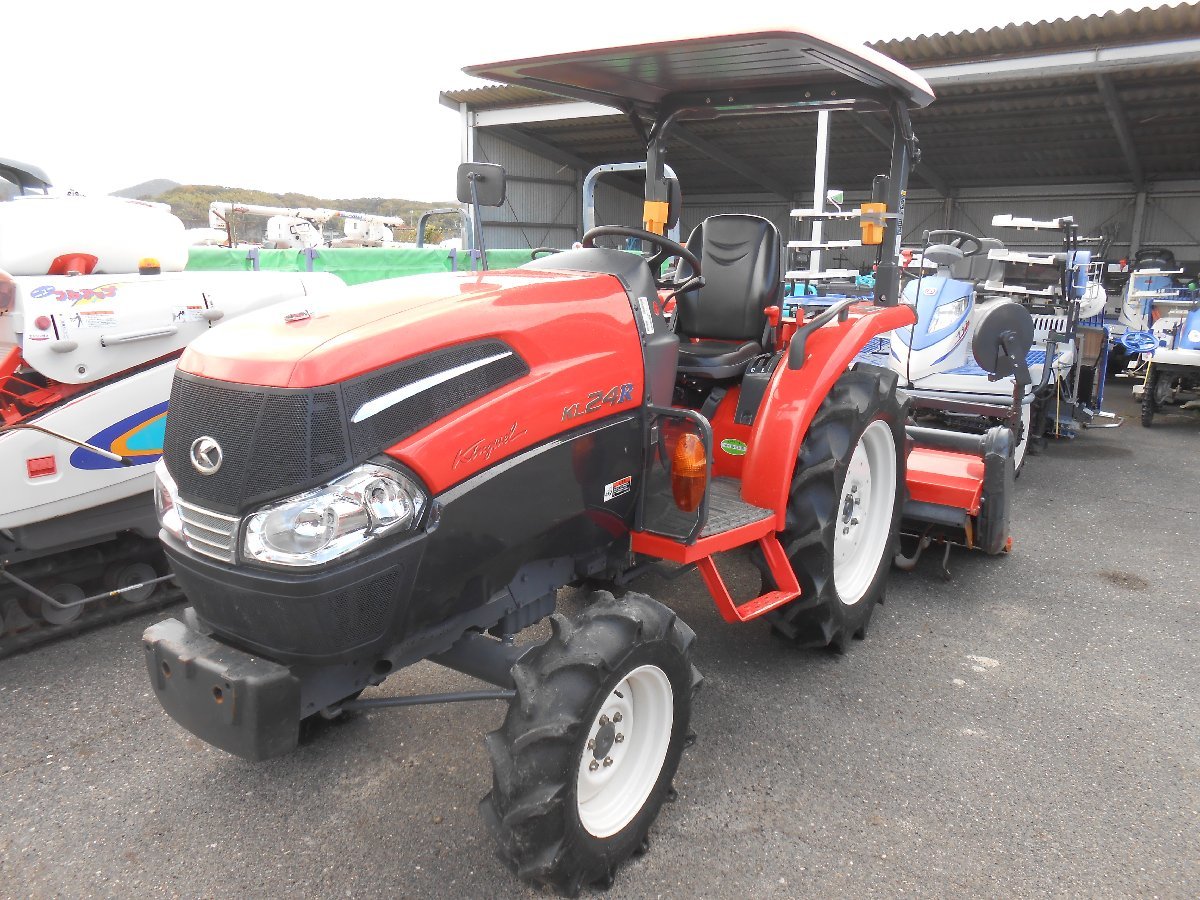

Kubota KL24R

Name: Kubota KL24R
Brand: Kubota

Kubota KL24R — KL Kingwel R Series · 24 hp. Reference specifications; pending source verification.

The Kubota KL24R is a compact tractor with a rated output of 24 hp, suitable for smaller-scale operations. It was manufactured from 2012 to 2015. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a powershift transmission. Its listed weight ranges from 2557 to 3031 pounds, making it suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

23.6 hp

Weight

2557 to 3031 pounds

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

24 hp

Recorded weight

1159 kg

Transmissions

16-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine17.6 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power17.6 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.27x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

16-speed power shiftReference

24-speedReference

30-speedReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Eight hydraulically-shifted gears in two ranges.Reference

Gears24 forward and 16 reverseReference

Twelve hydraulically-shift gears (eight in reverse) in two ranges. Only available on the KL24R with cab.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

Transmission TypePowershiftReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM541@2700Reference

Engine RPM763@2700Reference

Engine RPM945@2700Reference

Engine RPM1260@2700Reference

Engine RPM-945@2700Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase160 cmReference

Weight2557 to 3031 poundsReference

Front tire7-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

ROPS Length296 cmReference

Cab Length301 cmReference

ROPS Width124 cmReference

Cab Width135 cmReference

Height (ROPS)199 cmReference

Height (cab)204 cmReference

ROPS Weight1159 kgReference

Cab Weight1374 kgReference

Ground clearance35 cmReference

Front tread102 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity91.5 ciReference

Power

Max Power23.6 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,260@2,700 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Front Hitch category (SAE designation)Category IReference

Dimensions & weight

Wheelbase160 cmReference

Height Over Cab204.5 cmReference

Height Over ROPS199.1 cmReference

Overall Length301.5 cmReference

Overall Width135.1 cmReference

Overall weight1,159.8 kgReference

Wheels & tyres

Rear Wheel Type9.5-24Reference

Rear wheel tread range113 cmReference

Front Wheel Type45,487Reference

Front Wheel tread range102.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
