Tractor · 1999Unverified

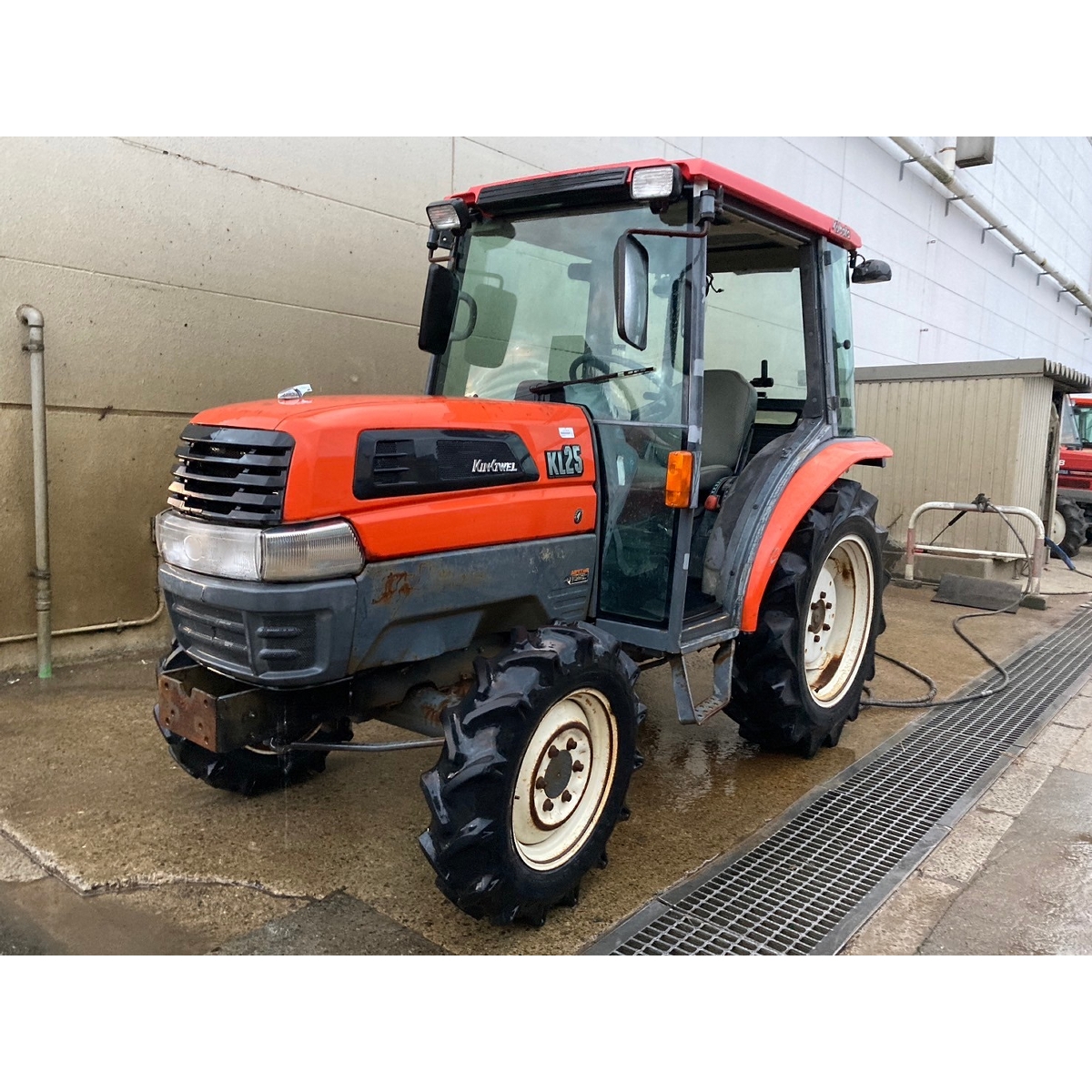

Kubota KL25

Name: Kubota KL25
Brand: Kubota

Kubota KL25 — KL Series · 25 hp. Reference specifications; pending source verification.

The Kubota KL25 is a compact tractor with a rated output of 25 hp, distinguishing it as a smaller option in its class. Produced from 1999 to 2005, it features a 3-cylinder diesel liquid-cooled engine, powering a four-wheel drive system via a 16-speed gearbox. The listed weight of the Kubota KL25 falls within the range of 2535 to 2932 pounds, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2535 to 2932 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

25 hp

Recorded weight

1149 kg

Transmissions

16-speed

Production years

1999-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank26.9 LReference

Engine18.4 kWReference

Kubota D1463Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke82 x 92 mmReference

Power18.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

24-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference

Eight gears in two ranges (creeper and high) with shuttle shift.Reference

Gears24 forward and 16 reverseReference

Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Engine RPM762@2600Reference

Engine RPM944@2600Reference

Engine RPM1258@2600Reference

Engine RPM-944@2600Reference

Dimensions

ROPS Wheelbase154 cmReference

Cab Wheelbase160 cmReference

Weight2535 to 2932 poundsReference

Front tire6-14Reference

Rear tire9.5-24Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference

ROPS Length296 cmReference

Cab Length301 cmReference

Width124 cmReference

Height (ROPS)199 cmReference

Height (cab)199 cmReference

ROPS Weight1149 kgReference

Cab Weight1329 kgReference

Ground clearance35 cmReference

Front tread94 cmReference

Rear tread101/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
