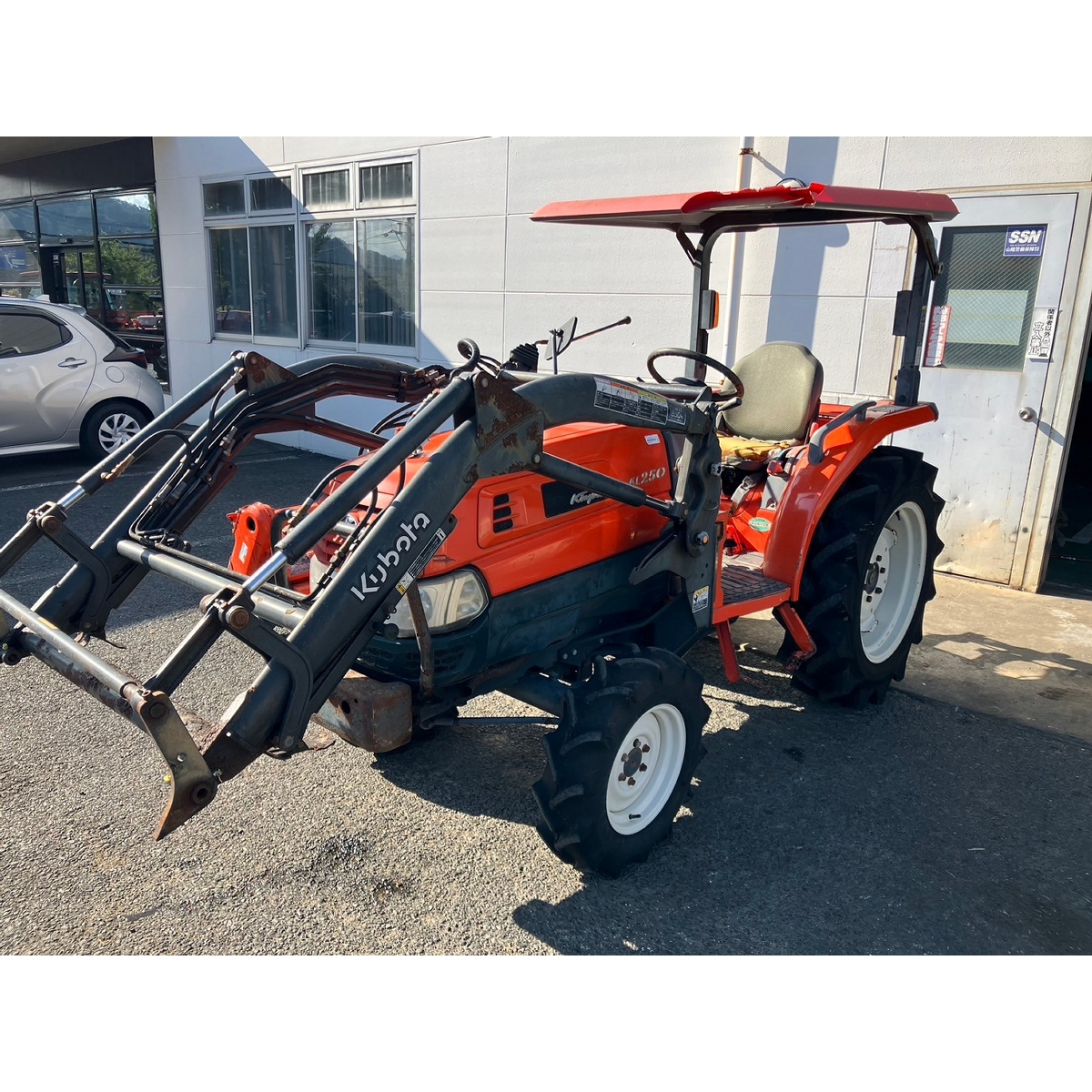

Kubota KL250
Kubota KL250 — KL Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2646 to 3042 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL250standardReference
KL250Hhigh-speedReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.4 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power18.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference
Eight gears in two ranges (creeper and high) with shuttle shift.Reference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2600Reference
Engine RPM944@2600Reference
Engine RPM1258@2600Reference
Engine RPM-944@2600Reference
Dimensions
ROPS Wheelbase159 cmReference
Cab Wheelbase164 cmReference
Weight2646 to 3042 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
ROPS Length300 cmReference
Cab Length306 cmReference
Width132 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1200 kgReference
Cab Weight1379 kgReference
Ground clearance36 cmReference
Front tread100 cmReference
Rear tread104/116 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
