Tractor · 2006Unverified

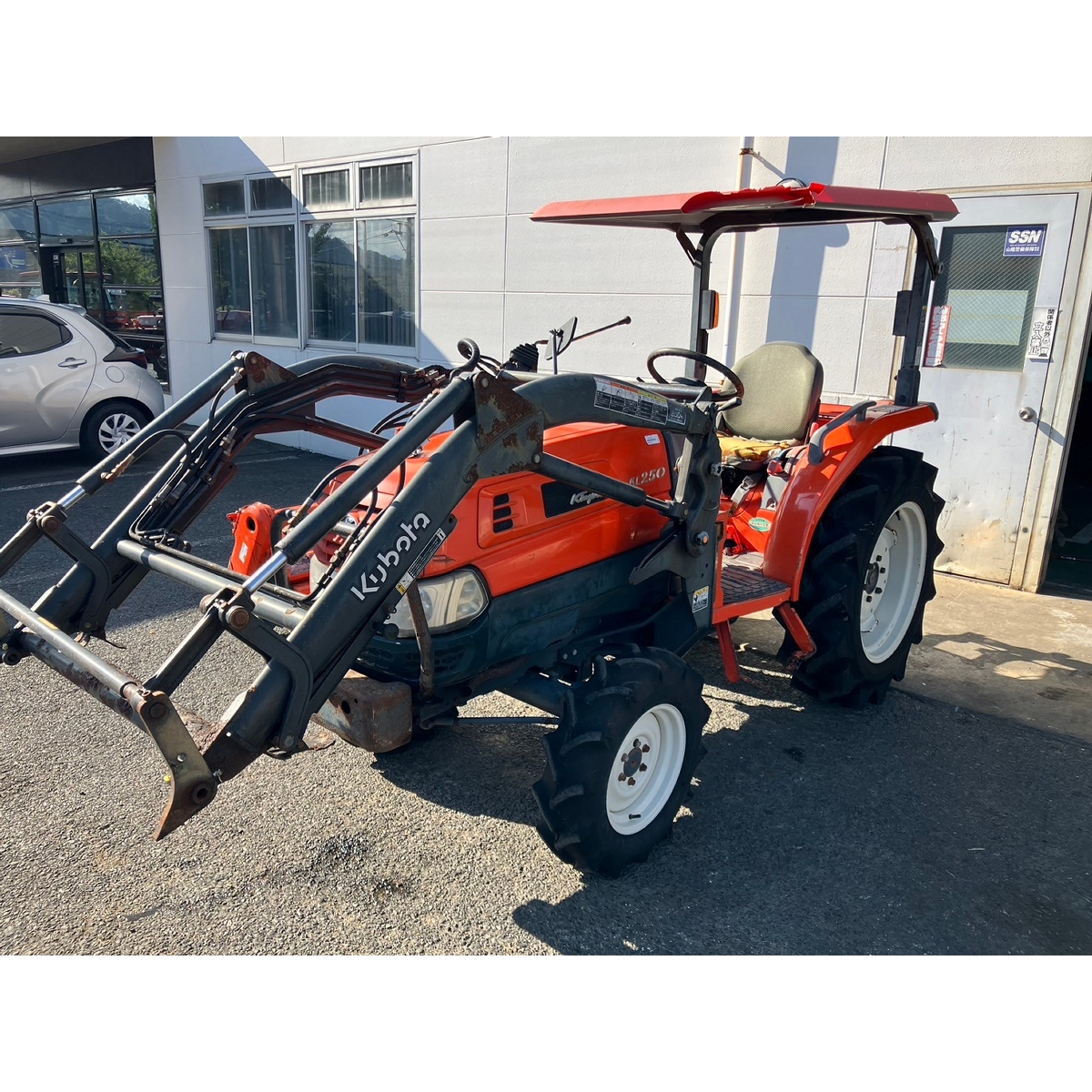

Kubota KL250 Hi-Speed
Kubota KL250 Hi-Speed — KL Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2646 to 3042 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL250standardReference
KL250Hhigh-speedReference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.4 kWReference
Kubota D1463Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke82 x 92 mmReference
Power18.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
30-speedReference
Gears20 forward and reverseReference
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2600Reference
Engine RPM944@2600Reference
Engine RPM1253@2600Reference
Engine RPM-944@2600Reference
Dimensions
ROPS Wheelbase159 cmReference
Cab Wheelbase164 cmReference
Weight2646 to 3042 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
ROPS Length300 cmReference
Cab Length306 cmReference
Width132 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1200 kgReference
Cab Weight1379 kgReference
Ground clearance36 cmReference
Front tread100 cmReference
Rear tread104/116 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
