Tractor · 2012Unverified

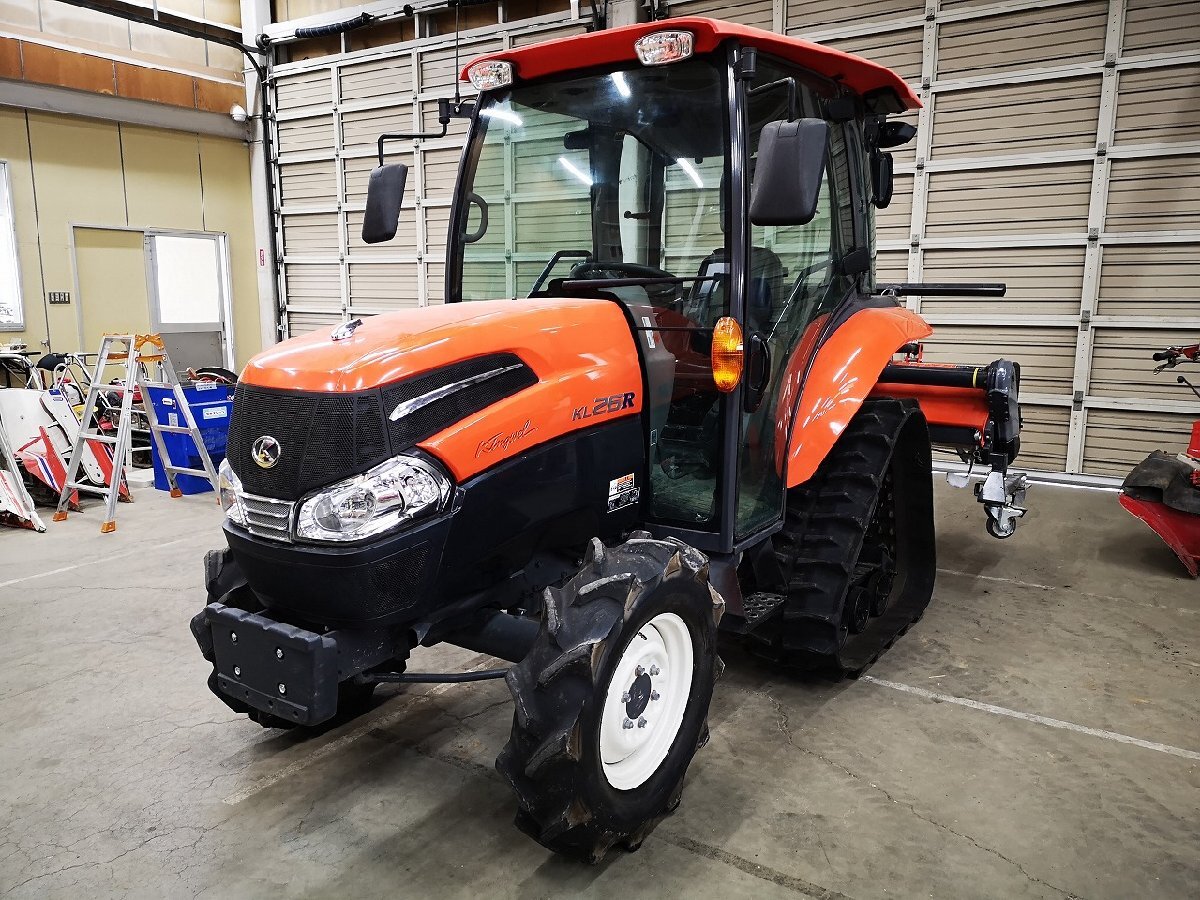

Kubota KL26R-PC
Kubota KL26R-PC — KL Kingwel R Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
3417 to 3880 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL34RwheeledReference
KL34R-PChalf-trackReference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine19.1 kWReference
Kubota D1703Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke86 x 91 mmReference
Power19.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
TransmissionGlideshiftReference
Typepower shiftReference
Gears24 forward and 16 reverseReference
Clutchdry discReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2700Reference
Engine RPM944@2600Reference
Engine RPM1258@2600Reference
Engine RPM-944@2600Reference
Dimensions
Wheelbase169 cmReference
Weight3417 to 3880 poundsReference
Front tire8-16Reference
Rear tiretracksReference
Ag front8-16Reference
Ag rear400mm tracksReference
Length312 cmReference
Width154 cmReference
Height (ROPS)202 cmReference
Height (cab)219 cmReference
ROPS Weight1549 kgReference
Cab Weight1759 kgReference
Ground clearance39 cmReference
Front tread108 cmReference
Rear tread115 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
