Tractor · 1999Unverified

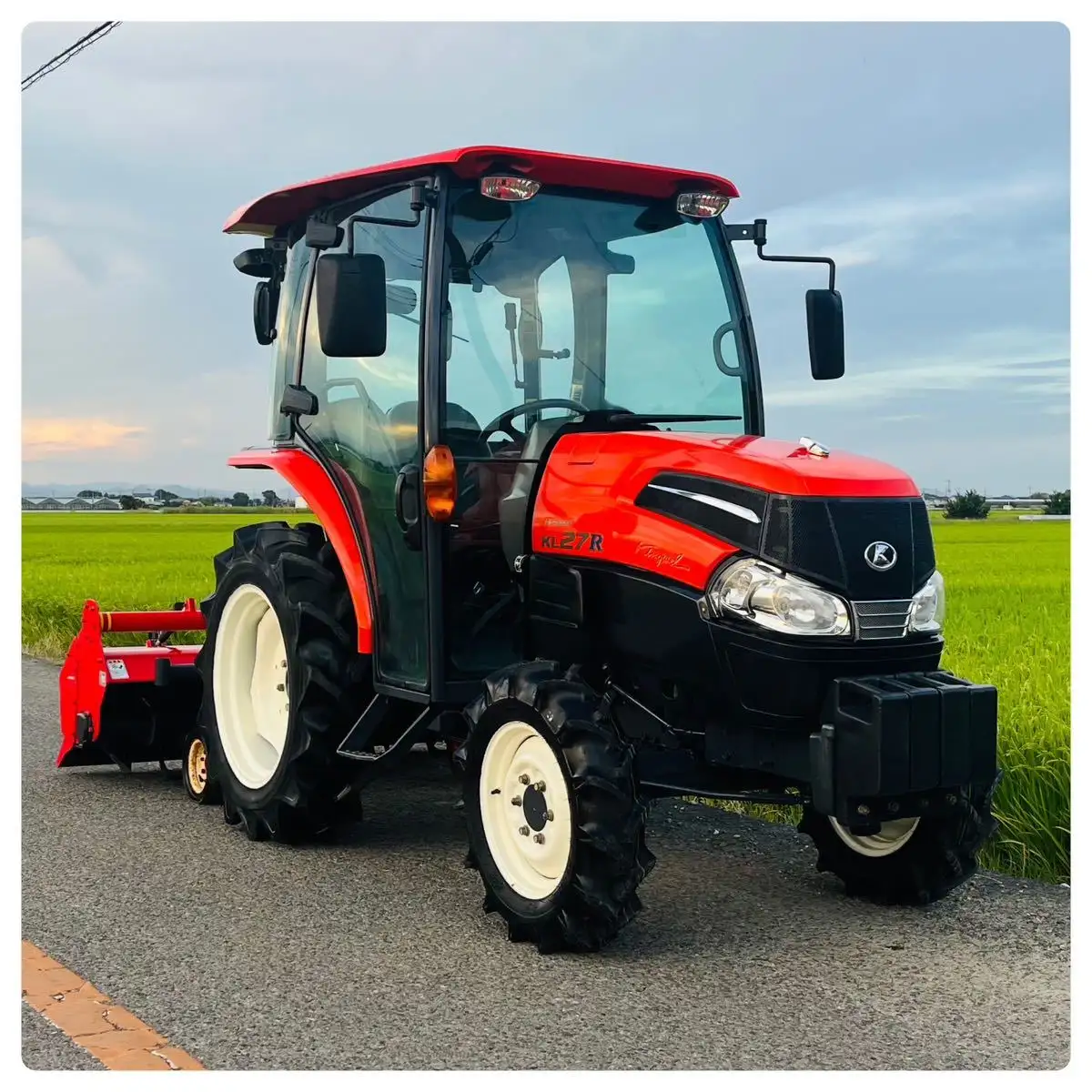

Kubota KL27
Kubota KL27 — KL Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2734 to 3120 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine19.9 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power19.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2600Reference
Engine RPM795@2600Reference
Engine RPM985@2600Reference
Engine RPM1313@2600Reference
Engine RPM-985@2600Reference
Dimensions
Wheelbase167 cmReference
Weight2734 to 3120 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length308 cmReference
Width135 cmReference
Height (ROPS)198 cmReference
Height (cab)199 cmReference
ROPS Weight1240 kgReference
Cab Weight1415 kgReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread104/116 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
