Tractor · 2010Unverified

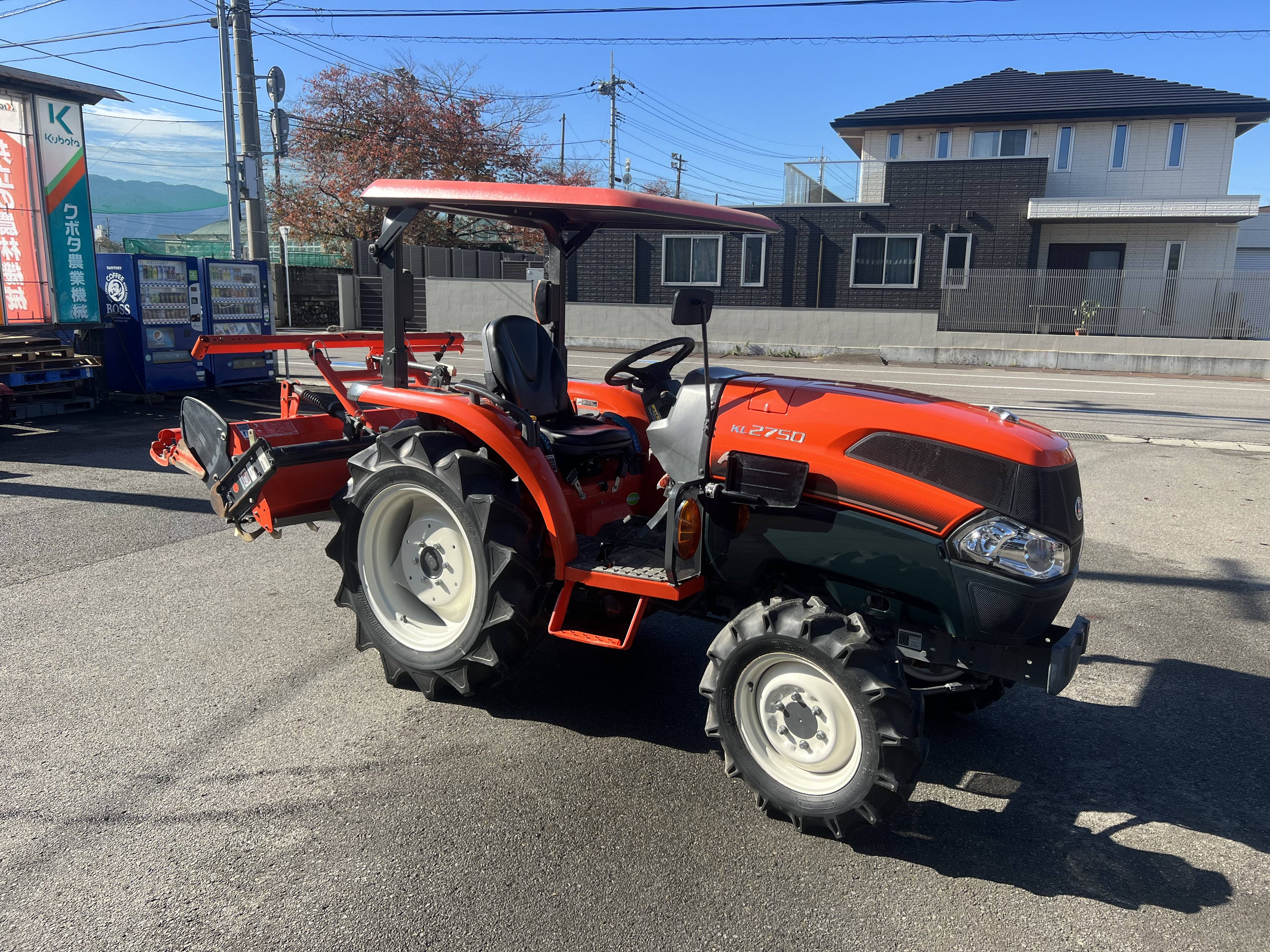

Kubota KL2750
Kubota KL2750 — KL Kingwel 50 Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2778 to 3219 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank36.0 LReference
Engine19.8 kWReference
Kubota D1703Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke86 x 91 mmReference
Power19.8 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speed power shiftReference
30-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears24 forward and 16 reverseReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
Gears30 forward and 20 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@2700Reference
Engine RPM760@2700Reference
Engine RPM945@2700Reference
Engine RPM1260@2700Reference
Engine RPM-945@2700Reference
Dimensions
Wheelbase167 cmReference
Weight2778 to 3219 poundsReference
Front tire6-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length309 cmReference
ROPS Width135 cmReference
Cab Width137 cmReference
Height (ROPS)198 cmReference
Height (cab)215 cmReference
ROPS Weight1260 kgReference
Cab Weight1460 kgReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread104/116 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
