Tractor · 2012Unverified

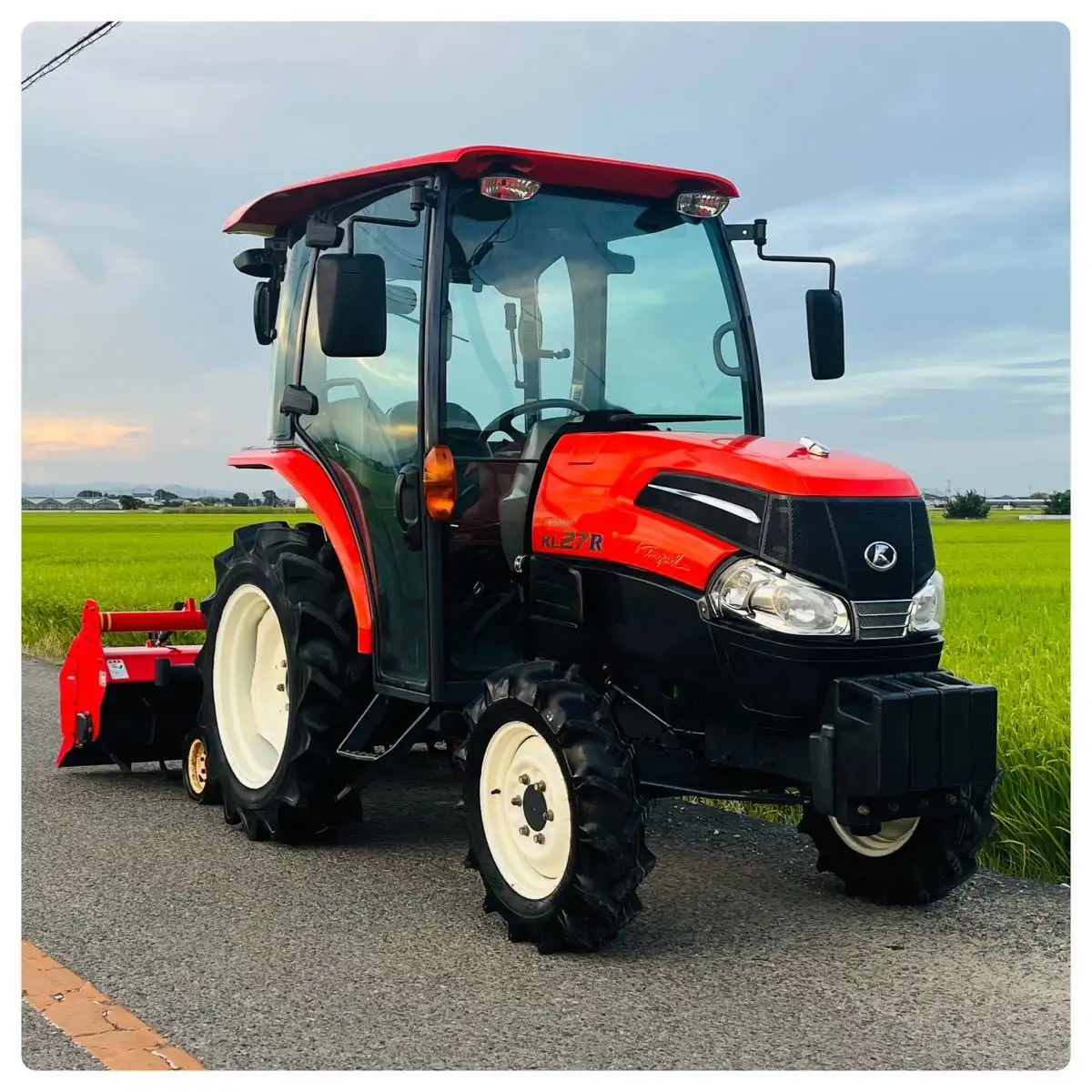

Kubota KL27R

Name: Kubota KL27R
Brand: Kubota

Kubota KL27R — KL Kingwel R Series · 27 hp. Reference specifications; pending source verification.

The Kubota KL27R is a compact tractor model with a rated output of 27 hp, produced from 2012 to 2015. It features a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a powershift transmission. The listed weight range is 2778 to 3219 pounds, with the tractor designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Max power

26.6 hp

Weight

2778 to 3219 pounds

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

27 hp

Recorded weight

1260 kg

Transmissions

16-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.6L 3-cyl dieselReference

Fuel tank36.0 LReference

Engine19.8 kWReference

Kubota D1703Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke86 x 91 mmReference

Power19.8 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.4x3.6 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speedReference

24-speed power shiftReference

30-speedReference

Gears16 forward and reverseReference

Clutchdry discReference

Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears24 forward and 16 reverseReference

Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

Transmission TypePowershiftReference

forward and reverse options16-F and 16-R | Glideshift, 24-F and 16-R | 30-F and 20-RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM561@2700Reference

Engine RPM791@2700Reference

Engine RPM980@2700Reference

Engine RPM1307@2700Reference

Engine RPM-980@2700Reference

Dimensions

Wheelbase167 cmReference

Weight2778 to 3219 poundsReference

Front tire7-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Length309 cmReference

ROPS Width135 cmReference

Cab Width137 cmReference

Height (ROPS)198 cmReference

Height (cab)215 cmReference

ROPS Weight1260 kgReference

Cab Weight1460 kgReference

Ground clearance34 cmReference

Front tread107 cmReference

Rear tread104/116 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPS.Reference

Capacities

Capacity100.5 ciReference

Power

Max Power26.6 hpReference

PTO

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,307@2,700 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typePower SteeringReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab215.4 cmReference

Height Over ROPS198.1 cmReference

Overall Length309.1 cmReference

Overall Width137.4 cmReference

Overall weight1,260.1 kgReference

Wheels & tyres

Rear Wheel Type11.2-24Reference

Rear wheel tread range116.6 cmReference

Front Wheel Type45,489Reference

Front Wheel tread range108 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
