Tractor · 2006Unverified

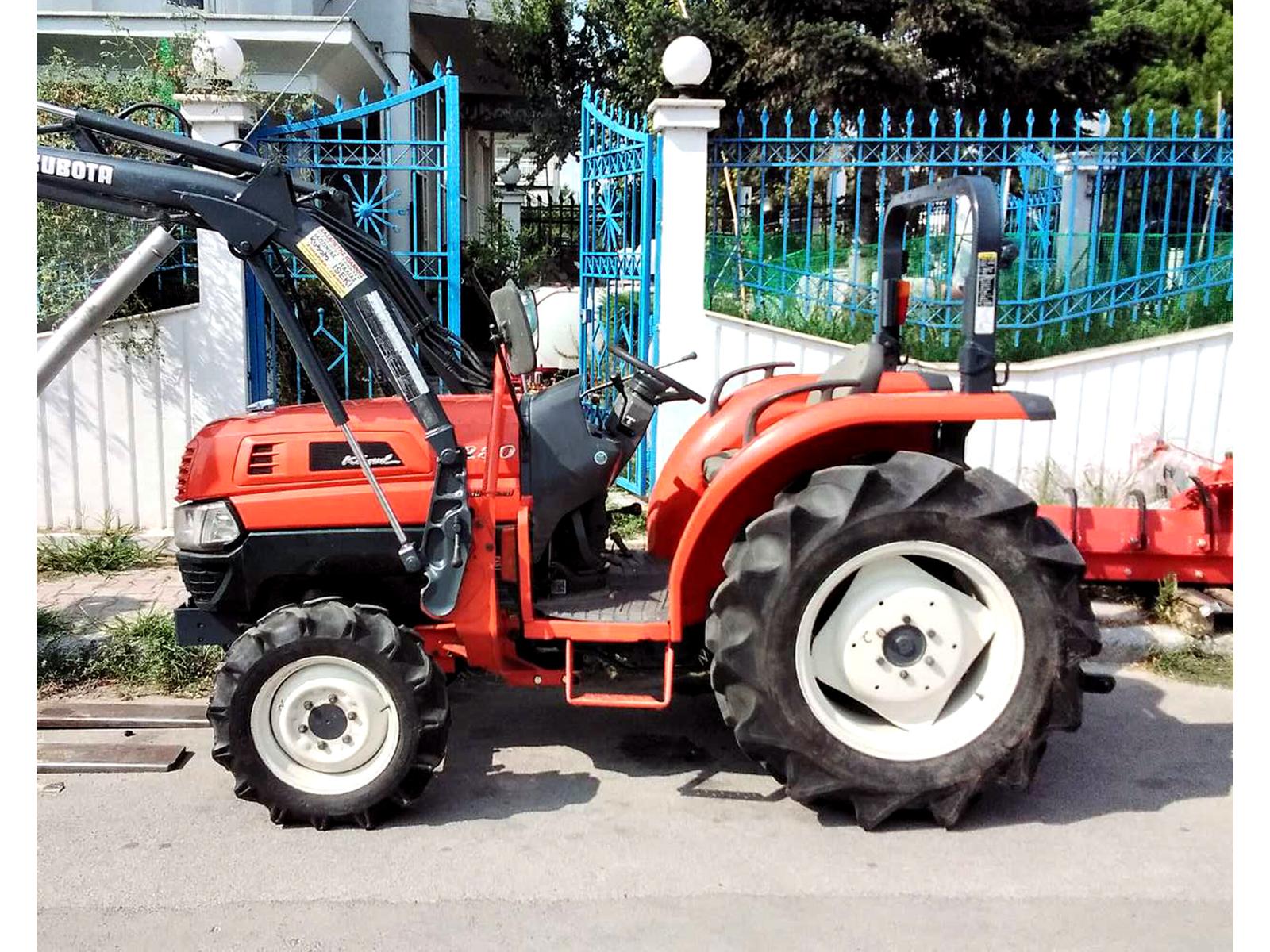

Kubota KL280 Hi-Speed
Kubota KL280 Hi-Speed — KL Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2866 to 3252 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.6L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine20.6 kWReference
Kubota D1703Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power20.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
30-speedReference
Gears20 forward and reverseReference
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2600Reference
Engine RPM795@2600Reference
Engine RPM985@2600Reference
Engine RPM1313@2600Reference
Engine RPM-985@2600Reference
Dimensions
Wheelbase171 cmReference
Weight2866 to 3252 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length313 cmReference
Width137 cmReference
Height (ROPS)195 cmReference
Height (cab)206 cmReference
ROPS Weight1300 kgReference
Cab Weight1475 kgReference
Ground clearance34 cmReference
Front tread107 cmReference
Rear tread106/137 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
