Tractor · 2012Unverified

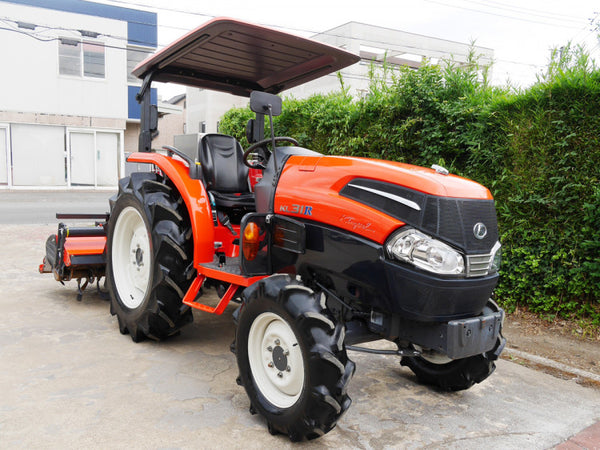

Kubota KL31R
Kubota KL31R — KL Kingwel R Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
2932 to 3384 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL31RwheeledReference
KL31R-PChalf-trackReference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine22.8 kWReference
Kubota D1803Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power22.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speed power shiftReference
30-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears24 forward and 16 reverseReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
Gears30 forward and 20 reverseReference
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2600Reference
Engine RPM944@2600Reference
Engine RPM1258@2600Reference
Engine RPM-944@2600Reference
Dimensions
Wheelbase174 cmReference
Weight2932 to 3384 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length318 cmReference
Width141 cmReference
Height (ROPS)198 cmReference
Height (cab)215 cmReference
ROPS Weight1329 kgReference
Cab Weight1534 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread108/135 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
