Tractor · 2013Unverified

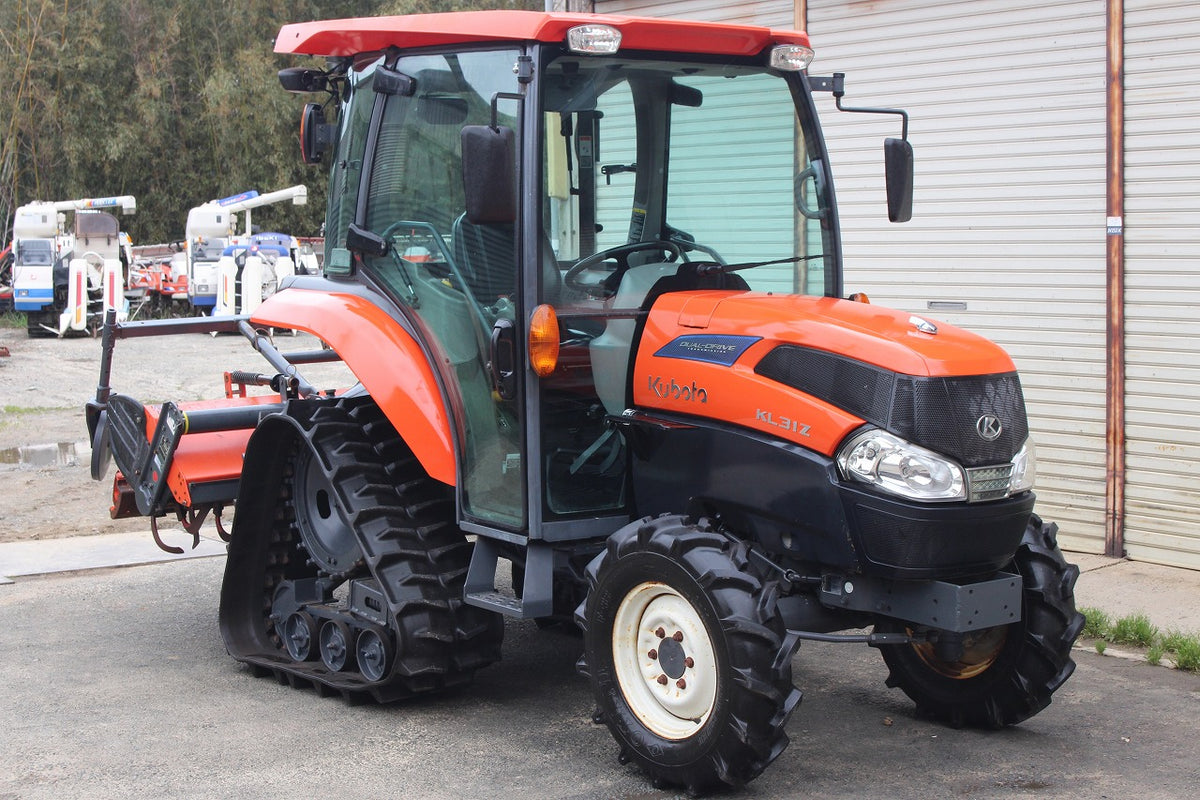

Kubota KL31Z
Kubota KL31Z — KL Kingwel Zero Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1644 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
KL31ZwheeledReference
KL31Z-PChalf-trackReference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine22.8 kWReference
Kubota D1803Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power22.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-varaible transmissionReference
TransmissionDual DriveReference
Typecontinuously-varaible transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
Clutchdry discReference
Hydro-mechanical CVT.Reference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM541@2600Reference
Engine RPM767@2600Reference
Engine RPM961@2600Reference
Engine RPM1288@2600Reference
Engine RPM-764@2600Reference
Dimensions
Wheelbase180 cmReference
Weight1644 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length324 cmReference
Width153 cmReference
Height (cab)223 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread120/123 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
