Tractor · 1999Unverified

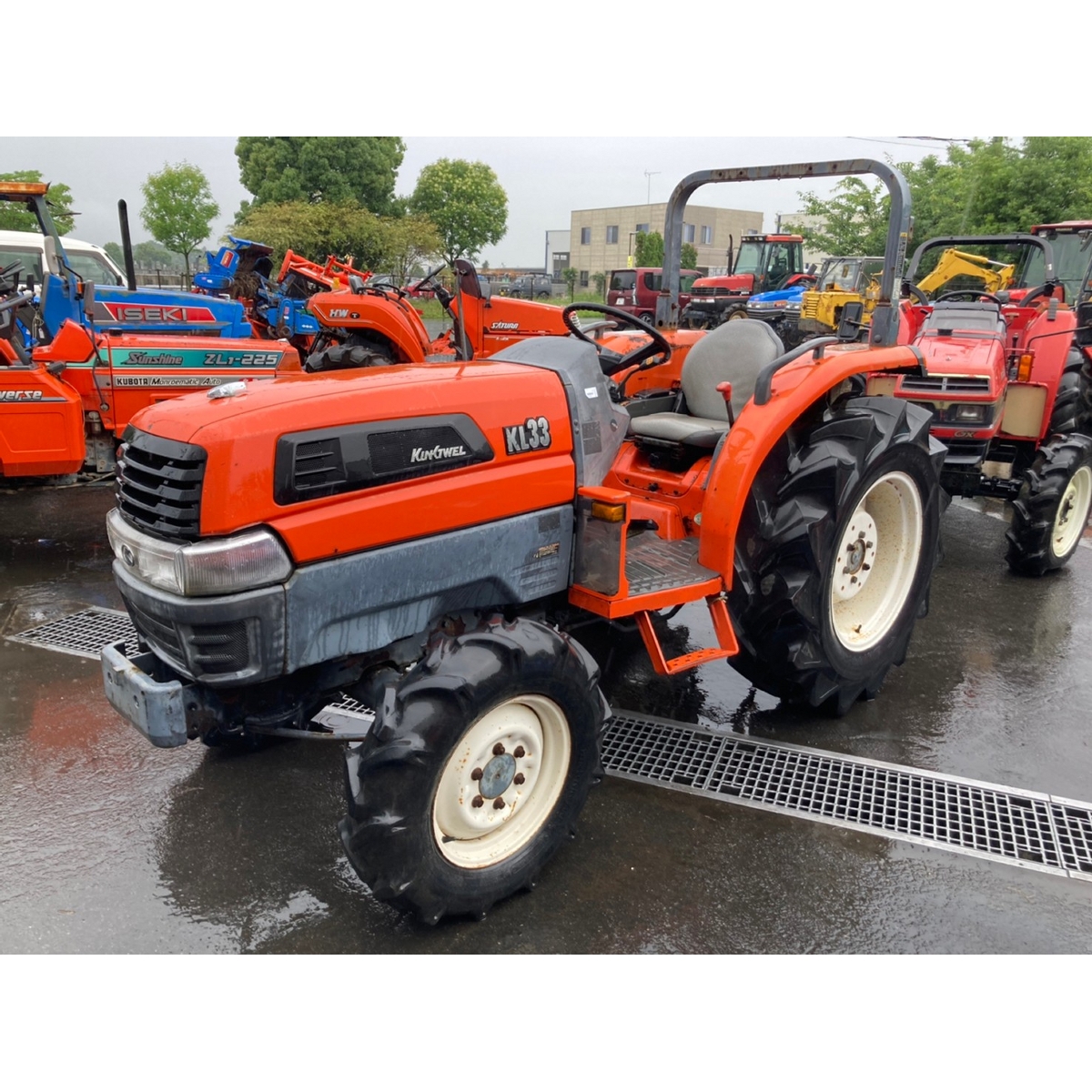

Kubota KL33

Name: Kubota KL33
Brand: Kubota

Kubota KL33 — KL Series · 33 hp. Reference specifications; pending source verification.

The Kubota KL33 is a compact tractor model with a rated output of 33 hp. It was manufactured from 1999 to 2005 and features a 3-cylinder diesel liquid-cooled engine. The tractor's drivetrain consists of four-wheel drive with a 16-speed gearbox, and its listed weight range is 2888 to 3274 pounds. It is suitable for tasks on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

2888 to 3274 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

33 hp

Recorded weight

1309 kg

Transmissions

16-speed

Production years

1999-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine24.3 kWReference

Kubota D1503Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke83 x 92 mmReference

Power24.3 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

24-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference

Gears24 forward and 16 reverseReference

Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM561@2800Reference

Engine RPM791@2800Reference

Engine RPM980@2800Reference

Engine RPM1306@2800Reference

Engine RPM-980@2800Reference

Dimensions

Wheelbase174 cmReference

Weight2888 to 3274 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width146 cmReference

Height (ROPS)198 cmReference

Height (cab)199 cmReference

ROPS Weight1309 kgReference

Cab Weight1485 kgReference

Ground clearance36 cmReference

Front tread113 cmReference

Rear tread110 to 157 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
