Tractor · 2006Unverified

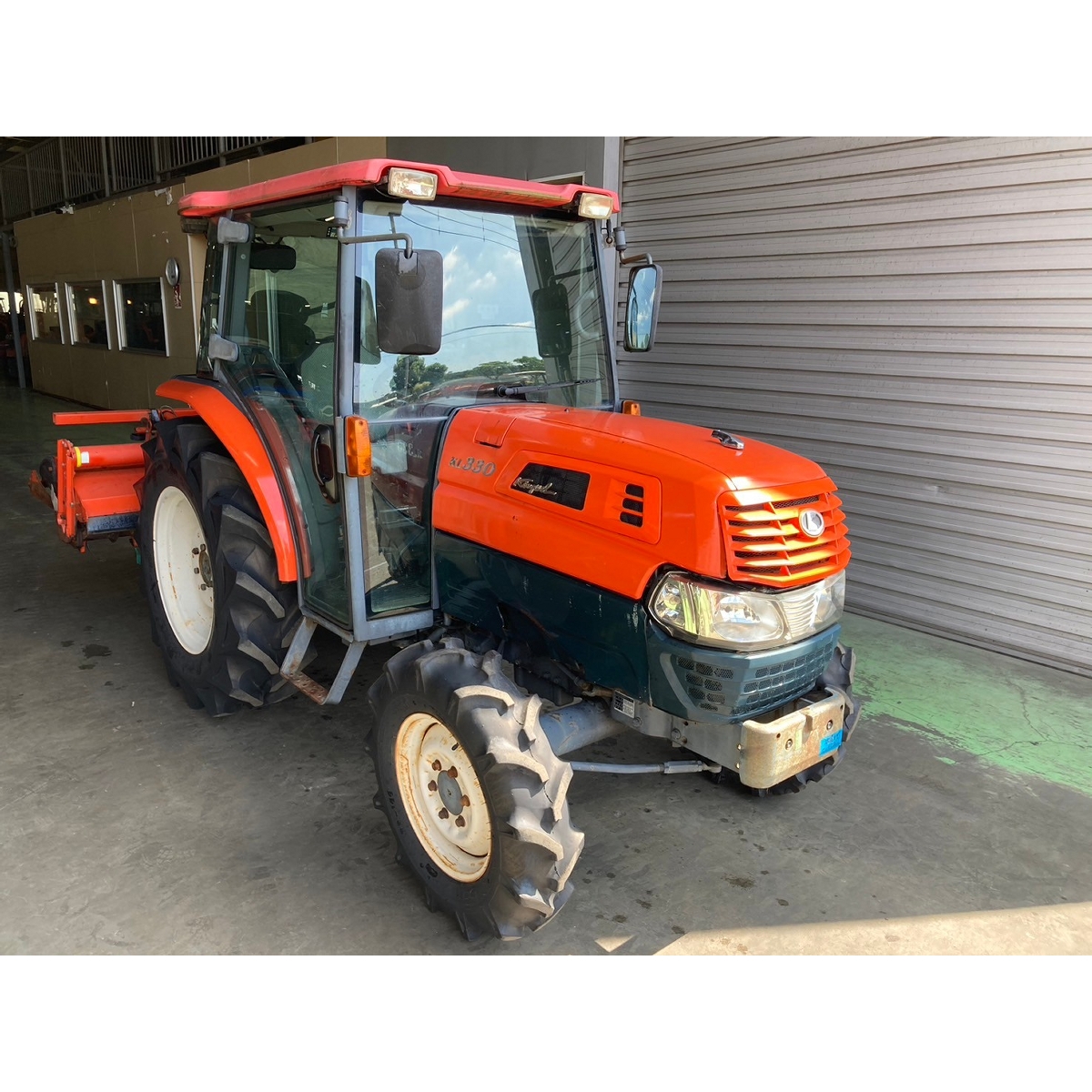

Kubota KL330
Kubota KL330 — KL Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
2932 to 3318 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 1.5L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine24.3 kWReference
Kubota D1503Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke83 x 92 mmReference
Power24.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.Reference
Eight gears in two ranges (creeper and high) with shuttle shift.Reference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM561@2800Reference
Engine RPM791@2800Reference
Engine RPM980@2800Reference
Engine RPM1307@2800Reference
Engine RPM-980@2800Reference
Dimensions
Wheelbase174 cmReference
Weight2932 to 3318 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width146 cmReference
Height (ROPS)198 cmReference
Height (cab)198 cmReference
ROPS Weight1329 kgReference
Cab Weight1505 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110 to 157 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
