Tractor · 2006Unverified

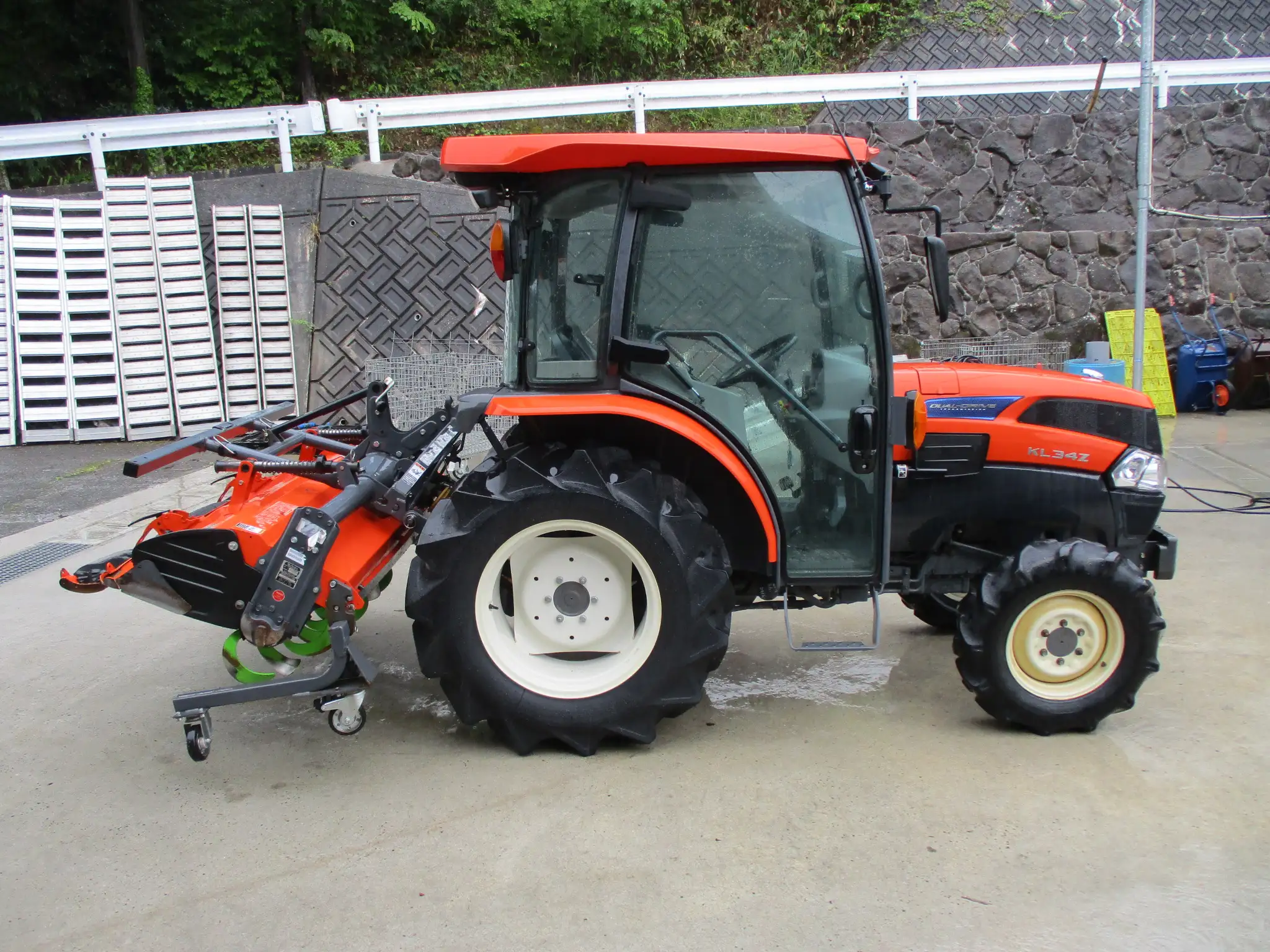

Kubota KL340 Hi-Speed

Name: Kubota KL340 Hi-Speed
Brand: Kubota

Kubota KL340 Hi-Speed — KL Series · 34 hp. Reference specifications; pending source verification.

The Kubota KL340 Hi-Speed is a tractor model with a rated power output of 34 hp, which positions it in the lighter end of its class. This model was manufactured between 2006 and 2007. It features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 20-speed gearbox. The operating weight of the KL340 Hi-Speed ranges from 2998 to 3373 pounds, with a suitable operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

2998 to 3373 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

34 hp

Recorded weight

1359 kg

Transmissions

20-speed

Production years

2006-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine25.0 kWReference

Kubota D1803Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 92 mmReference

Power25.0 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speedReference

30-speedReference

Gears20 forward and reverseReference

Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference

Gears30 forward and 20 reverseReference

Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM561@2700Reference

Engine RPM791@2700Reference

Engine RPM980@2700Reference

Engine RPM1307@2700Reference

Engine RPM-980@2700Reference

Dimensions

Wheelbase174 cmReference

Weight2998 to 3373 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length318 cmReference

Width146 cmReference

Height (ROPS)198 cmReference

Height (cab)209 cmReference

ROPS Weight1359 kgReference

Cab Weight1529 kgReference

Ground clearance36 cmReference

Front tread113 cmReference

Rear tread108 to 148 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
