Tractor · 2008Unverified

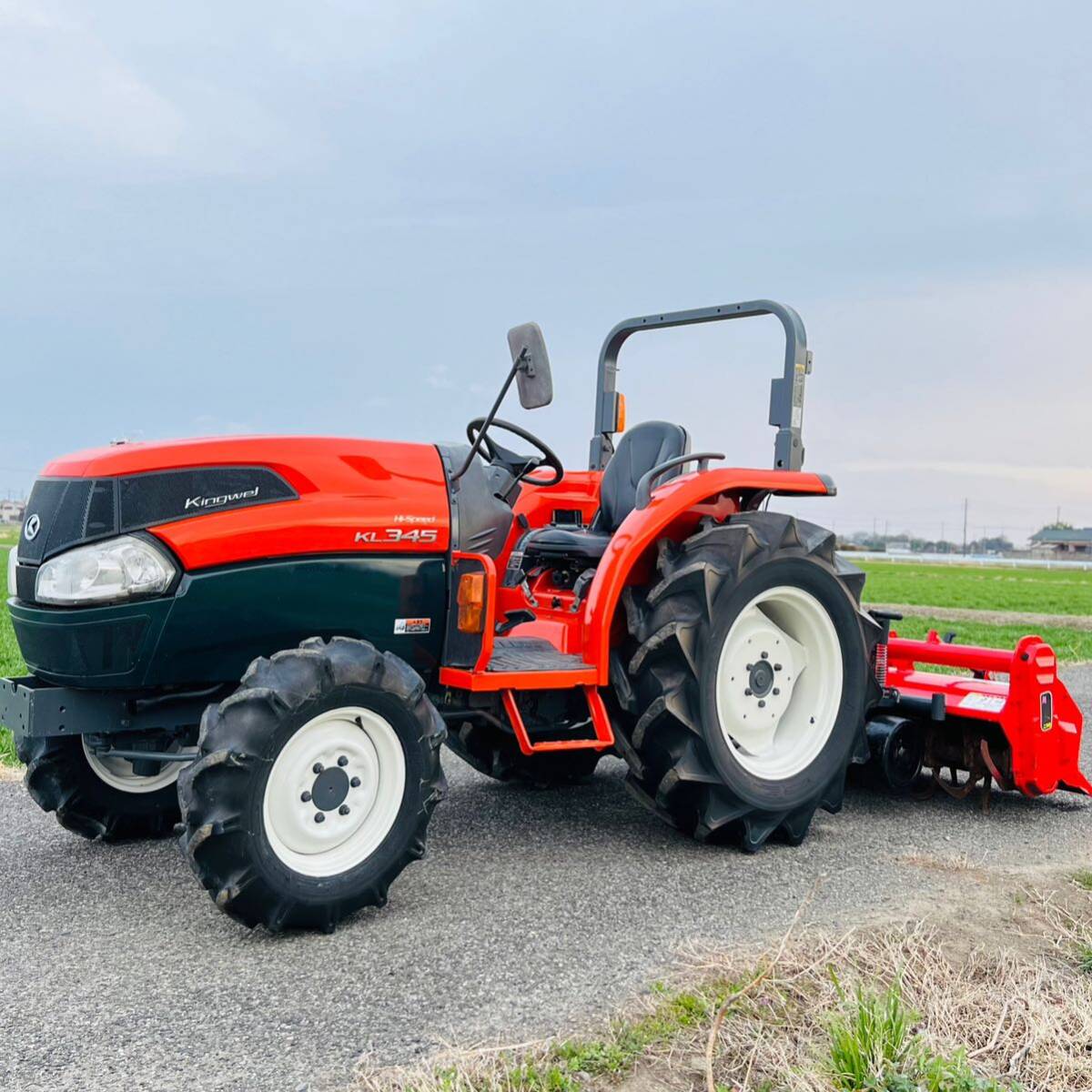

Kubota KL345 Hi-Speed
Kubota KL345 Hi-Speed — KL Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
2998 to 3417 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL345standardReference
KL345Hhigh-speedReference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine25.0 kWReference
Kubota D1803Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 92 mmReference
Power25.0 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speedReference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM561@2700Reference
Engine RPM791@2700Reference
Engine RPM980@2700Reference
Engine RPM1307@2700Reference
Engine RPM-980@2700Reference
Dimensions
Wheelbase174 cmReference
Weight2998 to 3417 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width146 cmReference
Height (ROPS)198 cmReference
Height (cab)214 cmReference
ROPS Weight1359 kgReference
Cab Weight1549 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110/133 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
