Tractor · 2010Unverified

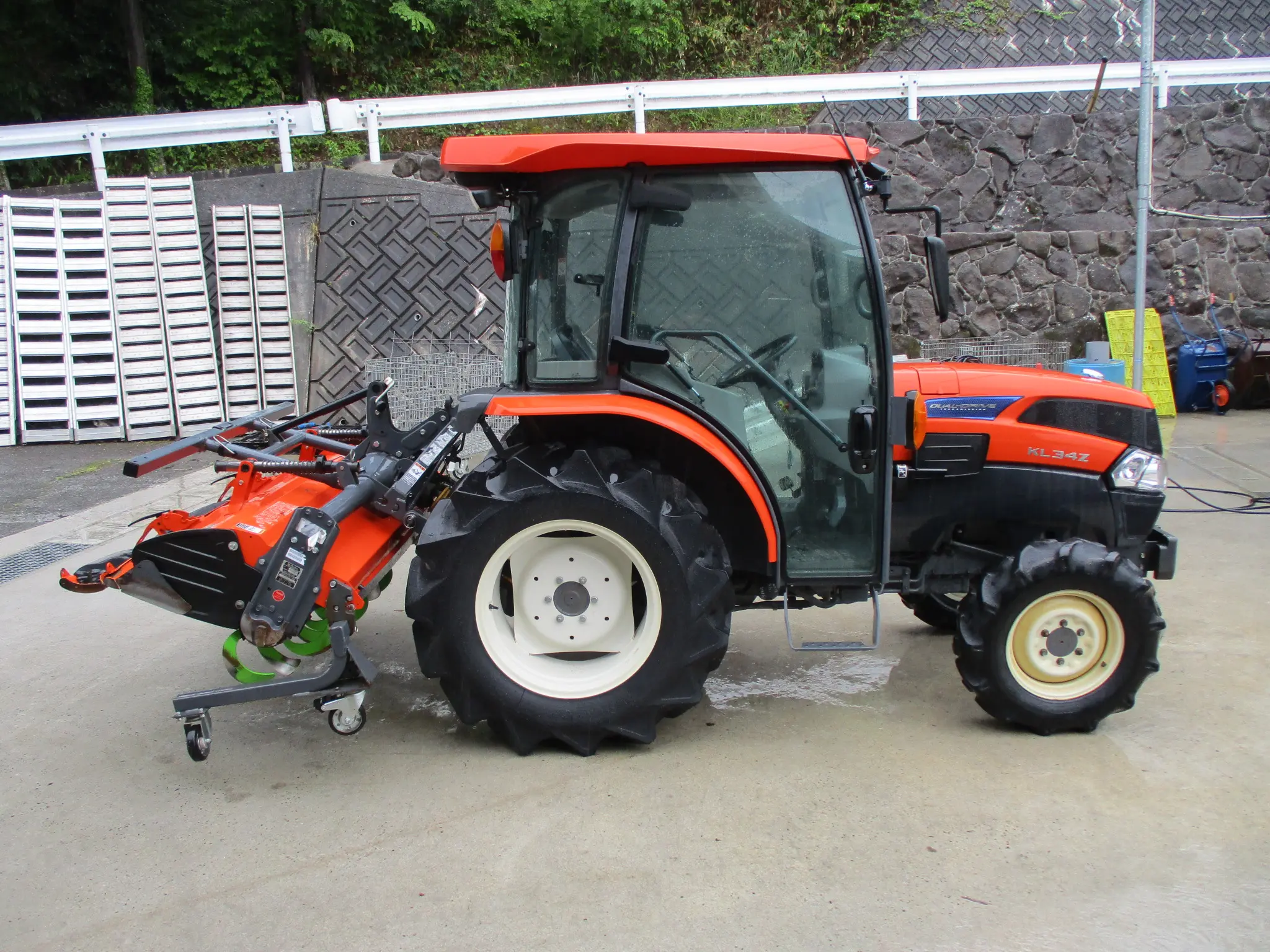

Kubota KL3450
Kubota KL3450 — KL Kingwel 50 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
2954 to 3406 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL3450wheeledReference
KL3450-PChalf-trackReference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine25.0 kWReference
Kubota D1803Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power25.0 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speed power shiftReference
30-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.Reference
TransmissionGlideshiftReference
Typepower shiftReference
Gears24 forward and 16 reverseReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
Gears30 forward and 20 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM561@2700Reference
Engine RPM791@2700Reference
Engine RPM980@2700Reference
Engine RPM1307@2700Reference
Engine RPM-980@2700Reference
Dimensions
Wheelbase174 cmReference
Weight2954 to 3406 poundsReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length318 cmReference
Width146 cmReference
Height (ROPS)198 cmReference
Height (cab)215 cmReference
ROPS Weight1339 kgReference
Cab Weight1544 kgReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread110/130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
