Tractor · 2012Unverified

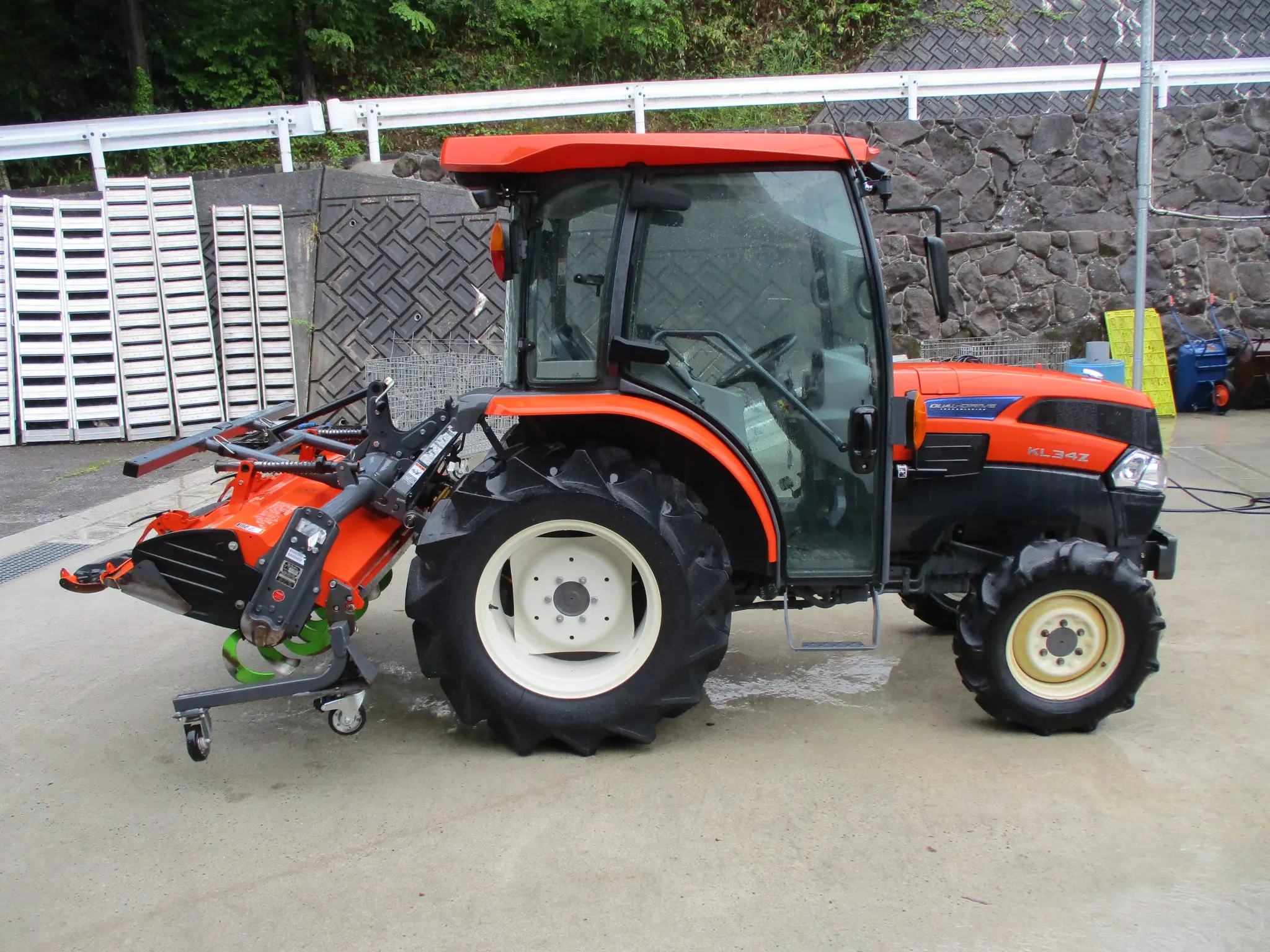

Kubota KL34R-PC

Name: Kubota KL34R-PC
Brand: Kubota

Kubota KL34R-PC — KL Kingwel R Series · 34 hp. Reference specifications; pending source verification.

The Kubota KL34R-PC is a compact tractor model, boasting a rated output of 34 hp. It was manufactured from 2012 to 2015 and features a 3-cylinder diesel liquid-cooled engine driving a tracked undercarriage via a powershift transmission. The listed weight of the Kubota KL34R-PC ranges from 3560 to 3990 pounds. It is suited for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

3560 to 3990 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

34 hp

Recorded weight

1614 kg

Transmissions

24-speed power shift

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Variants

KL34RwheeledReference

KL34R-PChalf-trackReference

Engine

Kubota 1.8L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine25.0 kWReference

Kubota D1803Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke86 x 102 mmReference

Power25.0 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shiftReference

30-speedReference

TransmissionGlideshiftReference

Typepower shiftReference

Gears24 forward and 16 reverseReference

Clutchdry discReference

Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM561@2700Reference

Engine RPM791@2700Reference

Engine RPM980@2700Reference

Engine RPM1307@2700Reference

Engine RPM-980@2700Reference

Dimensions

Wheelbase172 cmReference

Weight3560 to 3990 poundsReference

Front tire8-18Reference

Rear tiretracksReference

Ag front8-18Reference

Ag rear400mm tracksReference

Length320 cmReference

Width154 cmReference

Height (ROPS)203 cmReference

Height (cab)220 cmReference

ROPS Weight1614 kgReference

Cab Weight1809 kgReference

Ground clearance40 cmReference

Front tread117 cmReference

Rear tread115 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
