Tractor · 2013Unverified
Kubota KL34Z
Kubota KL34Z — KL Kingwel Zero Series · 34 hp. Reference specifications; pending source verification.

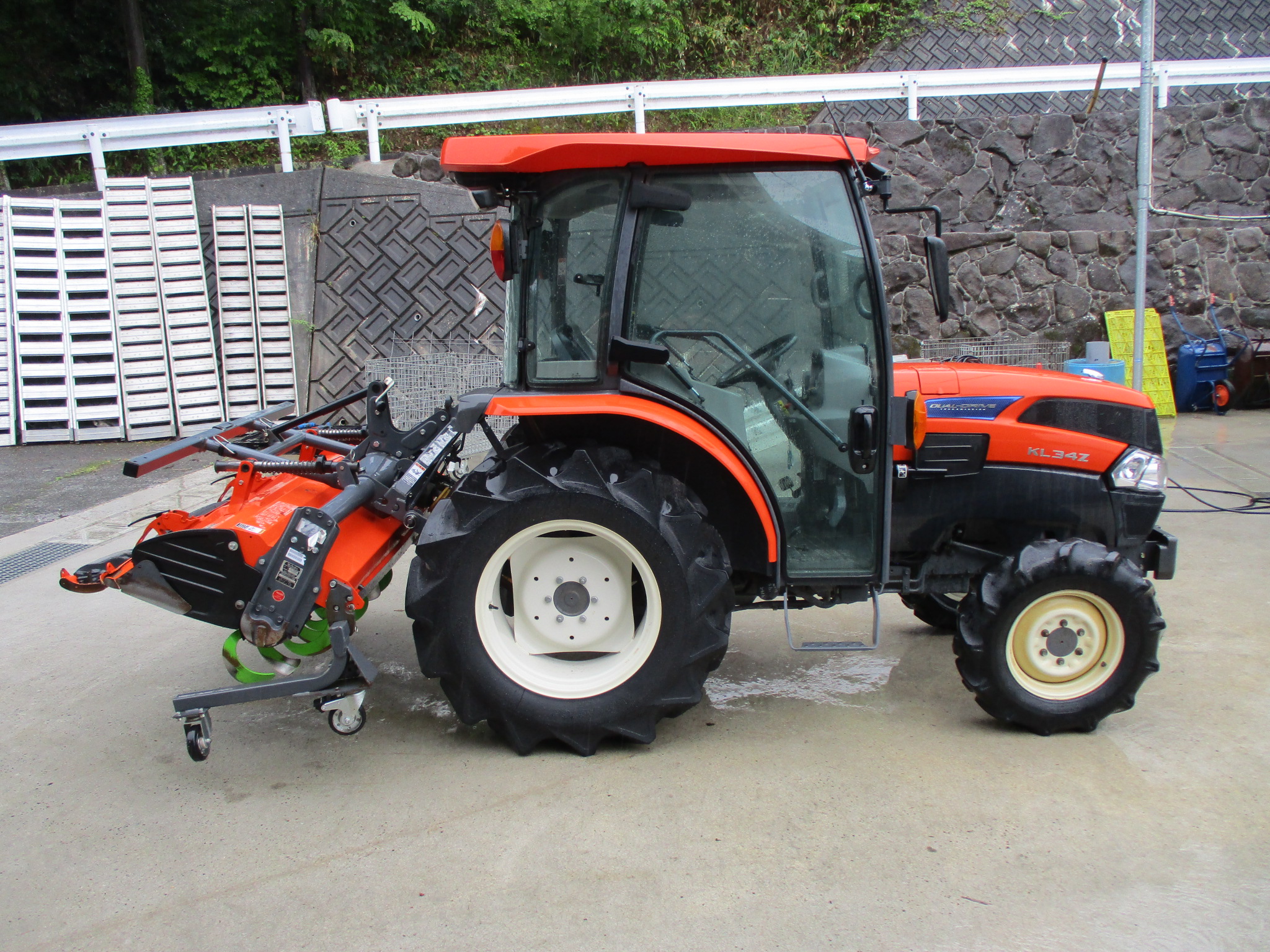

The Kubota KL34Z is a lightweight tractor with a rating of approximately 34 hp, positioning it at the lower end of its class. It was manufactured between 2013 and 2015. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 1644 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Max power
33.5 hp
Weight
1644 kg
Catalogue coverage
Variants represented
2
Richest spec table
70 rows
Recorded power
34 hp
Recorded weight
1644 kg
Transmissions
Hydro-mechanical CVT.
Production years
2013-2015
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Kubota 1.8L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine25.0 kWReference
Kubota D1803Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke86 x 102 mmReference
Power25.0 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Fuel TypedieselReference
No of Cylinders3 cylinderReference
Rated engine speed2,700 rpmReference
Bore and stroke3.4x4.0 inchesReference
Cooling systemliquid-cooledReference
Transmission
continuously-varaible transmissionReference
TransmissionDual DriveReference
Typecontinuously-varaible transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
Clutchdry discReference
Hydro-mechanical CVT.Reference
Gearsinfinite forward and reverse (3-range)Reference
Transmission TypeCVTReference
Wheel Drive4WDReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM562@2700Reference
Engine RPM796@2700Reference
Engine RPM998@2700Reference
Engine RPM1337@2700Reference
Engine RPM-793@2700Reference
Dimensions
Wheelbase180 cmReference
Weight1644 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Length324 cmReference
Width153 cmReference
Height (cab)223 cmReference
Ground clearance36 cmReference
Front tread113 cmReference
Rear tread120/123 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Capacities
Capacity111.4 ciReference
Power
Max Power33.5 hpReference
PTO
Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Engine Speed on Rear PTO speed1,337@2,700 rpmReference
