Tractor · 1999Unverified

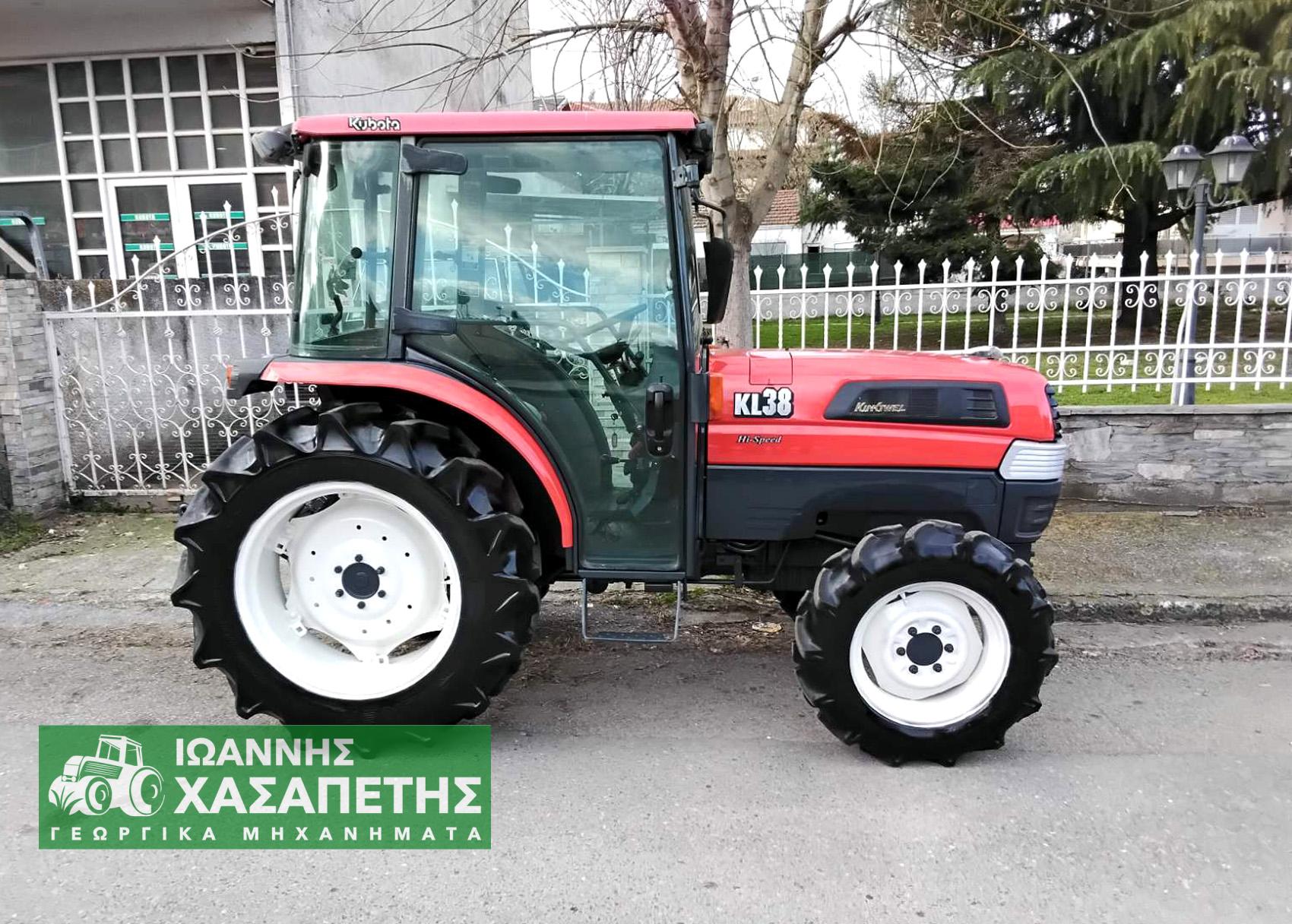

Kubota KL38 Hi-Speed
Kubota KL38 Hi-Speed — KL Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3351 to 3748 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine28.3 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power28.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speedReference
30-speedReference
Gears20 forward and reverseReference
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2600Reference
Engine RPM944@2600Reference
Engine RPM1258@2600Reference
Engine RPM-944@2600Reference
Dimensions
Wheelbase188 cmReference
Weight3351 to 3748 poundsReference
Front tire8-18Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length344 cmReference
Width149 cmReference
Height (ROPS)231 cmReference
Height (cab)215 cmReference
ROPS Weight1520 kgReference
Cab Weight1700 kgReference
Ground clearance40 cmReference
Front tread119 cmReference
Rear tread114 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
