Tractor · 2012Unverified

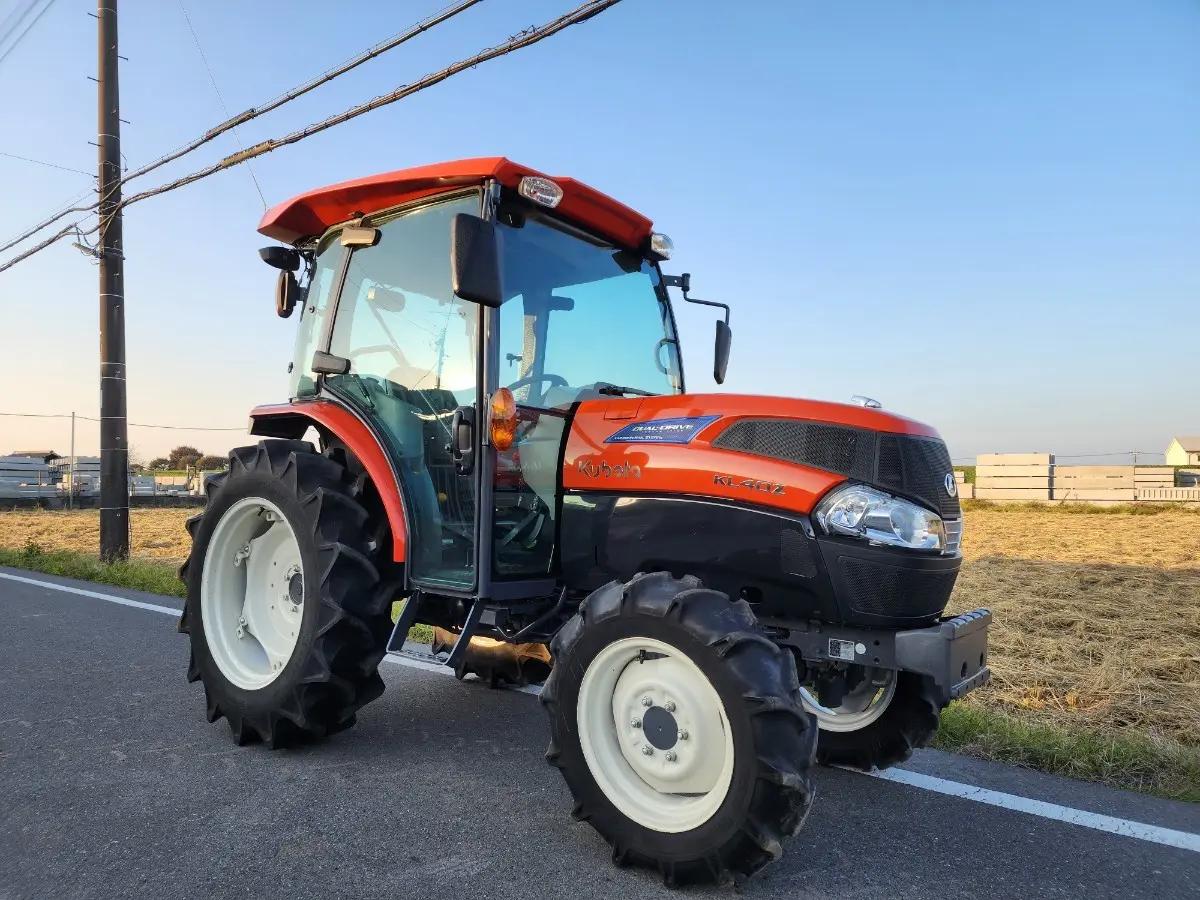

Kubota KL40Z
Kubota KL40Z — KL Kingwel Zero Series · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1814 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL40ZwheeledReference
KL40Z-PChalf-trackReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank39.0 LReference
Engine29.4 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power29.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-varaible transmissionReference
24-speedReference
30-speedReference
TransmissionDual DriveReference
Typecontinuously-varaible transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
Clutchdry discReference
Hydro-mechanical CVT.Reference
Gearsinfinite forward and reverse (3-range)Reference
Gears24 forward and 16 reverseReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
Gears30 forward and 20 reverseReference
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM546@2600Reference
Engine RPM773@2600Reference
Engine RPM969@2600Reference
Engine RPM1298@2600Reference
Engine RPM-770@2600Reference
Dimensions
Wheelbase188 cmReference
Weight1814 kgReference
Front tire8-18Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4-28Reference
Length338 cmReference
Width152 cmReference
Height (ROPS)231 cmReference
Height (cab)228 cmReference
Ground clearance40 cmReference
Front tread119 cmReference
Rear tread120 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
