Tractor · 2012Unverified

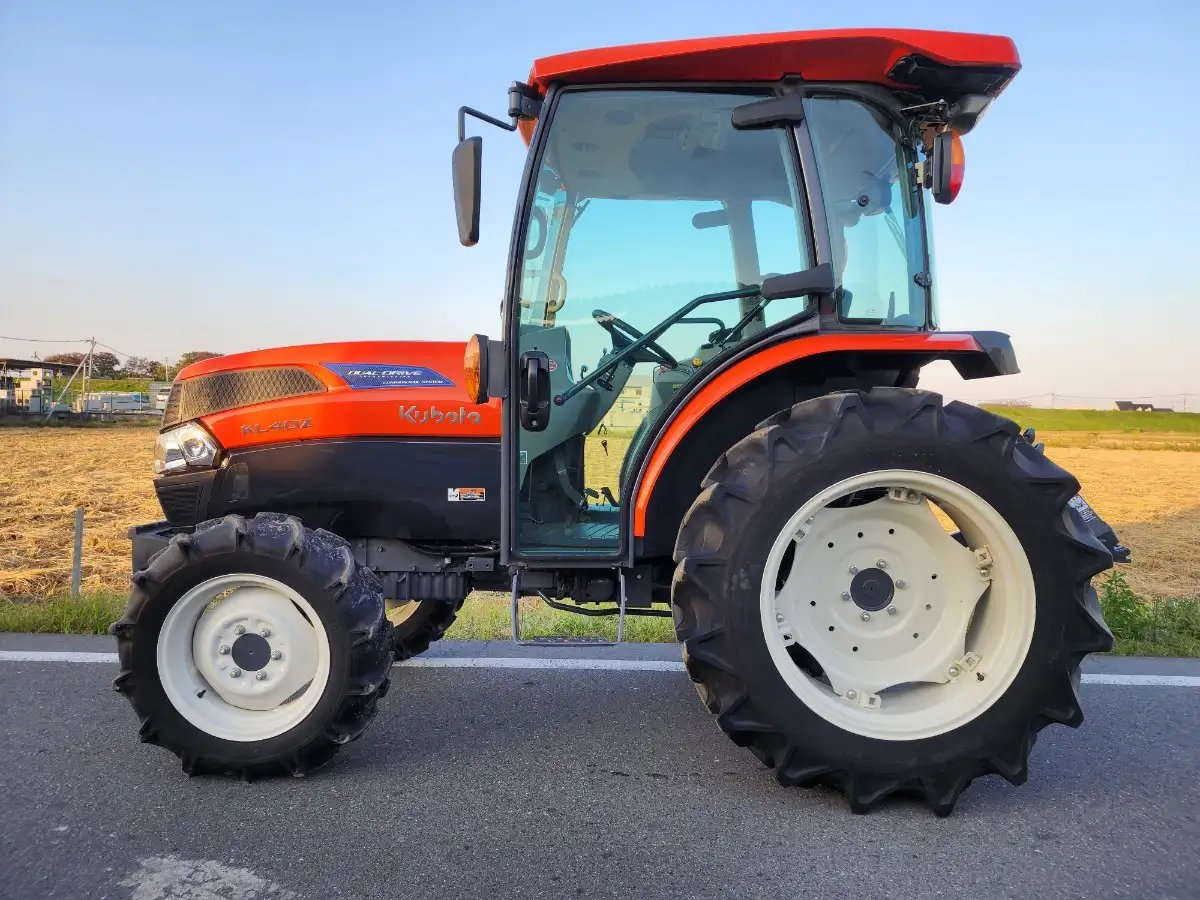

Kubota KL40Z-PC

Name: Kubota KL40Z-PC
Brand: Kubota

Kubota KL40Z-PC — KL Kingwel Zero Series · 39 hp. Reference specifications; pending source verification.

The Kubota KL40Z-PC is a tractor with a rated power of 39 hp, categorising it at the lighter end of its class. Manufactured between 2012 and 2015, this model is powered by a 4-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage featuring a continuously variable transmission. The KL40Z-PC has an operating weight of 2075 kg, making it suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Weight

2075 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

39 hp

Recorded weight

2075 kg

Transmissions

30-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

KL40ZwheeledReference

KL40Z-PChalf-trackReference

Engine

Kubota 2.2L 4-cyl dieselReference

Fuel tank39.0 LReference

Engine29.4 kWReference

Kubota V2203Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power29.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-varaible transmissionReference

30-speedReference

TransmissionDual DriveReference

Typecontinuously-varaible transmissionReference

Gearsinfinite forward and reverse (3-range)Reference

Clutchdry discReference

Hydro-mechanical CVT.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM546@2600Reference

Engine RPM773@2600Reference

Engine RPM969@2600Reference

Engine RPM1298@2600Reference

Engine RPM-770@2600Reference

Dimensions

Wheelbase188 cmReference

Weight2075 kgReference

Front tire8-18Reference

Rear tiretracksReference

Ag front8-18Reference

Ag rear400mm trackReference

Length339 cmReference

Width167 cmReference

Height (cab)231 cmReference

Ground clearance42 cmReference

Front tread119 cmReference

Rear tread127 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
