Tractor · 2008Unverified

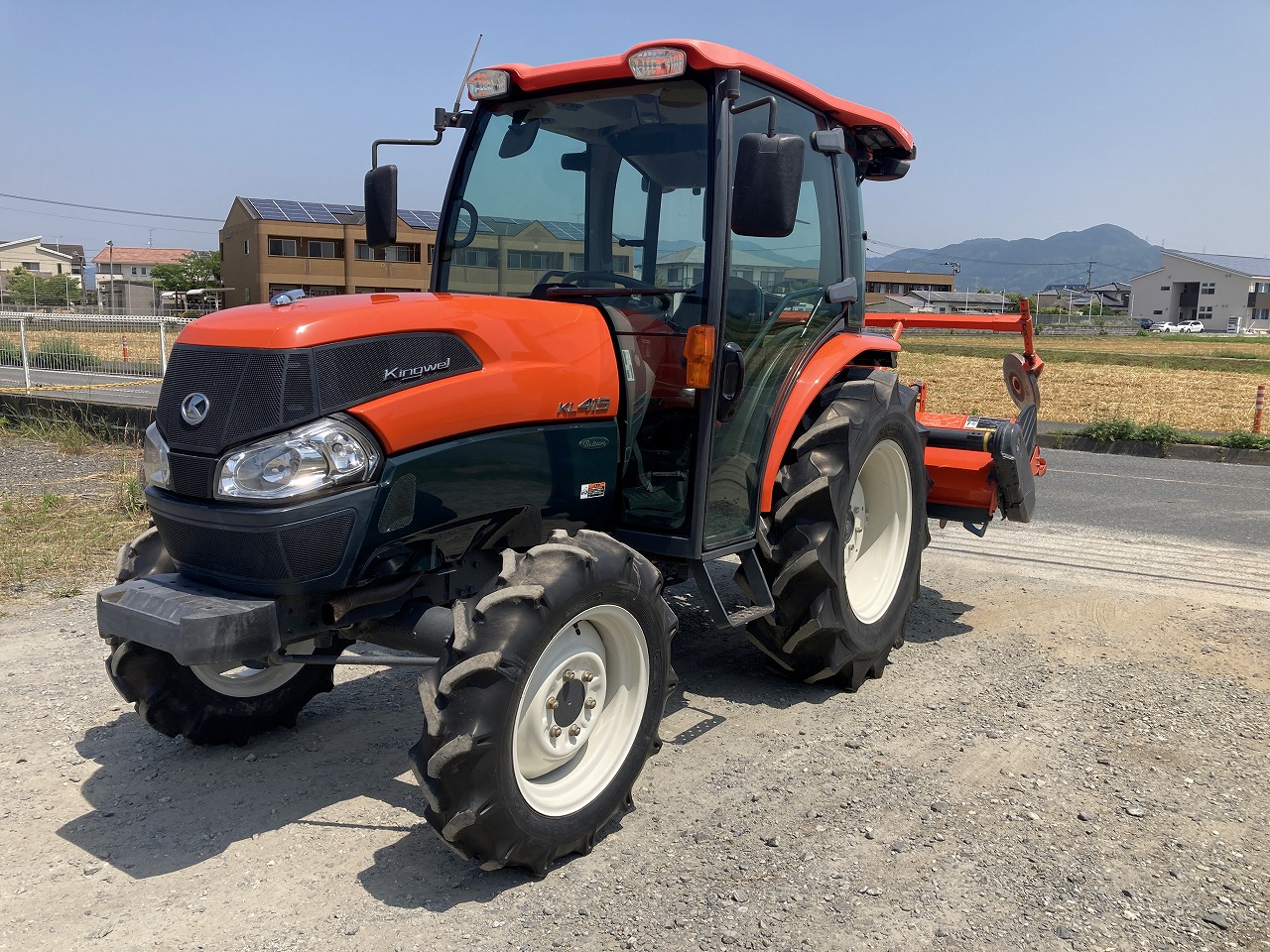

Kubota KL415
Kubota KL415 — KL Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
3395 to 3825 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
KL415standardReference
KL415Hhigh-speedReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine30.9 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power30.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and 16 reverseReference
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM762@2600Reference
Engine RPM944@2600Reference
Engine RPM1258@2600Reference
Engine RPM-944@2600Reference
Dimensions
Wheelbase188 cmReference
Weight3395 to 3825 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length344 cmReference
Width149 cmReference
Height (ROPS)231 cmReference
Height (cab)219 cmReference
ROPS Weight1539 kgReference
Cab Weight1735 kgReference
Ground clearance40 cmReference
Front tread119 cmReference
Rear tread114/143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
