Tractor · 2010Unverified

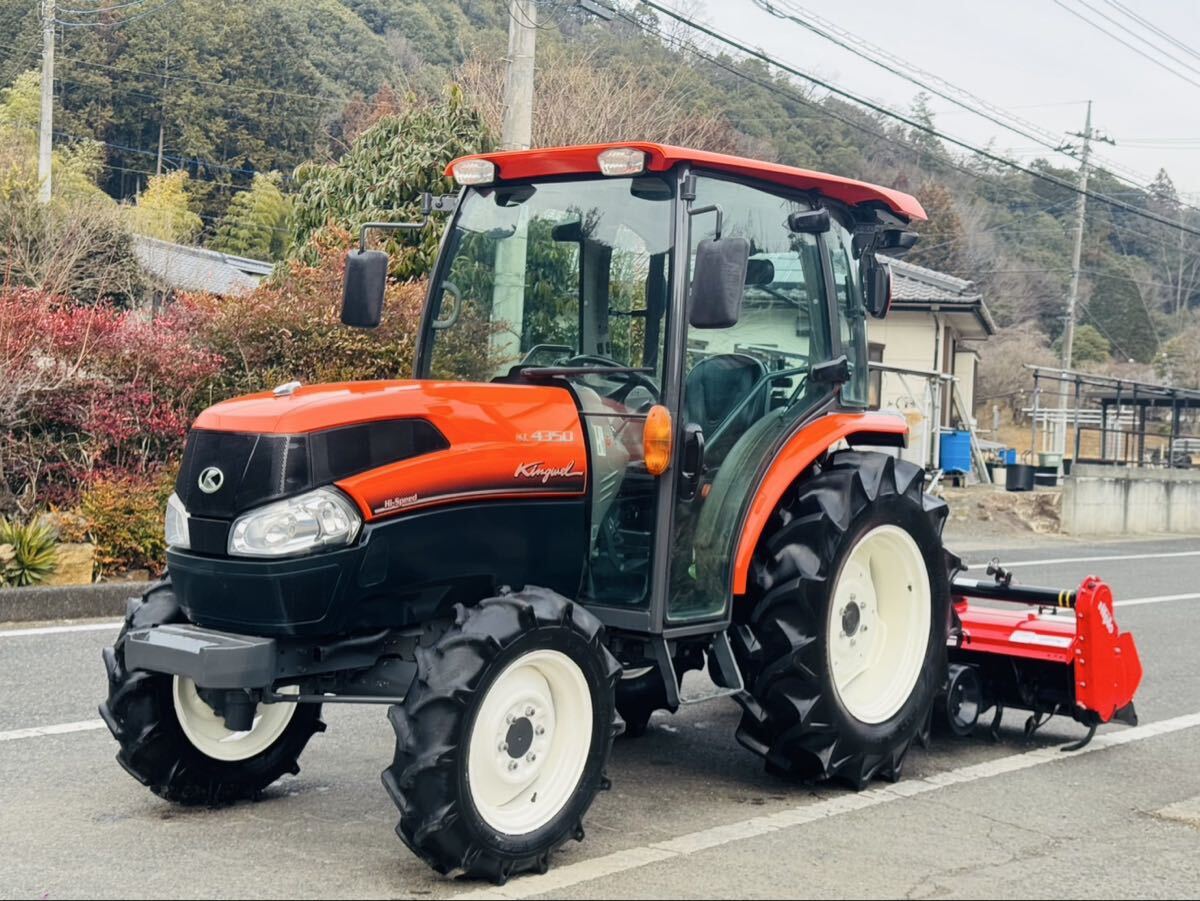

Kubota KL4350
Kubota KL4350 — KL Kingwel 50 Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
3406 to 3825 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL4350wheeledReference
KL4350-PChalf-trackReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine31.6 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power31.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shiftReference
30-speedReference
TransmissionGlideshiftReference
Typepower shiftReference
Gears24 forward and 16 reverseReference
Clutchdry discReference
Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference
Gears30 forward and 20 reverseReference
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM561@2700Reference
Engine RPM791@2700Reference
Engine RPM980@2700Reference
Engine RPM1307@2700Reference
Engine RPM-980@2700Reference
Dimensions
Wheelbase188 cmReference
Weight3406 to 3825 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length344 cmReference
Width149 cmReference
Height (ROPS)231 cmReference
Height (cab)219 cmReference
ROPS Weight1544 kgReference
Cab Weight1735 kgReference
Ground clearance40 cmReference
Front tread119 cmReference
Rear tread114/120 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
