Tractor · 2012Unverified

Kubota KL44Z

Name: Kubota KL44Z
Brand: Kubota

Kubota KL44Z — KL Kingwel Zero Series · 44 hp. Reference specifications; pending source verification.

The Kubota KL44Z is a compact tractor model, rated at 44 hp. It was produced between 2012 and 2015. The tractor features a 4-cylinder diesel liquid-cooled engine, which drives four-wheel drive through a continuously variable transmission. Its listed weight is 1814 kg, suitable for land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Max power

43.5 hp

Weight

1814 kg

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

44 hp

Recorded weight

1814 kg

Transmissions

24-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Variants

KL44ZwheeledReference

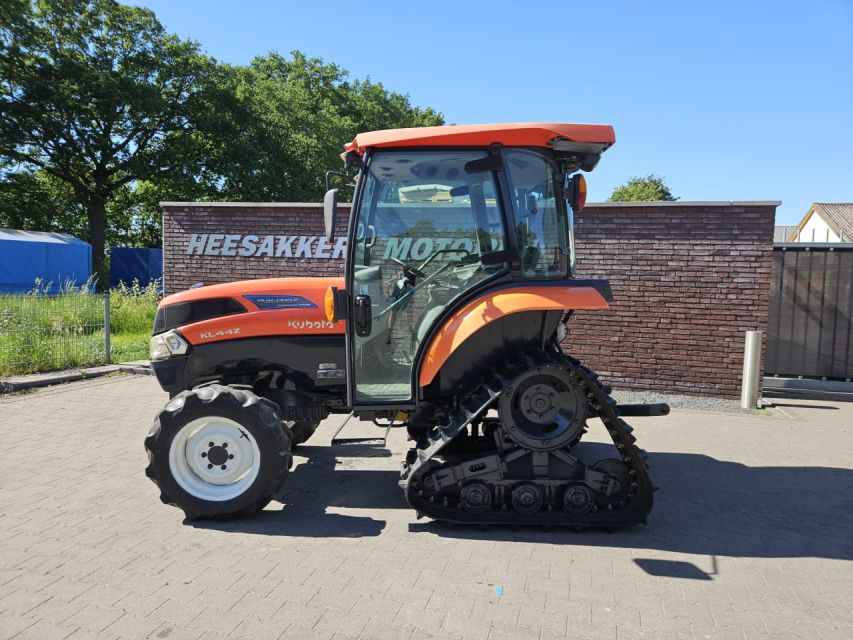

KL44Z-PChalf-trackReference

Engine

Kubota 2.2L 4-cyl dieselReference

Fuel tank39.0 LReference

Engine32.4 kWReference

Kubota V2203Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power32.4 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 rpmReference

Bore and stroke3.43x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously-varaible transmissionReference

24-speedReference

30-speedReference

TransmissionDual DriveReference

Typecontinuously-varaible transmissionReference

Gearsinfinite forward and reverse (2-range)Reference

Clutchdry discReference

Hydro-mechanical CVT.Reference

Gearsinfinite forward and reverse (3-range)Reference

Gears24 forward and 16 reverseReference

Twelve hydraulically-shift gears (eight in reverse) in two ranges.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM566@2700Reference

Engine RPM802@2700Reference

Engine RPM1006@2700Reference

Engine RPM1348@2700Reference

Engine RPM-800@2700Reference

Dimensions

Wheelbase188 cmReference

Weight1814 kgReference

Front tire8-18Reference

Rear tire13.6-26Reference

Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference

Length338 cmReference

Width154 cmReference

Height (ROPS)231 cmReference

Height (cab)228 cmReference

Ground clearance40 cmReference

Front tread119 cmReference

Rear tread120 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity134.1 ciReference

Power

Max Power43.5 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,348@2,700 rpmReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab228.1 cmReference

Height Over ROPS231.9 cmReference

Overall Length338.6 cmReference

Overall Width154.9 cmReference

Overall weight1,814.8 kgReference

Wheels & tyres

Rear Wheel Type13.6-26Reference

Rear wheel tread range120.9 cmReference

Front Wheel Type45,522Reference

Front Wheel tread range119.9 cmReference

General

Rollover protective structureTwo-post ROPSReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
