Tractor · 2012Unverified

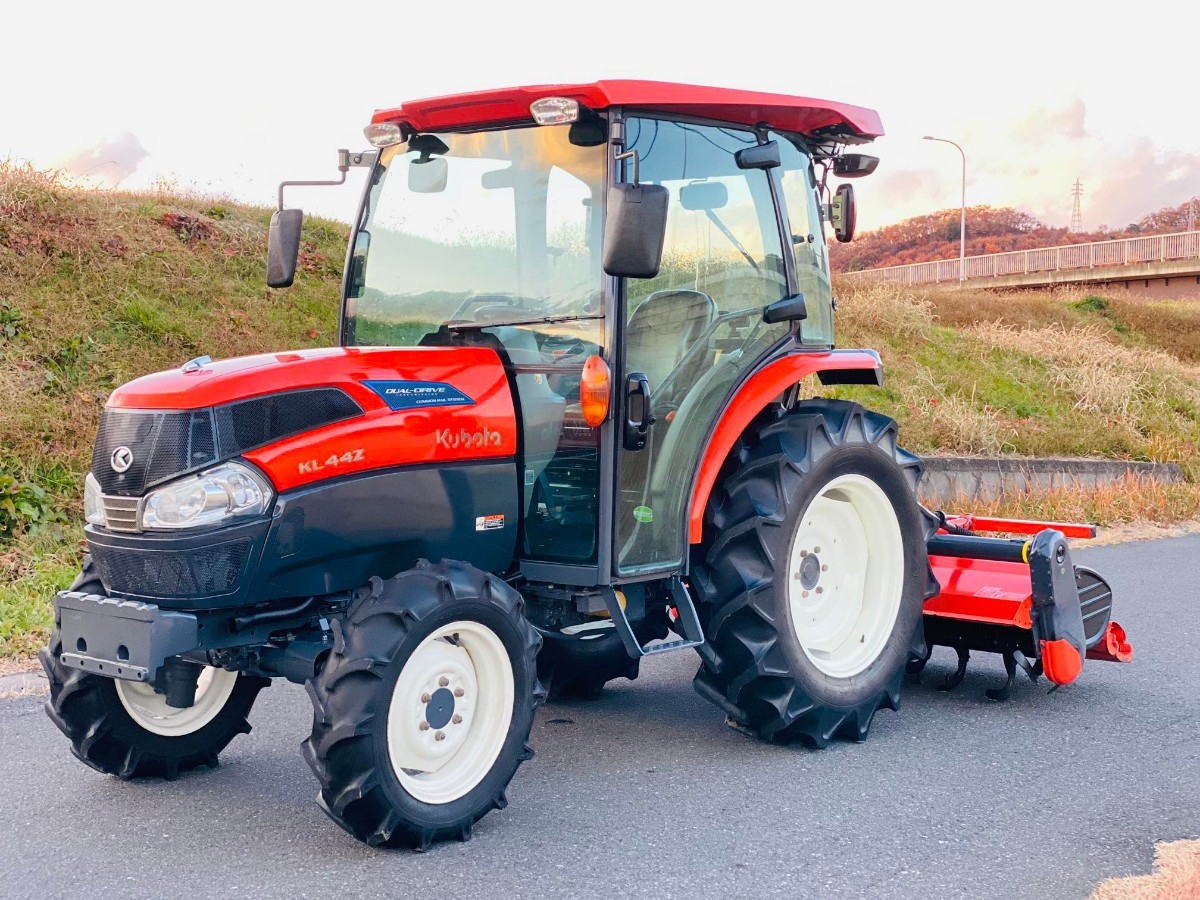

Kubota KL44Z-PC
Kubota KL44Z-PC — KL Kingwel Zero Series · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
2075 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Mechanical wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
KL44ZwheeledReference
KL44Z-PChalf-trackReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank39.0 LReference
Engine32.4 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power32.4 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-varaible transmissionReference
30-speedReference
TransmissionDual DriveReference
Typecontinuously-varaible transmissionReference
Gearsinfinite forward and reverse (3-range)Reference
Clutchdry discReference
Hydro-mechanical CVT.Reference
Gears30 forward and 20 reverseReference
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM567@2700Reference
Engine RPM803@2700Reference
Engine RPM1006@2700Reference
Engine RPM1348@2700Reference
Engine RPM-800@2700Reference
Dimensions
Wheelbase188 cmReference
Weight2075 kgReference
Front tire8-18Reference
Rear tiretracksReference
Ag front8-18Reference
Ag rear400mm trackReference
Length339 cmReference
Width167 cmReference
Height (cab)231 cmReference
Ground clearance42 cmReference
Front tread119 cmReference
Rear tread127 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
