Tractor · 1999Unverified

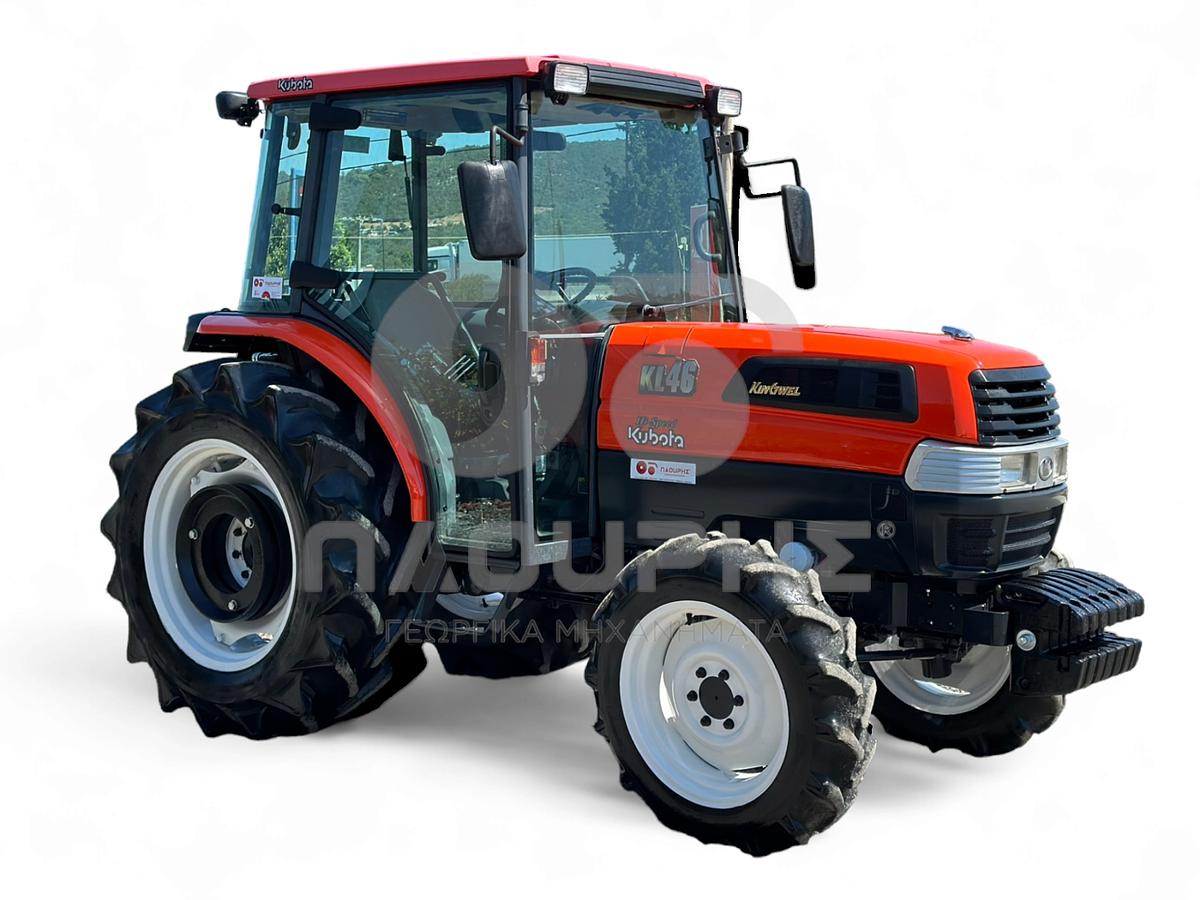

Kubota KL46 Hi-Speed

Name: Kubota KL46 Hi-Speed
Brand: Kubota

Kubota KL46 Hi-Speed — KL Series · 45 hp. Reference specifications; pending source verification.

The Kubota KL46 Hi-Speed is a tractor rated at approximately 45 hp, which places it at the lower end of its class in terms of power output. It was produced from 1999 to 2005 and features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 20-speed gearbox. The tractor's operating weight is listed as between 3538 and 3924 pounds. It is suitable for use on land of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

45 hp

Weight

3538 to 3924 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

45 hp

Recorded weight

1604 kg

Transmissions

20-speed

Production years

1999-2005

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank45.0 LReference

Engine33.8 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power33.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speedReference

30-speedReference

Gears20 forward and reverseReference

Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference

Gears30 forward and 20 reverseReference

Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM556@2600Reference

Engine RPM784@2600Reference

Engine RPM972@2600Reference

Engine RPM1295@2600Reference

Engine RPM-972@2600Reference

Dimensions

Wheelbase194 cmReference

Weight3538 to 3924 poundsReference

Front tire8.3-20Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Length353 cmReference

Width153 cmReference

Height (ROPS)236 cmReference

Height (cab)220 cmReference

ROPS Weight1604 kgReference

Cab Weight1779 kgReference

Ground clearance43 cmReference

Front tread121 cmReference

Rear tread114 to 143 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
