Tractor · 2008Unverified

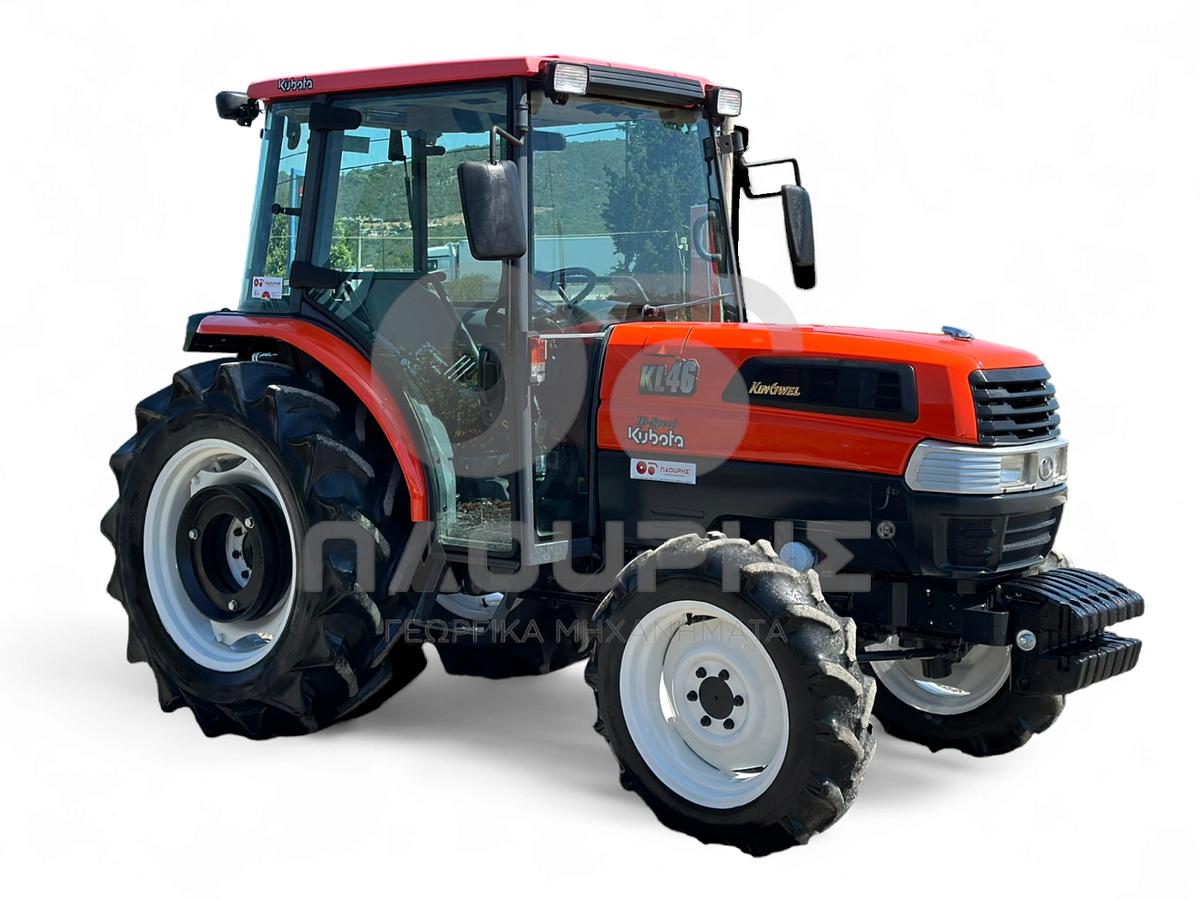

Kubota KL465 Hi-Speed
Kubota KL465 Hi-Speed — KL Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3583 to 4012 pounds
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine33.8 kWReference
Kubota V2403Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power33.8 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speedReference
Gears30 forward and 20 reverseReference
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM547@2700Reference
Engine RPM772@2700Reference
Engine RPM956@2700Reference
Engine RPM1274@2700Reference
Engine RPM-956@2700Reference
Dimensions
Wheelbase194 cmReference
Weight3583 to 4012 poundsReference
Front tire8.3-20Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length353 cmReference
Width153 cmReference
Height (ROPS)236 cmReference
Height (cab)225 cmReference
ROPS Weight1625 kgReference
Cab Weight1819 kgReference
Ground clearance43 cmReference
Front tread121 cmReference
Rear tread114 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
