Tractor · 2010Unverified

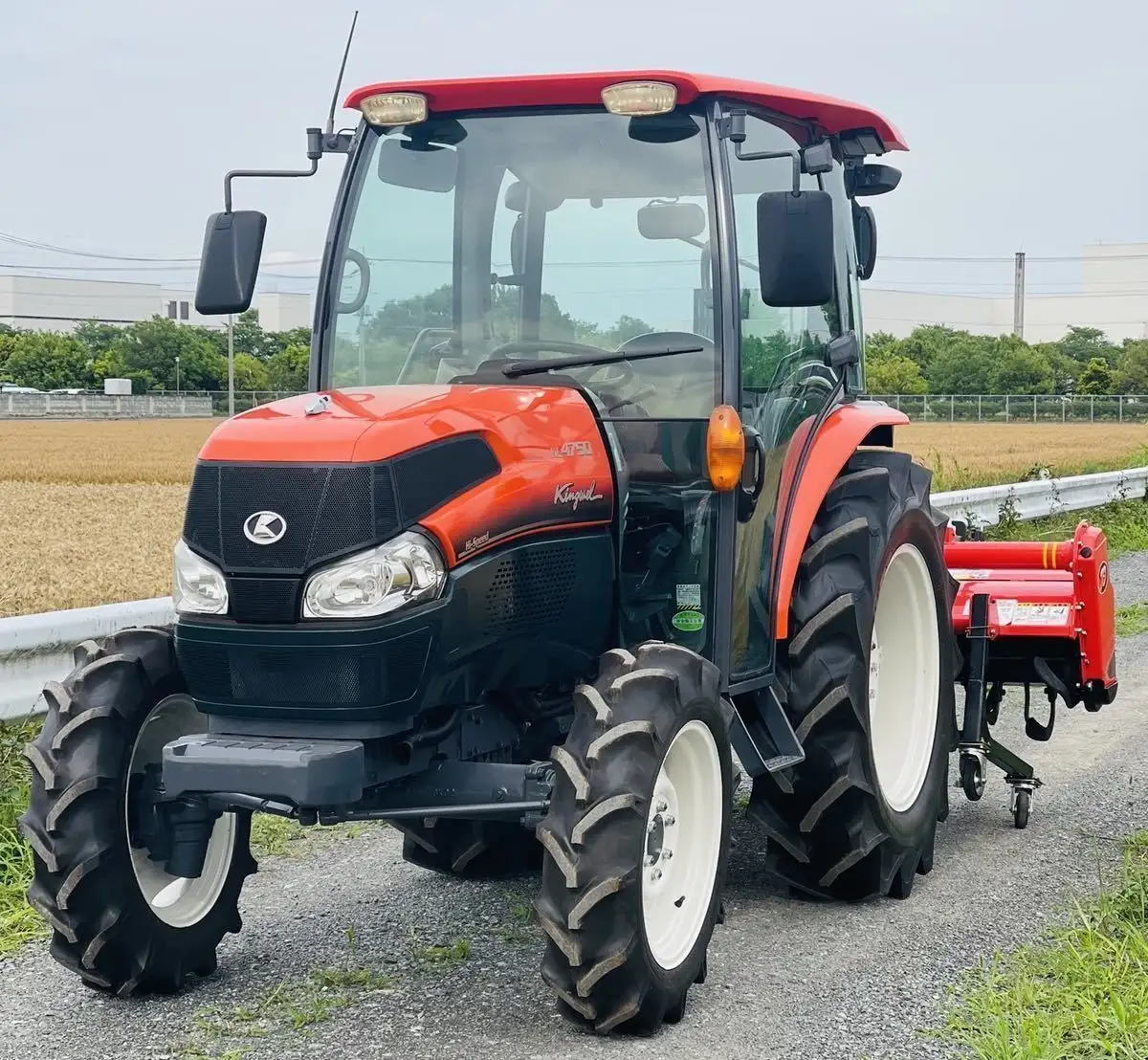

Kubota KL4750

Name: Kubota KL4750
Brand: Kubota

Kubota KL4750 — KL Kingwel 50 Series · 46 hp. Reference specifications; pending source verification.

The Kubota KL4750 is a compact tractor model with a 46 hp rating. Manufactured from 2010 to 2011, it features a 4-cylinder diesel liquid-cooled engine. This engine drives a four-wheel drive system through a 30-speed gearbox, and the tractor weighs between 3616 and 4012 pounds. It is designed for use on land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Max power

46.3 hp

Weight

3616 to 4012 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

46 hp

Recorded weight

1640 kg

Transmissions

30-speed

Production years

2010-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine34.5 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power34.5 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 RPMReference

Bore and stroke3.43x4.03 inchesReference

Cooling systemliquid-cooledReference

Transmission

30-speedReference

Gears30 forward and 20 reverseReference

Clutchdry discReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

forward and reverse options30F and 20RReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM547@2700Reference

Engine RPM772@2700Reference

Engine RPM956@2700Reference

Engine RPM1274@2700Reference

Engine RPM-956@2700Reference

Dimensions

Wheelbase194 cmReference

Weight3616 to 4012 poundsReference

Front tire8.3-20Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Length353 cmReference

Width153 cmReference

Height (ROPS)236 cmReference

Height (cab)226 cmReference

ROPS Weight1640 kgReference

Cab Weight1819 kgReference

Ground clearance43 cmReference

Front tread121 cmReference

Rear tread114 to 143 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

General

Make & ModelKubotaReference

Rollover protective structureTwo-post ROPSReference

Capacities

Capacity148.5 ciReference

Power

Max Power46.3 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,274@2,700 RPMReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab226.1 cmReference

Height Over ROPS237 cmReference

Overall Length353.6 cmReference

Overall Width153.4 cmReference

Overall weight1,640.2 kgReference

Wheels & tyres

Rear Wheel Type13.6-28Reference

Rear wheel tread range143 cmReference

Front Wheel Type8.3-20Reference

Front Wheel tread range121.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
