Tractor · 2006Unverified

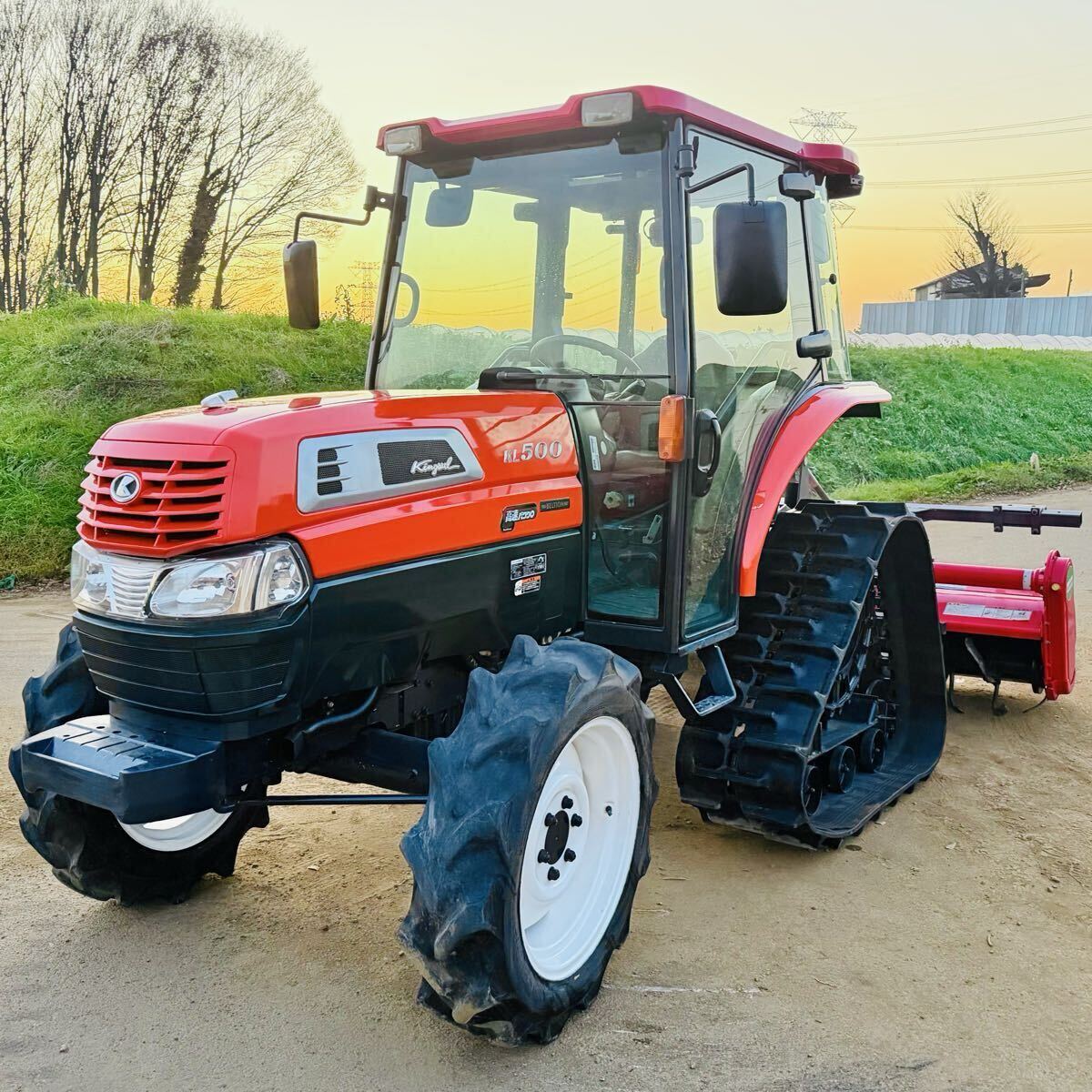

Kubota KL500 Hi-Speed

Name: Kubota KL500 Hi-Speed
Brand: Kubota

Kubota KL500 Hi-Speed — KL Series · 49 hp. Reference specifications; pending source verification.

The Kubota KL500 Hi-Speed is a compact tractor model with a rated output of 49 hp. It was manufactured from 2006 to 2007 and features a 4-cylinder diesel liquid-cooled engine. The tractor drives through a four-wheel drive system with a 20-speed gearbox, and its weight ranges from 3583 to 3968 pounds. The KL500 Hi-Speed is suited to operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

49 hp

Weight

3583 to 3968 pounds

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

49 hp

Recorded weight

1625 kg

Transmissions

20-speed

Production years

2006-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank45.0 LReference

Engine36.8 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power36.8 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speedReference

30-speedReference

Gears20 forward and reverseReference

Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).Reference

Gears30 forward and 20 reverseReference

Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM547@2700Reference

Engine RPM772@2700Reference

Engine RPM956@2700Reference

Engine RPM1274@2700Reference

Engine RPM-956@2700Reference

Dimensions

Wheelbase194 cmReference

Weight3583 to 3968 poundsReference

Front tire8.3-20Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Length353 cmReference

Width153 cmReference

Height (ROPS)236 cmReference

Height (cab)219 cmReference

ROPS Weight1625 kgReference

Cab Weight1799 kgReference

Ground clearance43 cmReference

Front tread121 cmReference

Rear tread114 to 143 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
