Tractor · 2012Unverified

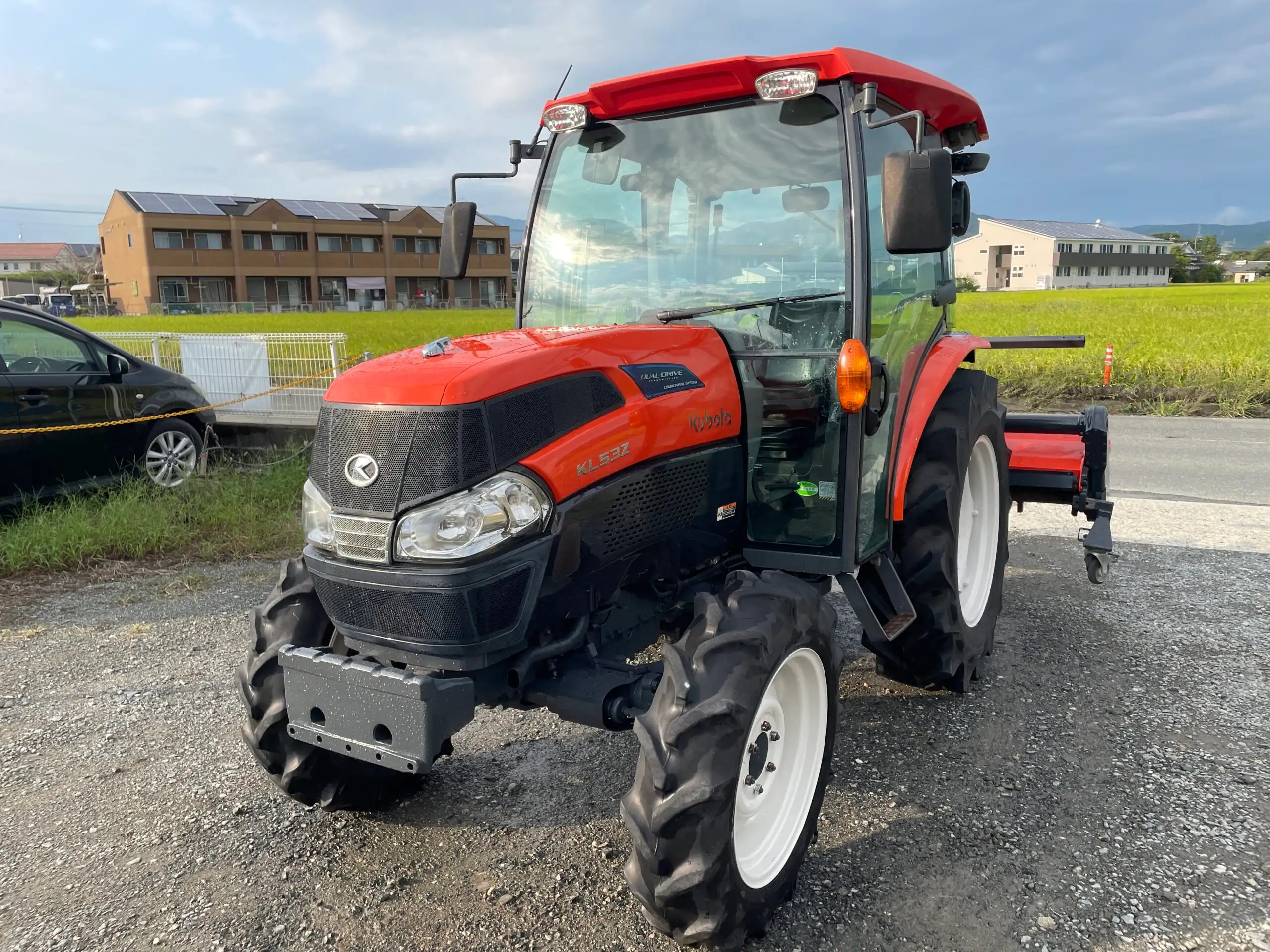

Kubota KL53Z
Kubota KL53Z — KL Kingwel Zero Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1920 kg
Hover a source tag to verify
Overview
ManufacturerKubotaReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
KL53ZwheeledReference
KL53Z-PChalf-trackReference
Engine
Kubota 2.4L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine39.0 kWReference
Kubota V2403Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power39.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously-varaible transmissionReference
30-speedReference
TransmissionDual DriveReference
Typecontinuously-varaible transmissionReference
Gearsinfinite forward and reverse (3-range)Reference
Clutchdry discReference
Hydro-mechanical CVT.Reference
Gears30 forward and 20 reverseReference
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Engine RPM766@2600Reference
Engine RPM960@2600Reference
Engine RPM1286@2600Reference
Engine RPM-763@2600Reference
Dimensions
Wheelbase194 cmReference
Weight1920 kgReference
Front tire8.3-20Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length347 cmReference
Width154 cmReference
Height (ROPS)236 cmReference
Height (cab)230 cmReference
Ground clearance43 cmReference
Front tread121 cmReference
Rear tread120 to 143 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
