Tractor · 2012Unverified

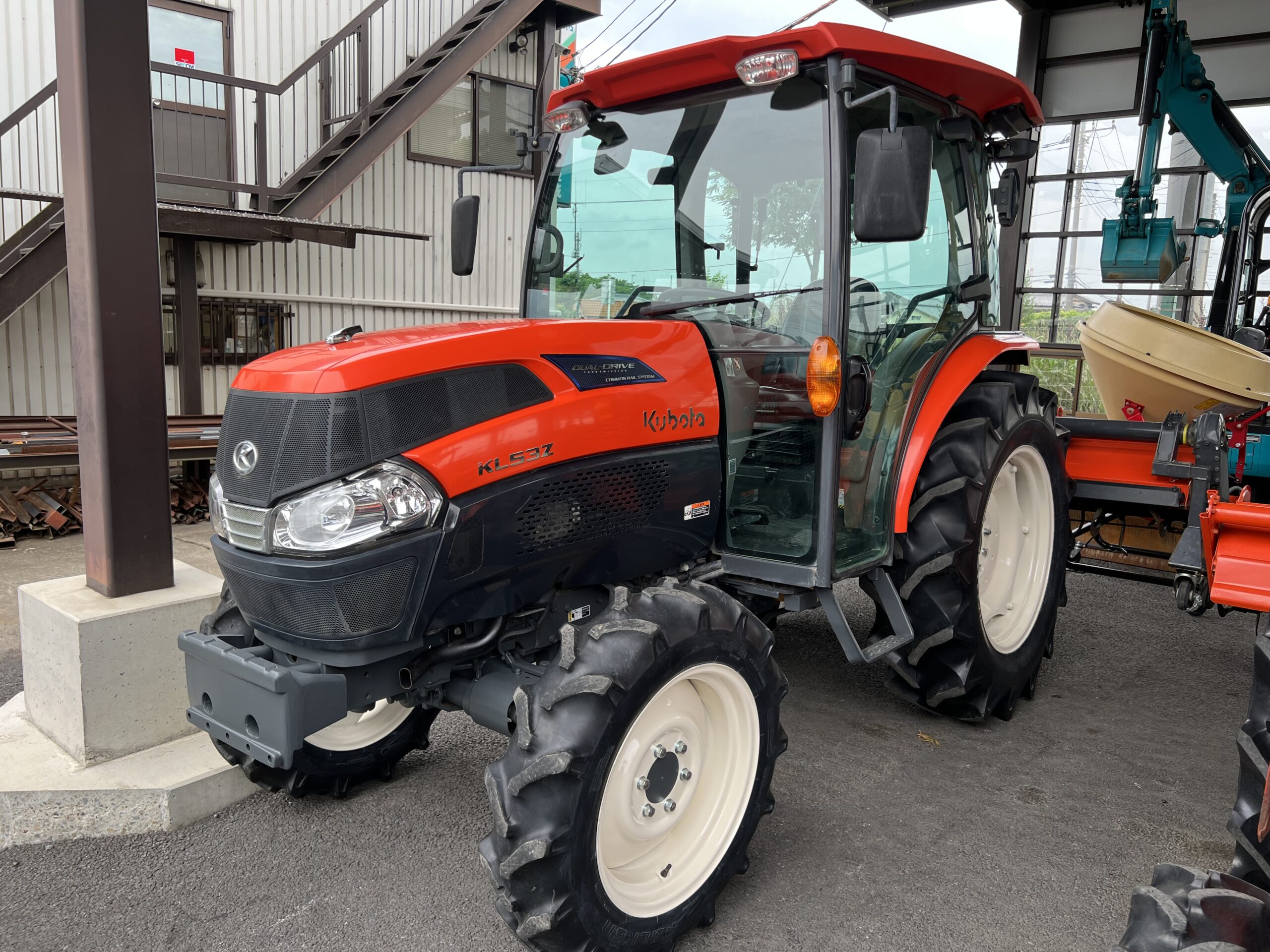

Kubota KL53Z-PC

Name: Kubota KL53Z-PC
Brand: Kubota

Kubota KL53Z-PC — KL Kingwel Zero Series · 52 hp. Reference specifications; pending source verification.

The Kubota KL53Z-PC is a compact tractor model with a rated output of 52 hp, featuring a 4-cylinder diesel liquid-cooled engine. It was manufactured from 2012 to 2015 and is equipped with a tracked undercarriage, powered by a continuously variable transmission. The listed weight of the tractor is 2145 kg and it is designed for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

2145 kg

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

52 hp

Recorded weight

2145 kg

Transmissions

30-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Half-track Crawler tractorReference

Drivehalf-trackReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

KL53ZwheeledReference

KL53Z-PChalf-trackReference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine39.0 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power39.0 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously-varaible transmissionReference

30-speedReference

TransmissionDual DriveReference

Typecontinuously-varaible transmissionReference

Gearsinfinite forward and reverse (3-range)Reference

Clutchdry discReference

Hydro-mechanical CVT.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM542@2600Reference

Engine RPM766@2600Reference

Engine RPM960@2600Reference

Engine RPM1286@2600Reference

Engine RPM-763@2600Reference

Dimensions

Wheelbase192 cmReference

Weight2145 kgReference

Front tire8.3-20Reference

Rear tiretracksReference

Ag front8.3-20Reference

Ag rear400mm trackReference

Length347 cmReference

Width167 cmReference

Height (cab)233 cmReference

Ground clearance44 cmReference

Front tread121 cmReference

Rear tread127 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
