Tractor · 2012Unverified

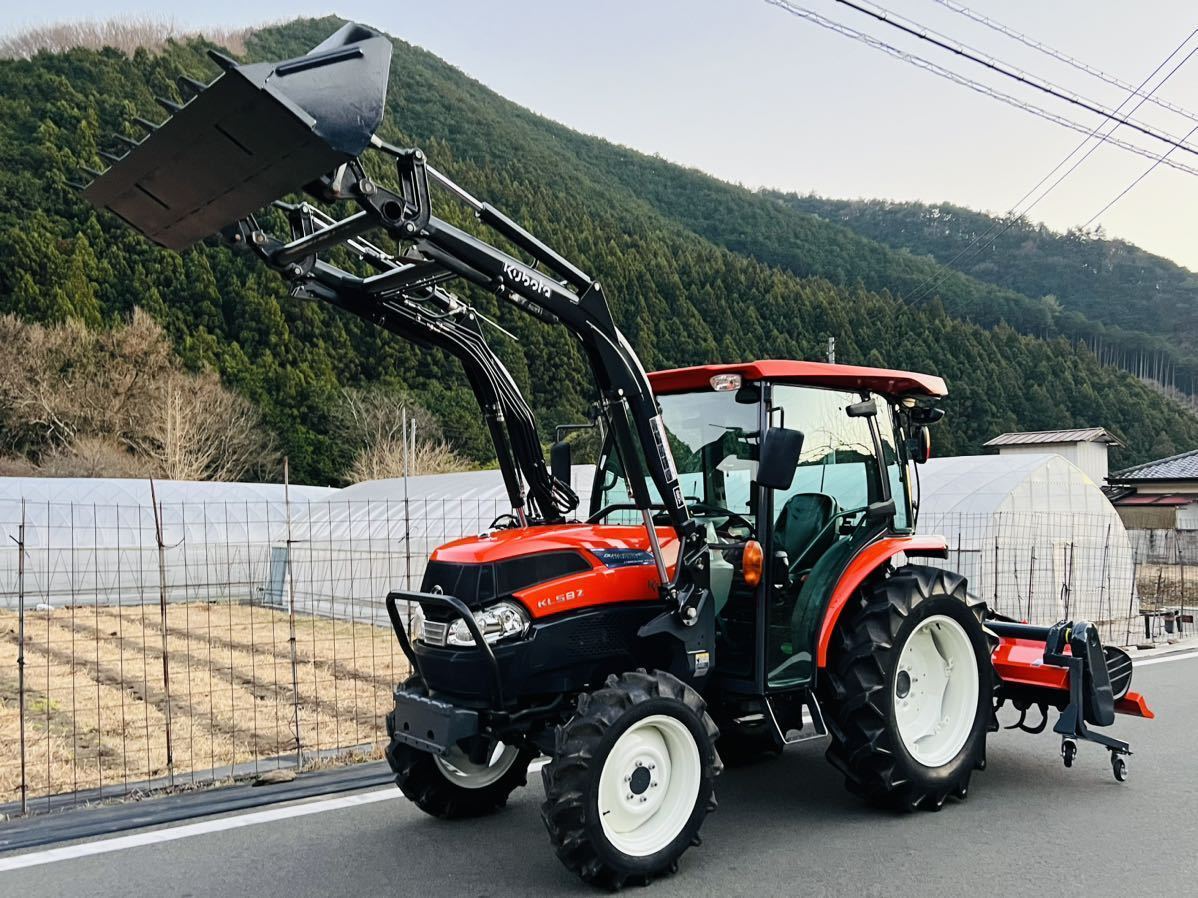

Kubota KL58Z

Name: Kubota KL58Z
Brand: Kubota

Kubota KL58Z — KL Kingwel Zero Series · 57 hp. Reference specifications; pending source verification.

The Kubota KL58Z is a tractor with a rated power of 57 hp, positioning it at the lighter end of its class. Manufactured from 2012 to 2015, the KL58Z is equipped with a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 1920 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

57 hp

Max power

57.3 hp

Weight

1920 kg

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

57 hp

Recorded weight

1920 kg

Transmissions

30-speed

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Mechanical wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

KL58ZwheeledReference

KL58Z-PChalf-trackReference

Engine

Kubota 2.4L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine42.7 kWReference

Kubota V2403Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.4 LReference

Bore/Stroke87 x 102 mmReference

Power42.7 kWReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,700 rpmReference

Bore and stroke3.43x4.03 inchesReference

Cooling systemliquid-cooledReference

Transmission

continuously-varaible transmissionReference

30-speedReference

TransmissionDual DriveReference

Typecontinuously-varaible transmissionReference

Gearsinfinite forward and reverse (3-range)Reference

Clutchdry discReference

Hydro-mechanical CVT.Reference

Gears30 forward and 20 reverseReference

Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.Reference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM561@2700Reference

Engine RPM795@2700Reference

Engine RPM997@2700Reference

Engine RPM1336@2700Reference

Engine RPM-792@2700Reference

Dimensions

Wheelbase194 cmReference

Weight1920 kgReference

Front tire8.3-20Reference

Rear tire13.6-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Length347 cmReference

Width154 cmReference

Height (cab)230 cmReference

Ground clearance43 cmReference

Front tread121 cmReference

Rear tread120 to 143 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Capacities

Capacity148.5 ciReference

Power

Max Power57.3 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed1,336@2,700 rpmReference

Steering & brakes

Brakesmechanical wet discReference

Steering typepowerReference

Hydraulics

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Height Over Cab230.1 cmReference

Overall Length347.5 cmReference

Overall Width154.9 cmReference

Overall weight1,920.1 kgReference

Wheels & tyres

Rear Wheel Type13.6-28Reference

Rear wheel tread range47.6 to 56.3 inchesReference

Front Wheel Type8.3-20Reference

Front Wheel tread range121.4 cmReference

Operator station

Cab AvailabilityCab standard with air-conditioning.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
