Tractor · 2000Unverified

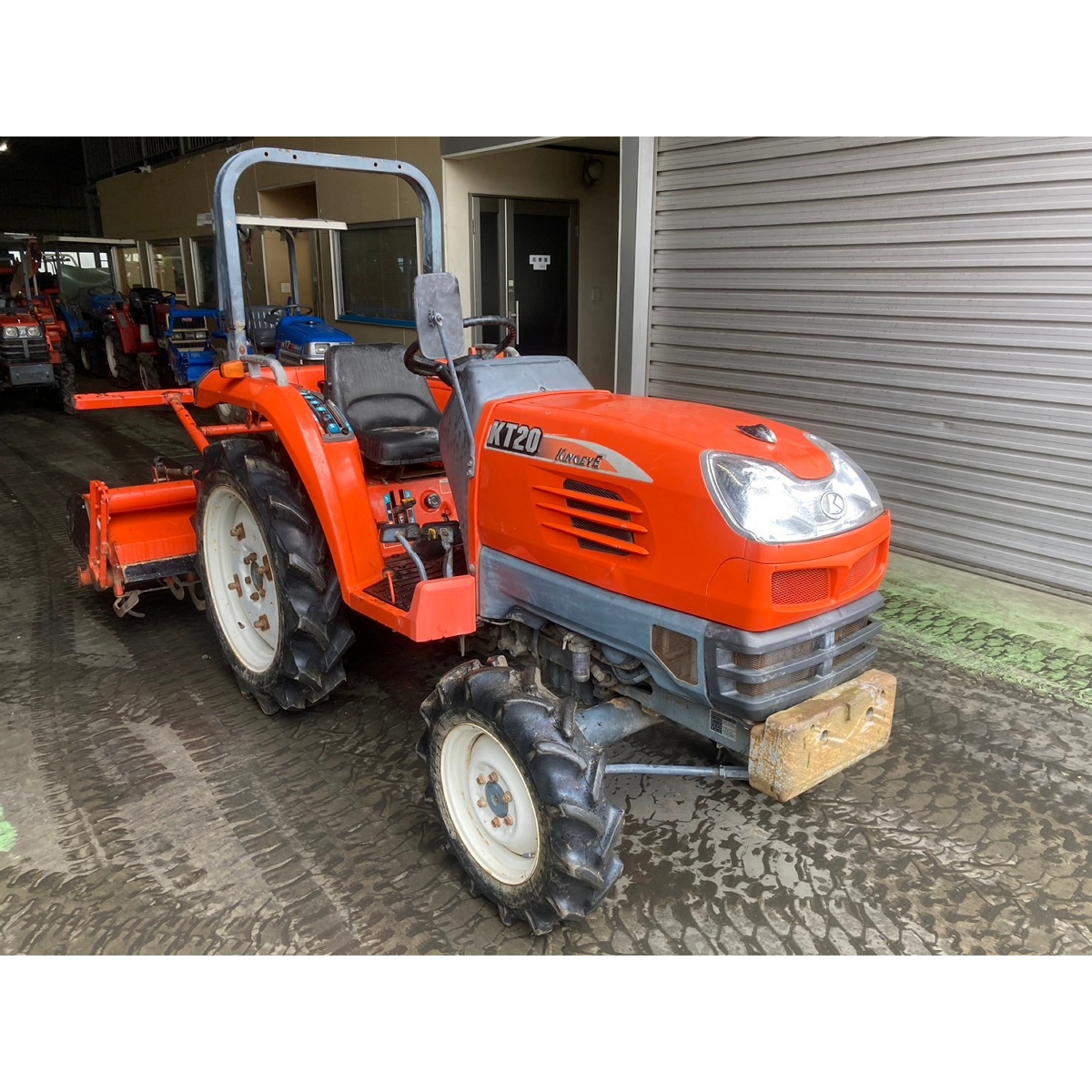

Kubota KT20

Name: Kubota KT20
Brand: Kubota

Kubota KT20 — KT Kingeye Series · 20 hp. Reference specifications; pending source verification.

The Kubota KT20 is a compact tractor model, boasting a rated output of 20 hp. It was manufactured from 2000 to 2004. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system via a powershift transmission. The model weighs between 1940 and 2315 pounds, suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1940 to 2315 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

20 hp

Transmissions

12-speed

Production years

2000-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine14.7 kWReference

Kubota D1403Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke79 x 91 mmReference

Power14.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear879 kgReference

Cab gear1030 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM533@2500Reference

Engine RPM771@2500Reference

Engine RPM1136@2500Reference

Engine RPM-649@2500Reference

Dimensions

Wheelbase145 cmReference

Weight1940 to 2315 poundsReference

Front tire6-12Reference

Rear tire8.3-22Reference

Standard tires (ag)Front: 6-12. Rear: 8.3-22Reference

Optional tires (ag)Front: 6-14. Rear: 8.3-24Reference

ROPS Length282 cmReference

Cab Length280 cmReference

ROPS Width115 cmReference

Cab Width124 cmReference

Height (ROPS)187 cmReference

Height (cab)191 cmReference

Ground clearance29 cmReference

Front tread94 cmReference

Rear tread94/106 cmReference

ROPS Glideshift899 kgReference

Cab Glideshift1050 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
