Tractor · 2000Unverified

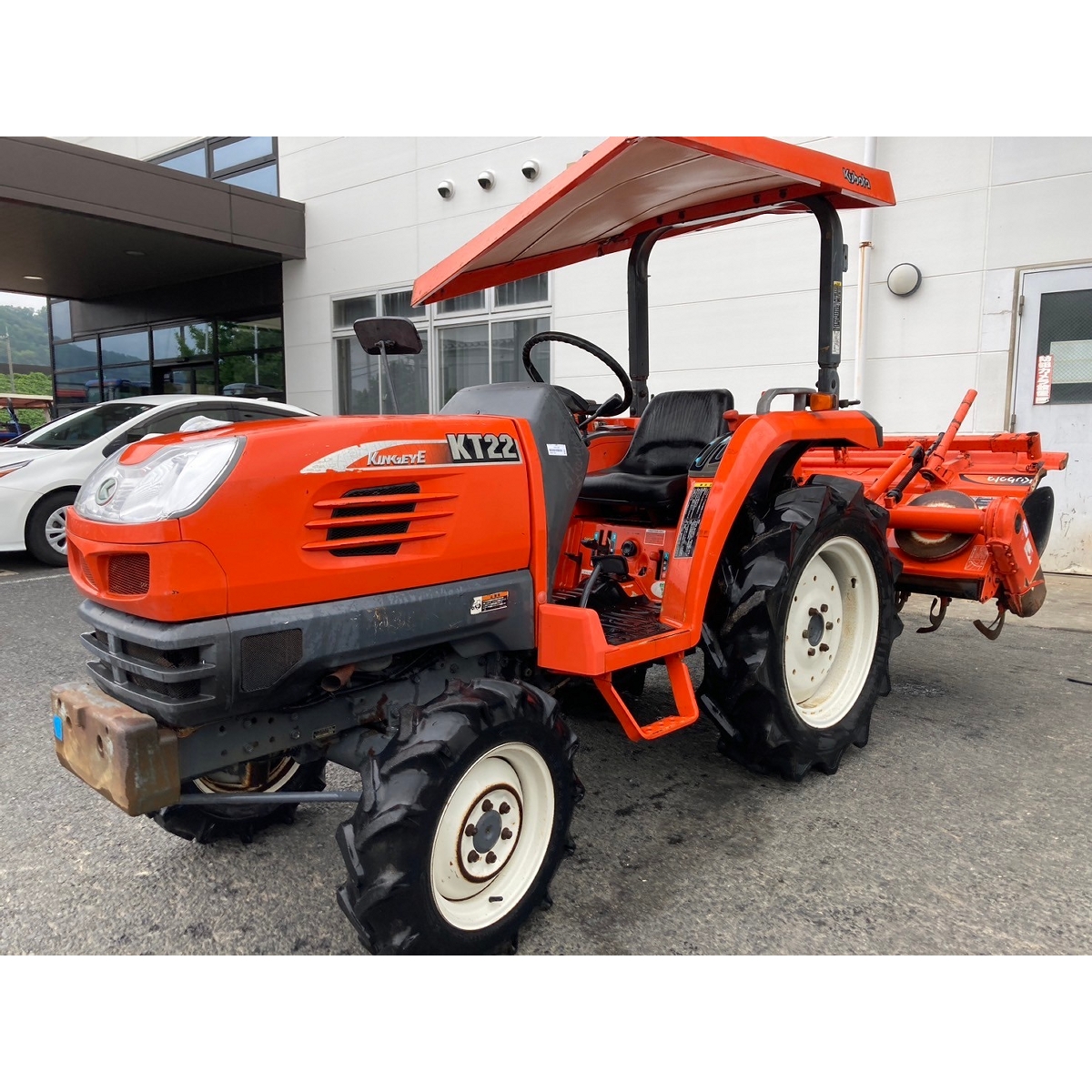

Kubota KT22

Name: Kubota KT22
Brand: Kubota

Kubota KT22 — KT Kingeye Series · 22 hp. Reference specifications; pending source verification.

The Kubota KT22 is a tractor model with an approximate engine power of 22 hp, positioning it at the lower end of its class. The model was manufactured from 2000 to 2004. It features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a powershift transmission. The operating weight of the Kubota KT22 falls within the range of 1984 to 2315 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

1984 to 2315 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

22 hp

Transmissions

12-speed

Production years

2000-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.4L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine16.2 kWReference

Kubota D1403Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke79 x 91 mmReference

Power16.2 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear899 kgReference

Cab gear1030 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM554@2600Reference

Engine RPM802@2600Reference

Engine RPM1182@2600Reference

Engine RPM-675@2600Reference

Dimensions

Wheelbase145 cmReference

Weight1984 to 2315 poundsReference

Front tire6-14Reference

Rear tire8.3-24Reference

Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

Optional tires (ag)Front: 6-14. Rear: 9.5-22Reference

Length282 cmReference

ROPS Width115 cmReference

Cab Width124 cmReference

Height (ROPS)190 cmReference

Height (cab)191 cmReference

Ground clearance32 cmReference

Front tread94 cmReference

Rear tread94/106 cmReference

ROPS Glideshift919 kgReference

Cab Glideshift1050 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
