Tractor · 2005Unverified

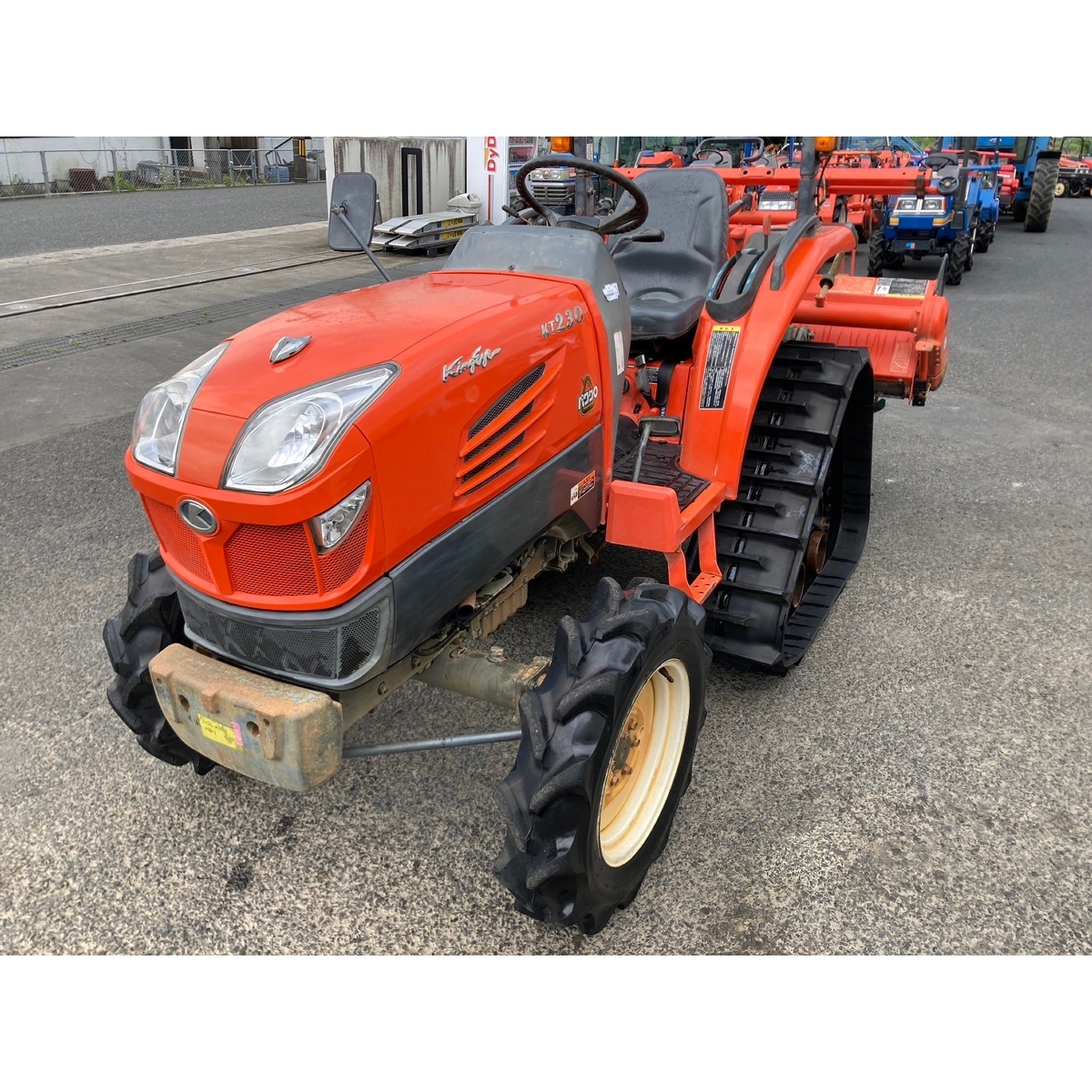

Kubota KT230

Name: Kubota KT230
Brand: Kubota

Kubota KT230 — KT Kingeye Series · 23 hp. Reference specifications; pending source verification.

The Kubota KT230 is a tractor model with an approximate output of 23 hp, categorising it as a lighter model within its class. It was manufactured from 2005 to 2008. The model features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight is listed as 2050 to 2337 pounds and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

2050 to 2337 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

23 hp

Transmissions

12-speed

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerKubotaReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Kubota 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine16.9 kWReference

Kubota D1463Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke82 x 92 mmReference

Power16.9 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

48-speed power shiftReference

ROPS gear929 kgReference

Cab gear1040 kgReference

Gears12 forward and reverseReference

Clutchdry discReference

Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.Reference

TransmissionGlideshiftReference

Typepower shiftReference

Gears48 forward and 30 reverseReference

Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM505@2500Reference

Engine RPM731@2500Reference

Engine RPM1136@2500Reference

Engine RPM-615@2500Reference

Dimensions

Wheelbase150 cmReference

Weight2050 to 2337 poundsReference

Front tire6-14Reference

Rear tire9.5-22Reference

Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference

Optional tires (ag)Front: 6-14. Rear: 9.5-24Reference

ROPS Length285 cmReference

Cab Length283 cmReference

Width118 cmReference

Height (ROPS)190 cmReference

Height (cab)193 cmReference

Ground clearance32 cmReference

Front tread97 cmReference

Rear tread94/106 cmReference

ROPS Glideshift949 kgReference

Cab Glideshift1060 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
